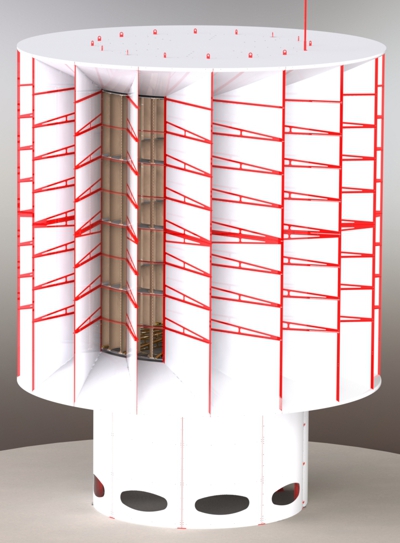

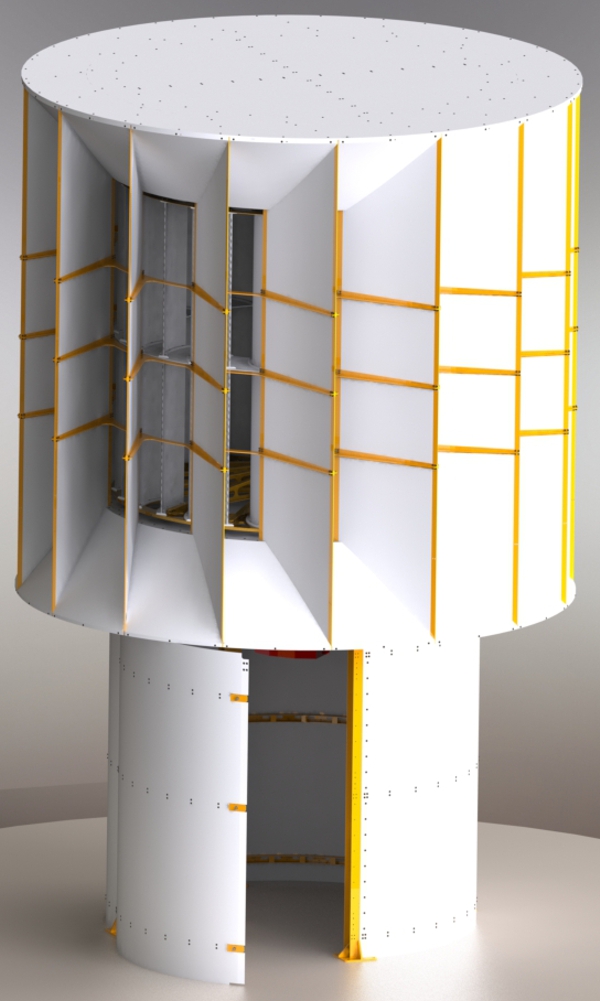

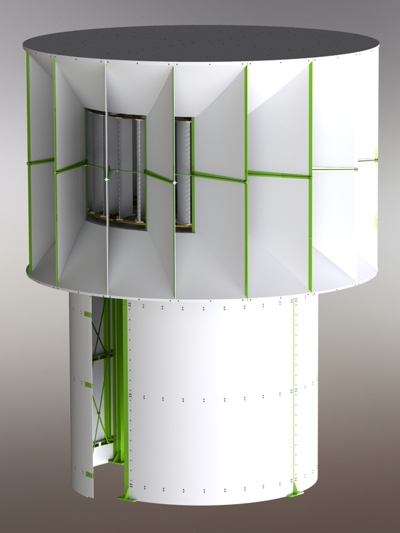

Vertical axis wind turbine "Iasos III F", for residences, small factories and hotels.
Nominal power: 5 KVA
Real electricity production:
Wind speed: m/s
1
2
3
4
5
6
7
8
9
10
11
12
Per hour: WH
111,3
342,4
648,9
1.023,5
1.460,7
1.931,6
2.459,2
3.025,0
3.628,2
4.265,8
4.921,2
5.618,1
Per day: KWH
2,67
8,22
15,57
24,56
35,06
46,36
59,02
72,60
87,08
102.40
118,11
134,83
Per month: KWH
81,2
249,9
473,7
747,1
1.066,3
1.410,1
1.795,2
2.208,2
2.648,6
3.114,0
3.592,6
4.101,2
Per year: KWH
975
2.999
5.684
8.966
12.796
16.921
21.542
26.499
31.783
37.368
43.110
49.214

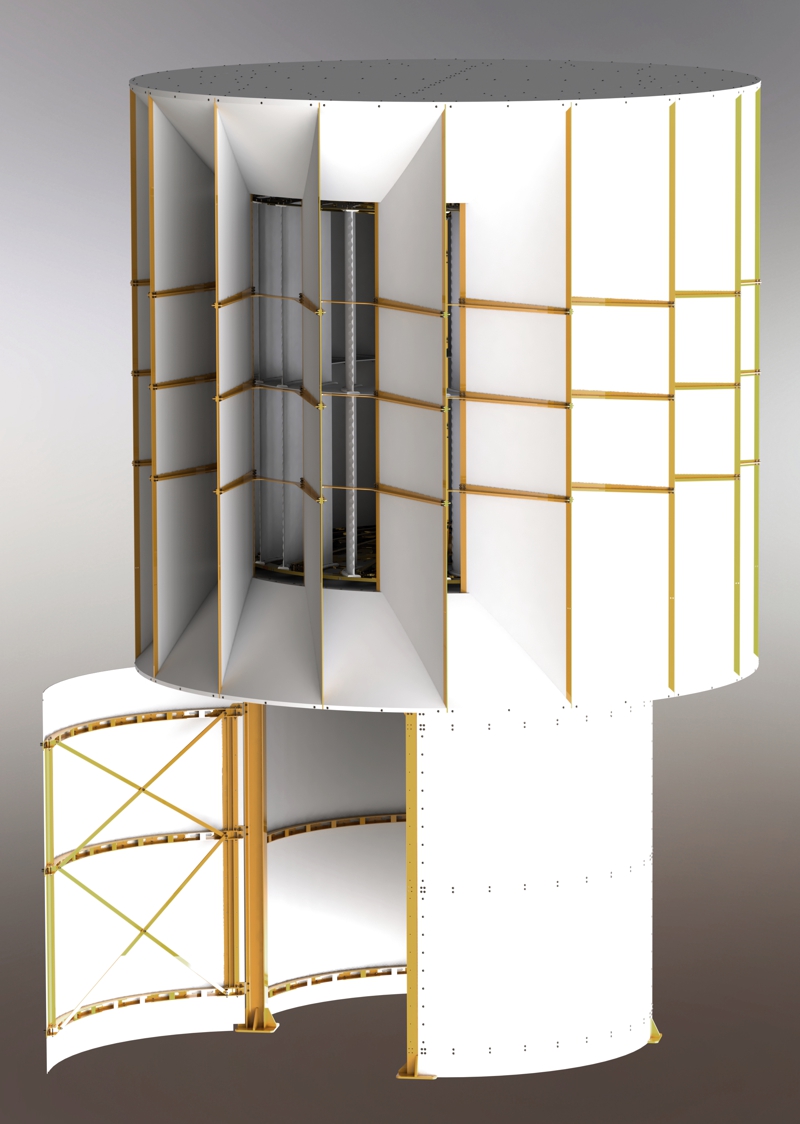

The wind generator consists of the following sub-components.
 WIND GENERATOR, WIND TURBINE IASOS VERTICAL SHAFT WIND GENERATOR
1. The base (1,8 m height).
  At the base of the wind turbine, a small round room 7 m2 is formed, in which the mechanical equipment is installed.
2. The turbine.
  The turbine blades are made either of carbon fiber or of PVC.
3. The two generators.
4. The master controller.
5. The charger controller.

Inside the base of the wind turbine, the user can place:
1. The inverters.
2. The batteries.
3. The "extra load".

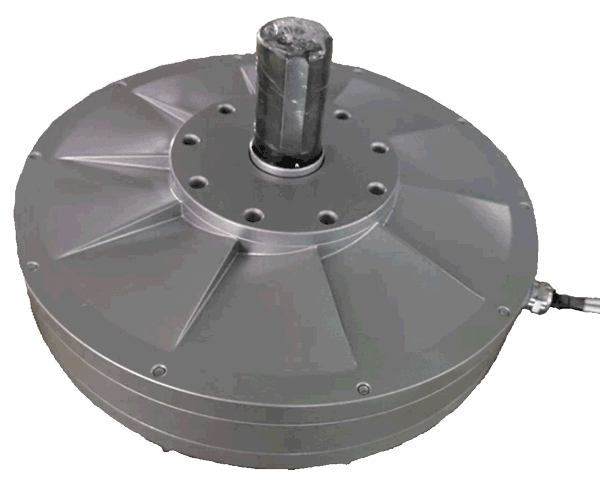

Generators:
PMG, CORELESS, 3 PHASE GENERATOR 2500 WATT FOR WIND TURBINE
PMG, CORELESS, 3 PHASE GENERATOR 2500 WATT FOR WIND TURBINE
Model:
C8004
Power:
2.500 KVA
Output voltage:
180 ACV
Speed of rotation:
300 RPM
Pole:
20
Coil:
45
Magnet:
40
Weight:
32 Kg
Three phase

Synchronous

Axial

Coreless

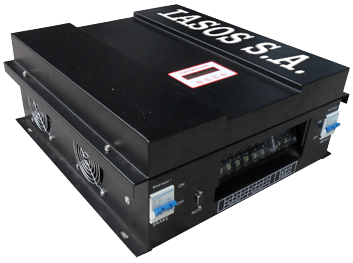

Charger controllers:
WIND GENERATOR, MPPT CHARGER CONTROLLER

Model:
C8502

Power:
2.500 watt
 Functions:
Output Voltage:
12 dcv and
 MPPT
24 dcv and
 MCU
48 dcv and
 DUMP LOAD

96 dcv
 CHARGING MODE:
Charging current:
30 A
(Bulk, absorption, float)
Input route:
2 generators
BOOST AND BUCK
HYBRID SYSTEM

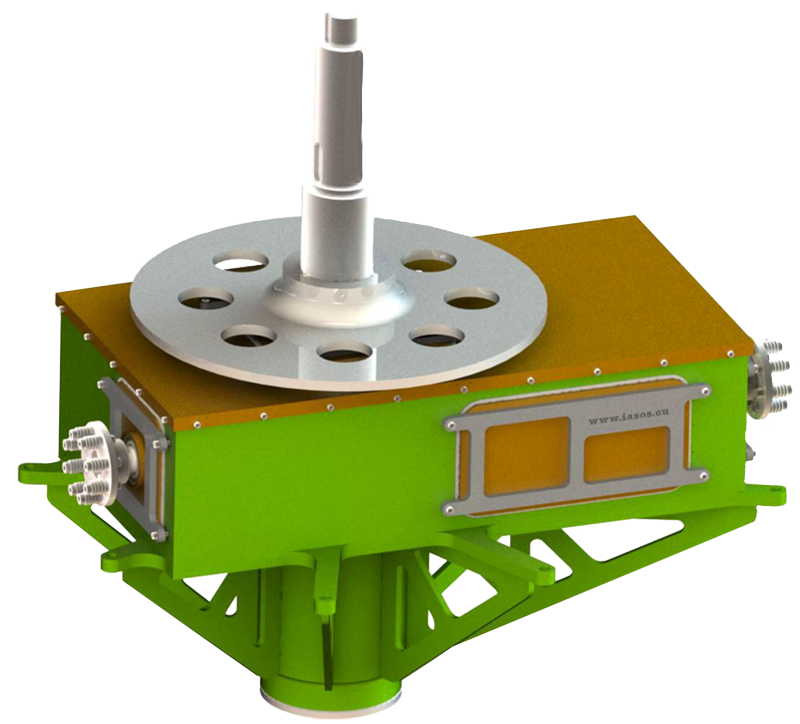

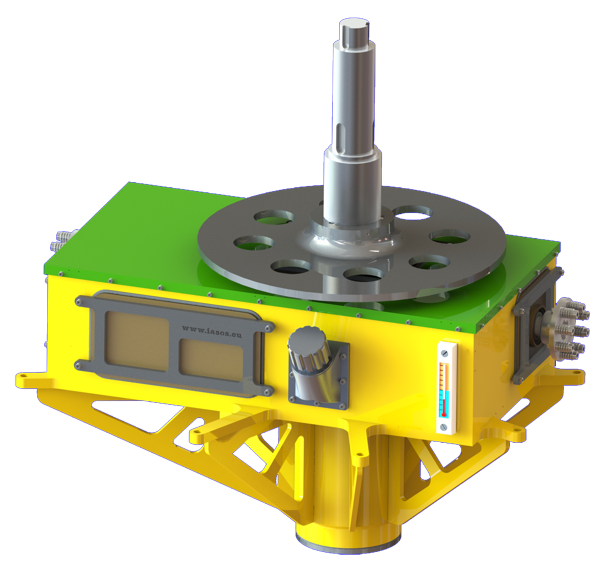

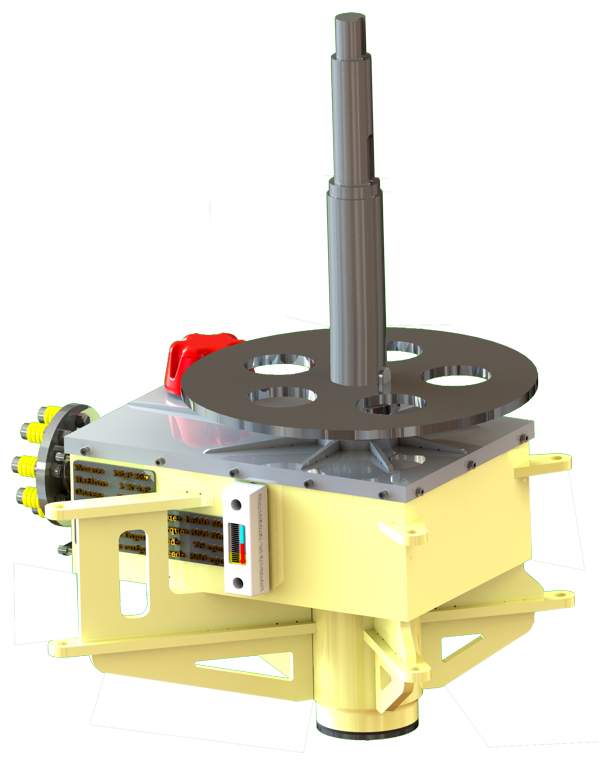

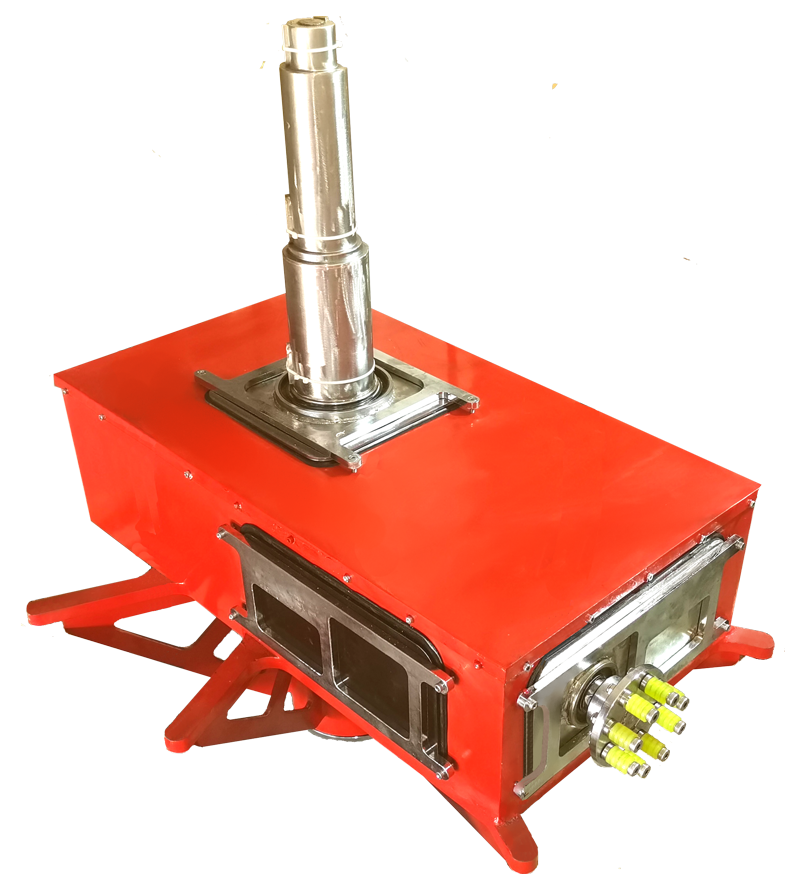

Gear box:
The power transmission box is manufactured entirely by the company IASOS S.A.
It has two stages of increasing the rotation speed. In the first stage, hypoid gears are used, while in the second stage frontal helical gears.
Lubrication is done with lubricating oil from a built-in oil pump.
The gear box has the ability to connect two generators.

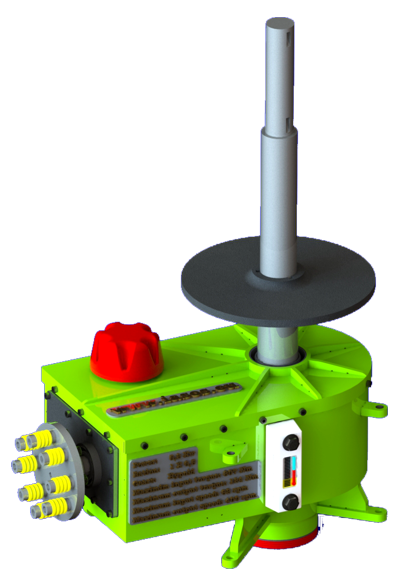

GEAR BOX INGREASER ROTATION SPEED FOR WIND TURBINE
GEAR BOX INGREASER ROTATION SPEED FOR WIND TURBINE
GEAR BOX INGREASER ROTATION SPEED FOR WIND TURBINE

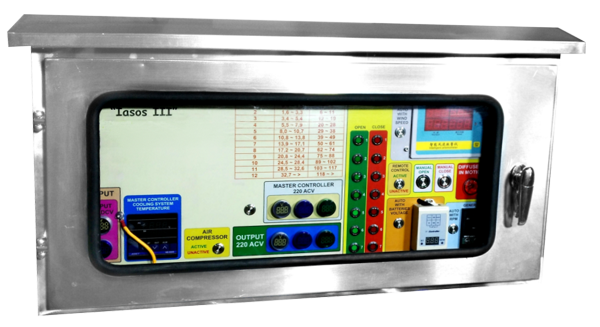

Master controller:
MASTER CONTROLLER performs the following functions:
1. It is powered by the batteries in which the wind generator stores the electricity produced (INPUT 48 DCV and INPUT 24 DCV).
2. Provides the final output current, from the wind turbine, for use (OUTPUT 220 ACV, 6 Kw).
3. Protects electronic and electrical circuits from overheating, as it has an automatic ventilation system (temperature-adjustable).
4. Contains the operation controller of the anemometer.
5. Offers digital precision indicators for each function.
It is designed to minimize electricity consumption, during operation.
AUTOMATIC MASTER CONTROLLER FOR WIND TURBINE
Electrical equipment:
Automatic change-over transfer switch:
Used so that the user can freely choose each time the source of electricity. Wind turbine or grid.
Model:
C8021
AUTOMATIC CHANGE OVER TRANSFER SWITCH 60A 2P
C8022
 AUTOMATIC CHANGE OVER TRANSFER SWITCH 60A 4P
Voltage:
220 ~ 250 Vac
220 ~ 380 Vac
Current:
63 A
120 A
    Lines:
2P
4P
