| Vertical
axis wind turbine:
"Iasos Ia". |
Nominal
power: 1,5 KVA |
| Download |
 |
||
| Technical
parameters - Specifications.
|
|||
| Wind turbine. | |||
| This
wind turbine model differs from the "Iasos I" wind turbine only
in terms of generator power. With the installation of a larger generator
and with a relatively small increase in costs, much greater efficiency
of the wind turbine is achieved. At the same time, it increases the range
of wind speeds, which the wind turbine can exploit. |
|||
| Model: | "Iasos
Ia" |

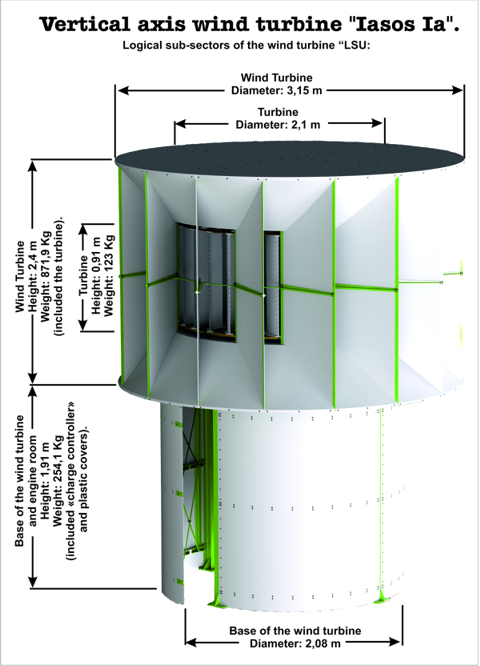

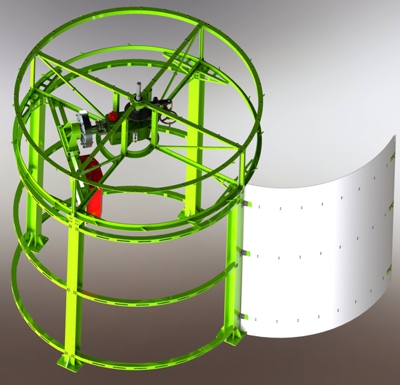

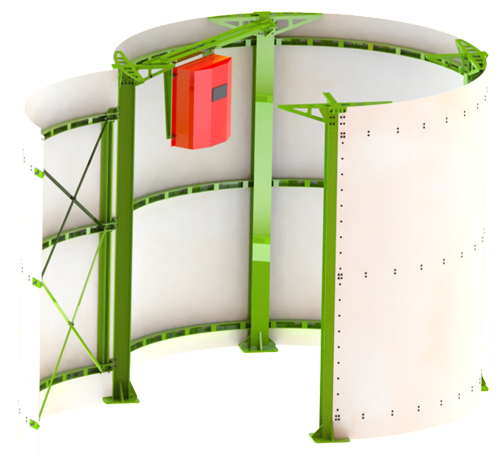

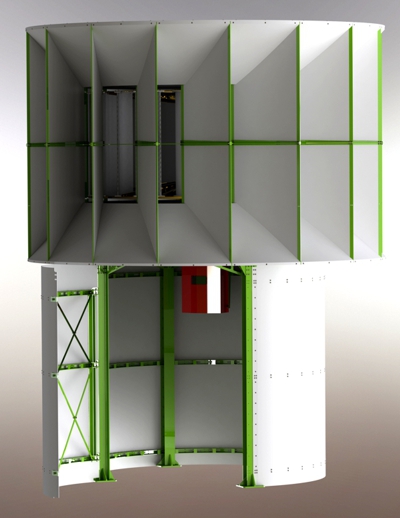

Individual
wind turbine sectors  |
|
| Nominal power: | 1,5
KVA |
||

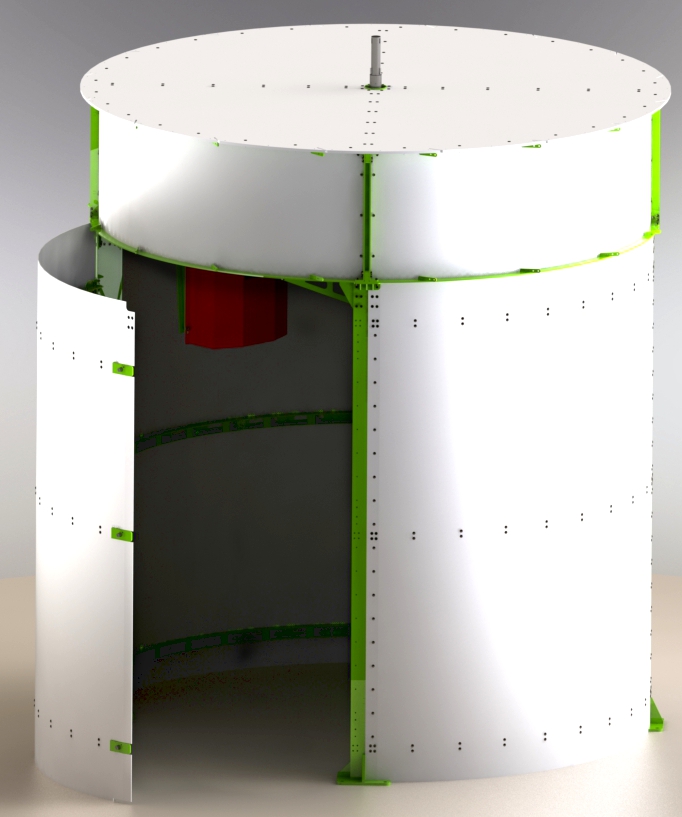

| Size
of the base of the wind turbine:
|
|||
| Diameter: |
2,08
m |
||
| Height: |
1,91
m |
||
| Weight: |
254,1
Kg |
||
| Sizes of the wind turbine: | |||
| Diameter: |
3,15
m |
||
| Height: |
2,4
m |
||
| Weight: |
878,9
Kg |
||
| Sizes of turbine: | |||
| Diameter: |
2,1
m |
||
| Height: |
0,91
m |
||
| Weight: |
123,1
Kg |
||

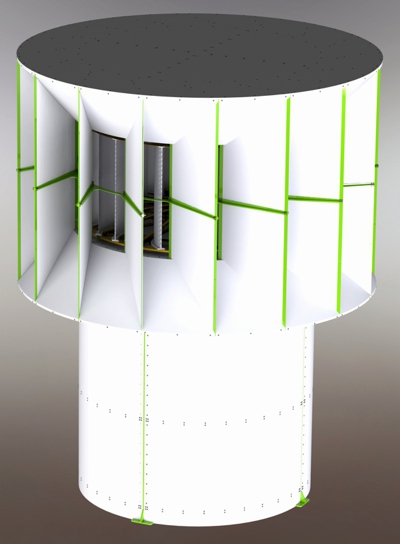

| Sizes of the wind turbine as a whole: | |||
| Diameter: |
3,15
m |
||
| Height: |
3,95
m |
||
| Weight: |
1.133
Kg |
||
| Surface,
vertical projection of the wind turbine, into the wind: |
6,426
m2 |
||
| Wind speeds at which the wind turbine can generate electricity: |  |
||
| From: |
0,9
m/s |
||
| To:
(with full load) |
14
m/s |
||
| To:
(at 80% load or less) |
14
m/s |
||
| Noise during operation: | 0
db |
||
| Vibrations during operation: | Zero |
||
| Permissible operating temperatures: | |||
| From: |
-
14 C0 |
||
| To: |
+
48 C0 |
||
| Permissible operating relative humidity: | 92% |
||
| Aerodynamic factor: (depending on wind speed) | |||
| Minimum: |
5,1 |
||
| Maximum: |
17,23 |
||
| Safety factor: | 5 |
||
| Frame construction material: | Q235
JS, DIN 1.0037 A36 ASTM |
||
| Cutting and processing method: | CNC
Laser |
||
| Cleaning method before painting: | Phosphating |
 |
|
| Dye method: | Electrostatic
paint of two consecutive layers |
||
| Maximum wind load: | 19.606
N |
||
| Maximum wind speed: | 160
Km/h |
||
| Maximum snow load: | 2
KN/m2 |
||
| Maximum permissible weight on the roof: | 230
Kg |
||
| Maximum permissible weight on the lower surface of the turbine chamber: | 186
Kg |
||
| Number of wind turbine base pylons: | 4 |
||
| Total surface area of flanges in contact with the ground: | 1.600
cm2 |
||
| Standards
under which operation was tested: |
|||
| Electromagnetic
compatibility, emissions: |
EN
61000 - 6 - 3 |
||
| Electromagnetic
compatibility, immunity: |
EN
61000 - 6 - 1 |
||
| Transport box: | |||
| Box
construction material: |
Plywooden
box |
 |
|
| Box
dimensions: |
1,22
* 2,44 * 0,7 m |
||
| Box
volume: |
2,08
m3 |
||
| Total
gross box weight, GET: |
1.282
Kg |
||
| Plastic components. | |||
| Plastic parts manufacturing material: | PVC
1,7%, 6% UV |
||
| Cutting and processing method: | CNC
router |
||
| Method of making turbine blades: | Extruder |
||
| Steel components. | |||
| Shaft construction material: | 20CrMoTi DIN 1.7147 |
||
| Fastener construction material (screws, nuts, etc.): | AISI
304 (SS) |
 |
|
| Turbine. | |||
| Number of turbine blades: | 28 |
||
| Total positive blades area: | 8,092
m2 |
||
| Total area of blades active in the wind: | 4,046
m2 |
||
| Surface, vertical projection of the turbine, into the wind: | 1,911
m2 |
||
| Maximum operational speed of rotation of the turbine: | 59,8
rpm |
||
| Maximum permissible speed of rotation of the turbine: | 100
rpm |
||
| Maximum turbine torque: | 796,3
Nm |
||
| Turbine
speed control techniques: |
|||
| Dump
load: |
Yes |
 |
|
| Turbine
stopping techniques: (braking) |
|||
| Manual
brake: |
Yes |
||
| Manual
electric brake: |
Yes |
||
| Dump
load: |
Yes |
||
| Turbine rotation direction: | Clockwise |
||
| Turbine pulleys. | |||
| Construction material of the turbine pulleys: | Q235 |
||
| Cutting and processing method: | CNC
Laser |
||

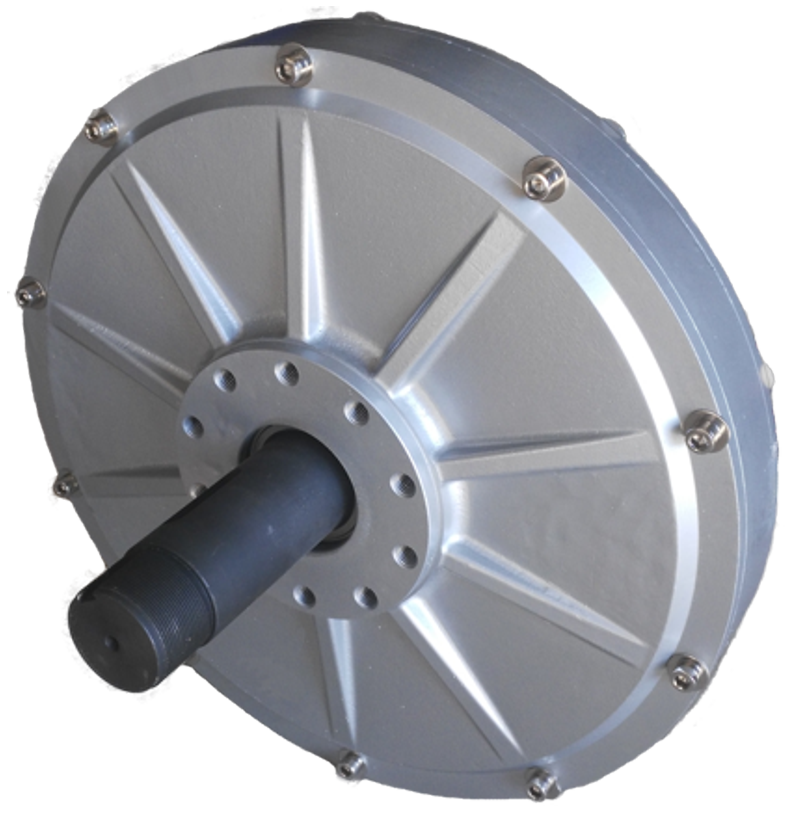

| Generator. | |||
| Number of generators installed: | 1 |
||
| Installed generator model: | Ç8015 |
||
| Type of generator installed: | Coreless
permanent magnet generator |
||
| Rated generator power: | 1,5
KVA |
||
| Rated output voltage of generator (phase voltage): | 180
ACV |
Generator.
 |
|
| Rated rotation speed: | 300
rpm |
||
| Generator power factor: (cosö) | 0,9851 |
||
| Maximum torque supplied by the generator: | 51,42
Nm |
||
| Maximum generator efficiency: | 94,8
% |
||
| Minimum generator efficiency: | 75,3
% |
||
| Connection of coils, type: | Y |
||
| Phases: | Three |
||
| Generator weight: | 32
Kg |
||

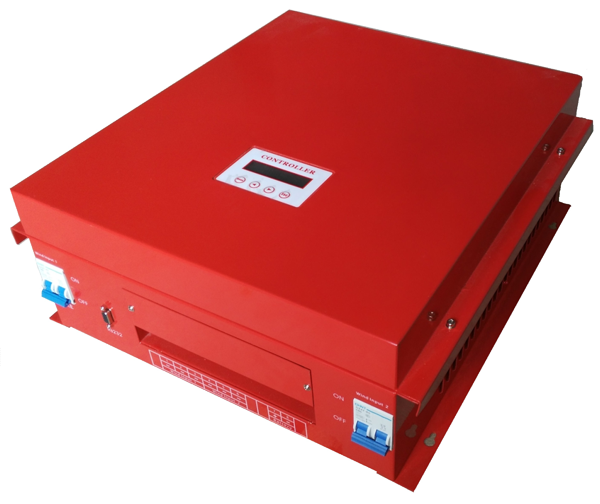

| "Charger controller". |
|
||
| Number of "charger controllers" installed: | 1 |
||
| Model of "charger controller": | H8520 |
||
| Rated power of "charger controller": | 2
Kw |
||
| Rated output voltage of "charger controller": | 48
DCV |
||
| Types and number of inputs: | |||
| Three
phase AC: |
2 |
||
| Battery charging methods: | |||
| Bulk: |
Yes |
||
| Absorption: |
Yes |
 |
|
| Buck: |
Yes |
||
| Functions of "charger controller": | |||
| MPPT
(Maximum Power Point Tracking) |
Yes |
||
| MCU |
Yes |
||
| DUMP
LOAD |
2
Kw |
||
| BOOST |
Yes |
||
| BUCK |
Yes |
||
| HYBRID
SYSTEM |
Yes |
||

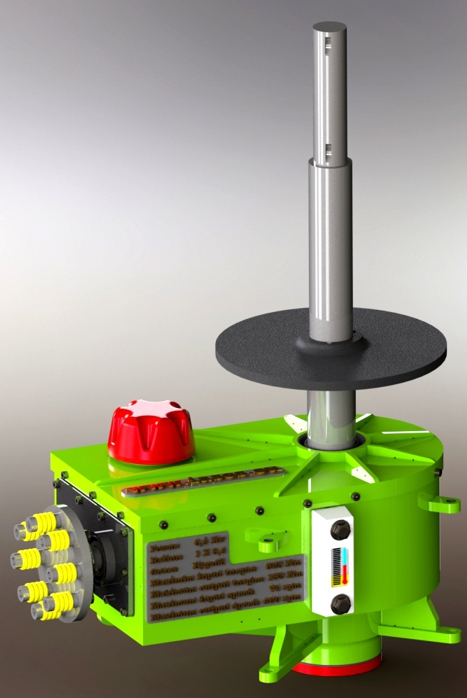

| "Gear box". | |||
| Power transmission installed: | Gear
box |
||
| Model: |
G10054 |
||
| Power
transmission ratio: |
1
X 5,4 |
||
| Rated
power: |
6,4
Kw |
||
 |
 |
 |
