Vertical axis wind turbine: "Iasos Ia".
Nominal power: 1,5 KVA
Download
General instructions
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Warranty
Instructions for choosing the installation point
Declaration of conformity
Instructions for anchoring at the final installation point
Video for "wind rose"
Assembly and installation instructions
Video how can use the software
Uses of the wind turbine
Video for "Iasos I"
Connection to consumption and other energy sources
Video how to choose a model
Power data and charts
Video how to use
Equipment included in the wind turbine
Equipment NOT included in the wind turbine
Software to calculate all parameters of the wind turbine
First
Back
Wind Turbine Parts Catalog
Power data and charts.

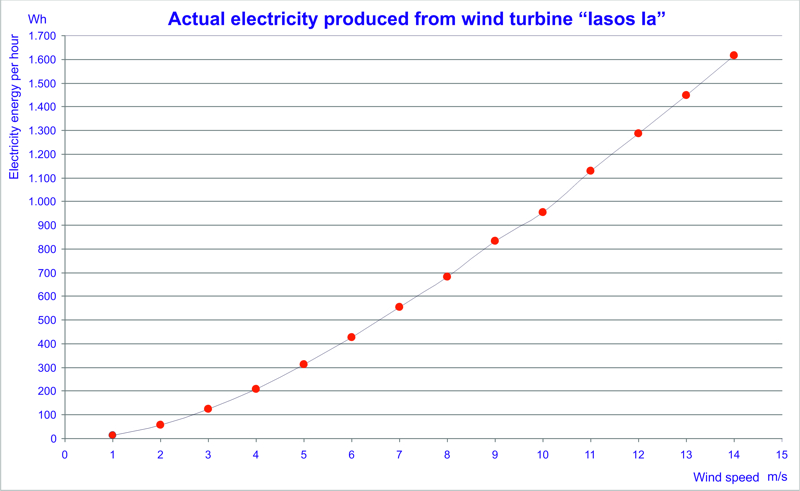

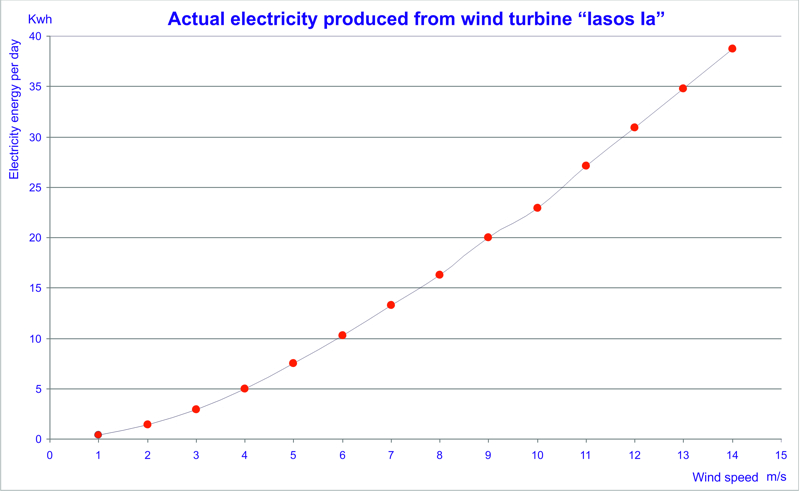

Actual electricity produced "Iasos Ia"
Wind: m/s
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Per hour: Wh
14,8
56,7
122,9
209,5
311,8
427,9
554,8
680,4
831,6
953,1
1.129,9
1.286,5
1.448,5
1.614,6
Per day: Kwh
0,4
1,4
2,9
5,0
7,5
10,3
13,3
16,3
20,0
22,9
27,1
30,9
34,8
38,7
Per month: Kwh
10,8
41,4
89,7
152,7
227,6
312,4
405,0
496,7
607,0
695,8
824,9
939,2
1.057,4
1.178,7
Per year: Kwh
130,0
496,7
1.076,2
1.833,0
2.731,8
3.748,8
4.860,5
5.960,3
7.284,8
8.349,2
9,898,4
11.270,2
12.689,3
14.143,9

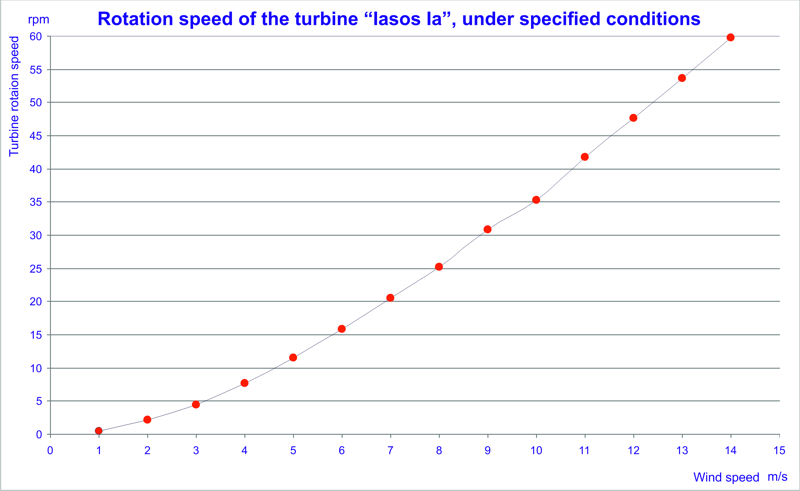

Average rotational speed of the turbine, under the specified conditions:
rpm
0,5
2,1
4,5
7,7
11,5
15,8
20,5
25,2
30,8
35,3
41,8
47,6
53,6
59,8

Nominal turbine torque, with the specific wind speed:
Nm
3,9
15,6
36,5
64,6
100,0
143,3
195,4
256,7
327,0
405,7
491,9
585,0
685,6
796,5

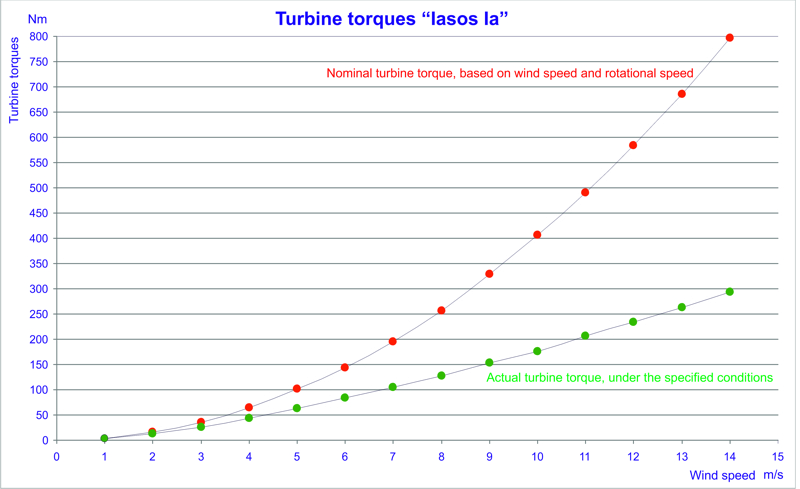

Nominal turbine torque, based on wind speed and rotational speed:
Nm
3,9
15,9
36,0
64,4
101,0
143,3
194,6
255,7
328,6
405,7
491,1
584,6
686,2
796,3

Actual turbine torque, under the specified conditions:
Nm
3,5

12,94
26,60
43,27
62,34
83,16
105,32
127,18
153,75
175,30
206,68
234,57
263,26
292,99

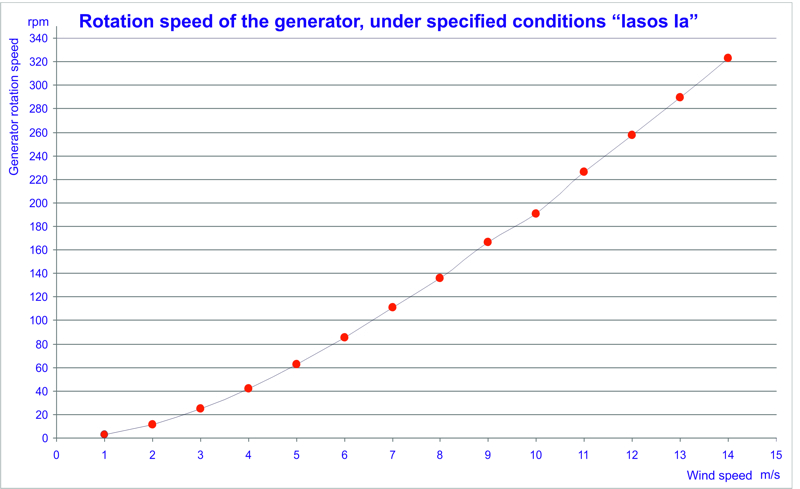

Average rotation speed of the generator, under the specified conditions:
rpm
3,0
11,3
24,6
41,8
62,4
85,6
111,0
136,0
166,3
190,6
226,0
257,3
289,7
322,9

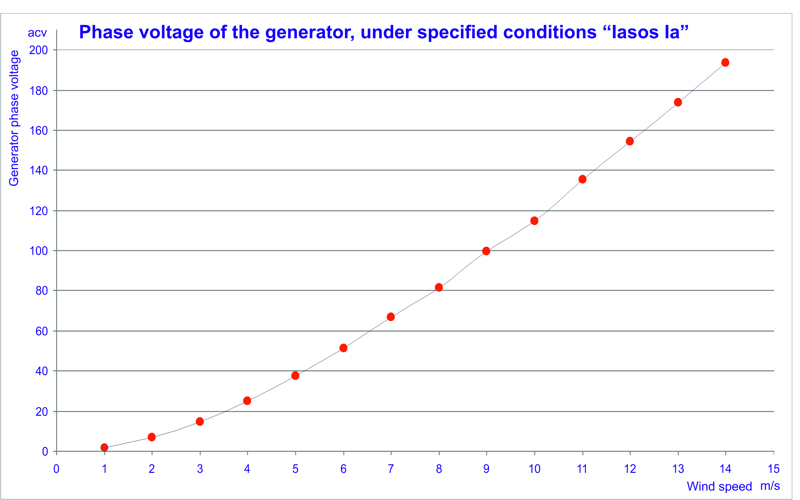

Phase voltage of the generator, under the specified conditions:
acv
1,8
6,8
14,7
25,1
37,4
51,3
66,7
81,6
99,8
114,8
135,6
154,4
173,8
193,7

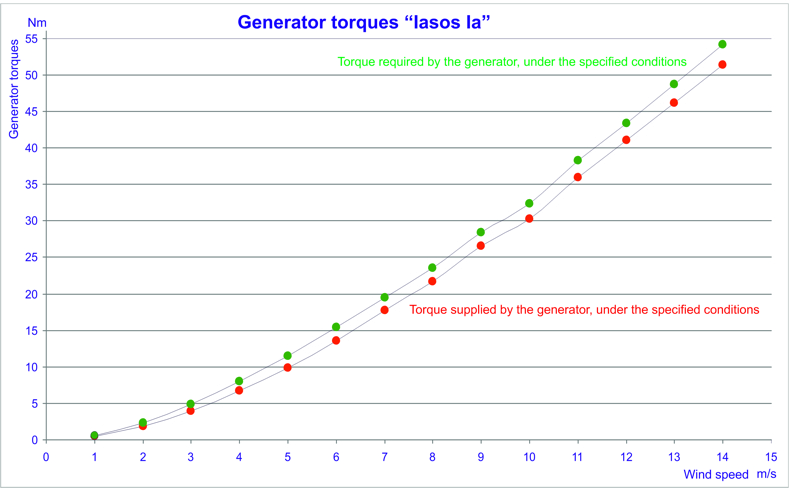

Torque supplied by the generator, under the specified conditions:
Nm
0,5
1,8
3,9
6,7
9,9
13,6
17,7
21,7
26,5
30,3
36,0
41,0
46,1
51,4

Torque required by the generator, under the specified conditions:
Nm
0,6
2,3
4,9
8,0
11,5
15,4
19,5
23,5
28,4
32,4
38,23
43,4
48,7
54,2

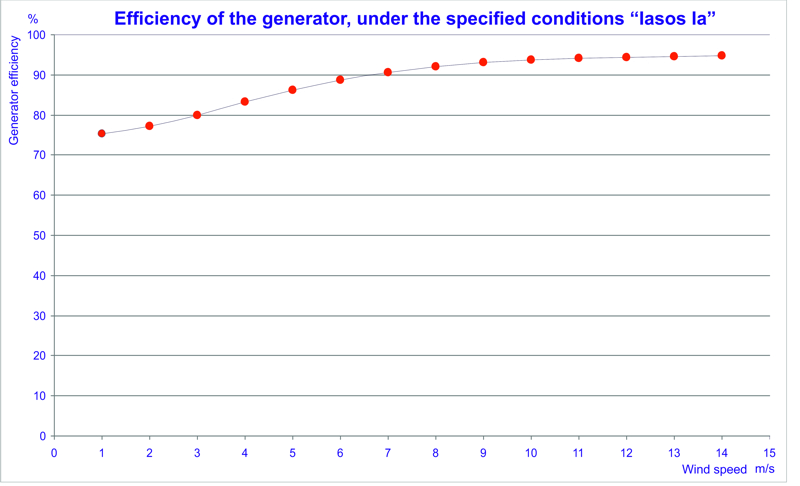

Efficiency of the generator, under the specified conditions:
%
75,3
77,3
80,0
83,2
86,1
88,7
90,6
92,0
93,1
93,7
94,1
94,4
94,6
94,8

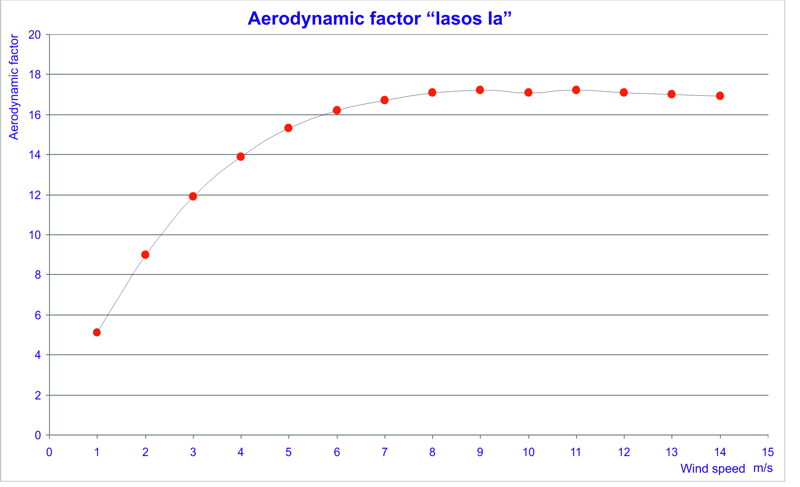

Aerodynamic factor:
%
5,1
9,0
11,9
13,9
15,3
16,2
16,7
16,6
17,23
16,4
17,2
17,1
17,0
16,9

Ideal power transmission ratio:
1 ×
1,9
2,3
2,9
3,1
3,8
4,0
5,0
5,1
5,1
5,2
5,9
6,1
6,0
6,2

Actual power transmission ratio:
1 ×
5,4
5,4
5,4
5,4
5,4
5,4
5,4
5,4
5,4
5,4
5,4
5,4
5,4
5,4
