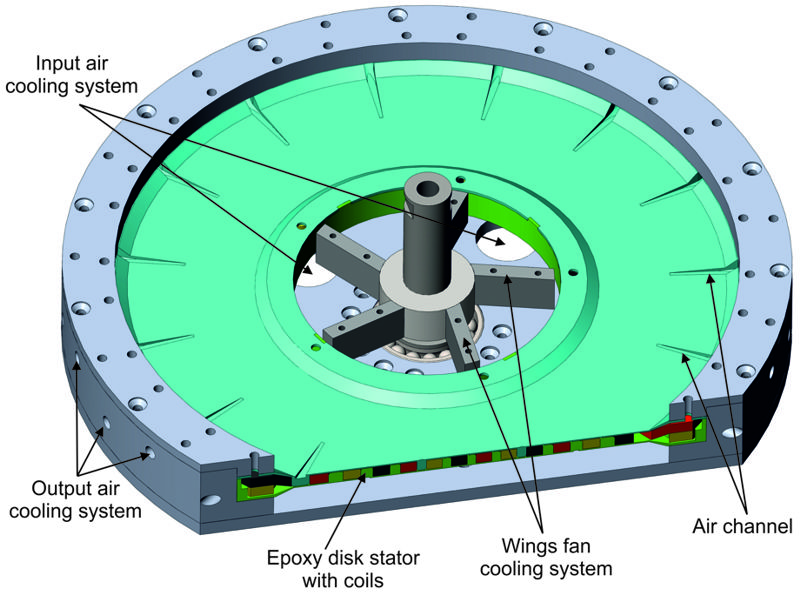

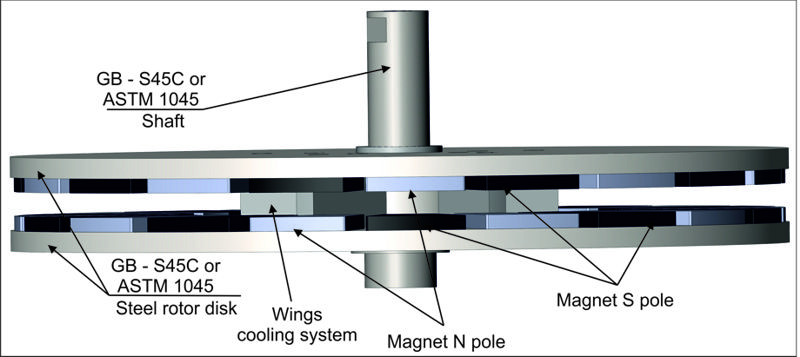

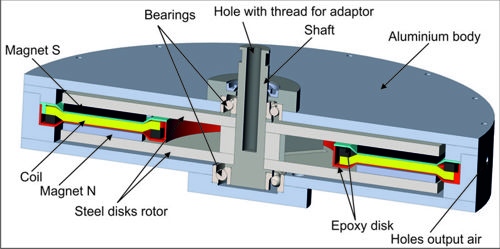

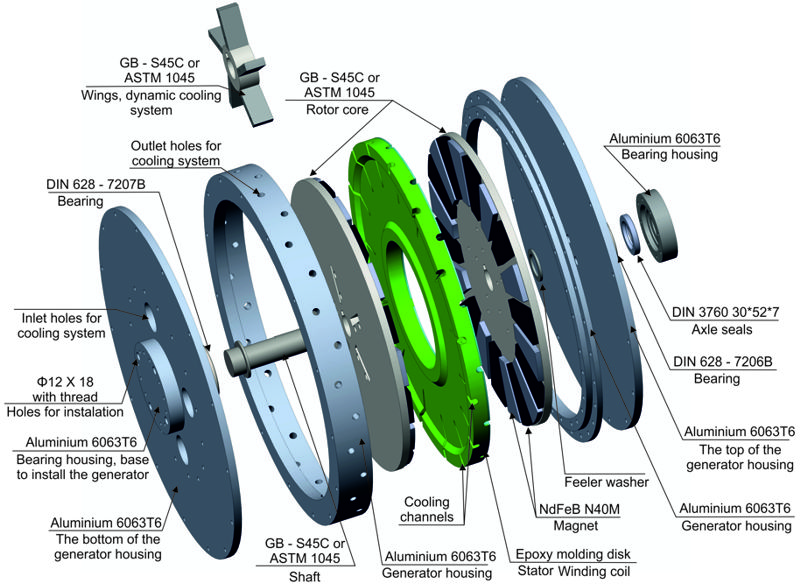

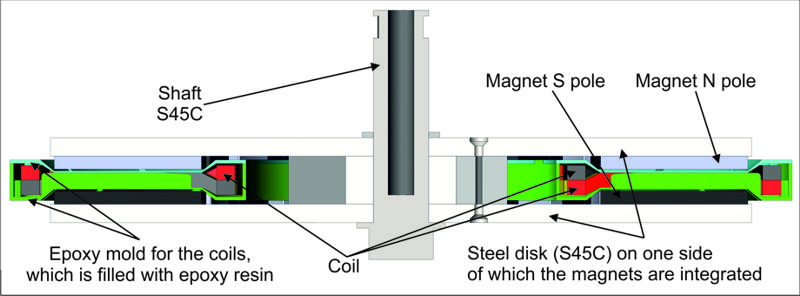

| Coreless
generators, high efficiency, for wind turbine: "Iasos".
|
| Generator:
"H8010" |
Rated
power: 1 Kva |
| Generator
specifications: |
||
| Type: |
Coreless,
axial with permanent magnets |
 |
| Rated
rotation speed: |
300
rpm |
|
| Rated
output voltage: |
120
acv |
|
| Nominal
current: |
4,8
Α |
|
| Insulation
resistance: |
100
Mohm Min(1000V) |
|
| Leakage
level: |
<20
mA |
|
| Starting
torque: |
<0,2
Nm |
|
| Type
coil connection: |
Y |
|
| Coils
per phase: |
15 |
 |
| Phases: |
Three |
|
| Pair
of magnets: |
20 |
|
| Shell
construction material: |
Aluminum |
|
| Generator
diameter: |
325
mm |
|
| Generator
height: |
102
mm |
|
| Shaft
diameter: |
40
mm |
|
| Weight: |
24
Kg |
|
| Generator:
"H8015" |
Rated
power: 1,5 Kva |
| Generator
specifications: |
||
| Type: |
Coreless,
axial with permanent magnets |
 |
| Nominal
power: |
1,5
Kw |
|
| Rated
rotation speed: |
300
rpm |
|
| Rated
output voltage: |
120
acv |
|
| Type
coil connection: |
Υ |
|
| Phases: |
Three |
|
| Shell
construction material: |
Aluminum |
|
| Shaft
diameter: |
45
mm |
|
| Generator:
"H8020" |
Rated
power: 2 Kva |
| Generator
specifications: |
||
| Type: |
Coreless,
axial with permanent magnets |
|
| Nominal
power: |
2
Kw |
|
| Rated
rotation speed: |
300
rpm |
|
| Rated
output voltage: |
180
acv |
|
| Type
coil connection: |
Υ |
|
| Phases: |
Three |
|
| Shell
construction material: |
Aluminum |
|
| Shaft
diameter: |
45
mm |
|
| Generator:
"H8035" |
Rated
power: 3,5 Kva |
| Generator
specifications: |
||
| Type: |
Coreless,
axial with permanent magnets |
|
| Rated
rotation speed: |
300
rpm |
|
| Rated
output voltage: |
180
acv |
|
Rated
current: |
11,3
Α |
|
Insulation
Resistanc |
100
Mohm Min(1000V) |
|
Resistance
(Line-Line) |
1,48
ΟΜ |
|
Leakage
leve |
<20
mA/1760V |
|
Start
torque |
<0,2
Nm |
|
Rated
torque |
129
Nm |
|
| Type
coil connection: |
Υ |
|
Winding
way: |
Overlapping
coils |
|
Number
of pol |
20 |
|
| Phases: |
Three |
|
Coils
per phase: |
15 |
|
| Shell
construction material: |
Aluminum |
|

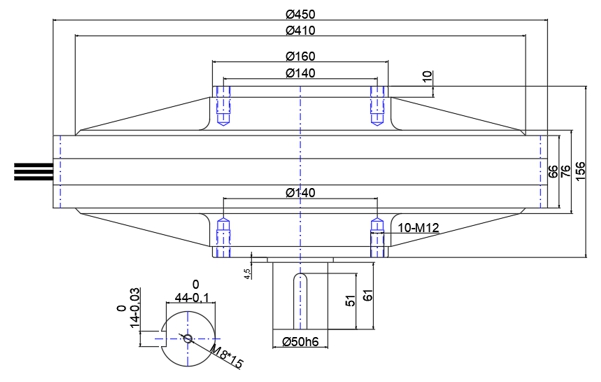

Generator
diameter: |
452
mm |
|
Generator
length: |
221
mm |
|
Efficiency: |
92
% |
|
| Shaft
diameter: |
40
mm or 50 mm |
|
Generator
Weight: |
57
Kg |
|
 |
||
 |
 |
 |
 |
 |
