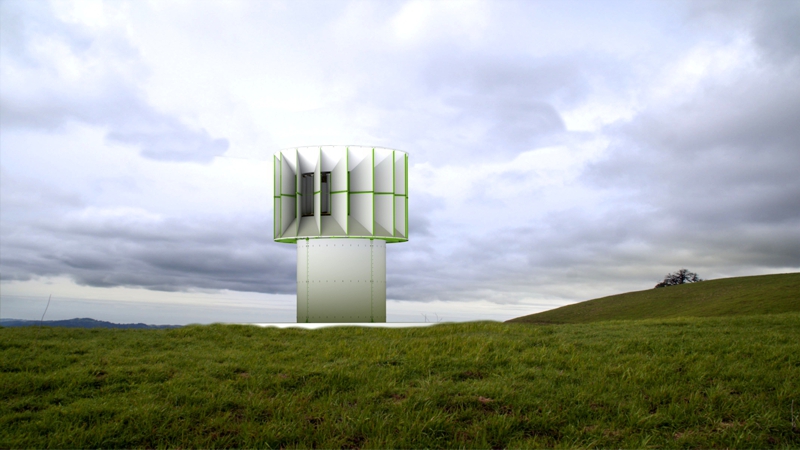

Vertical axis wind turbine: "Iasos I".
Nominal power: 1 KVA
Download
General instructions
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Warranty
Instructions for choosing the installation point

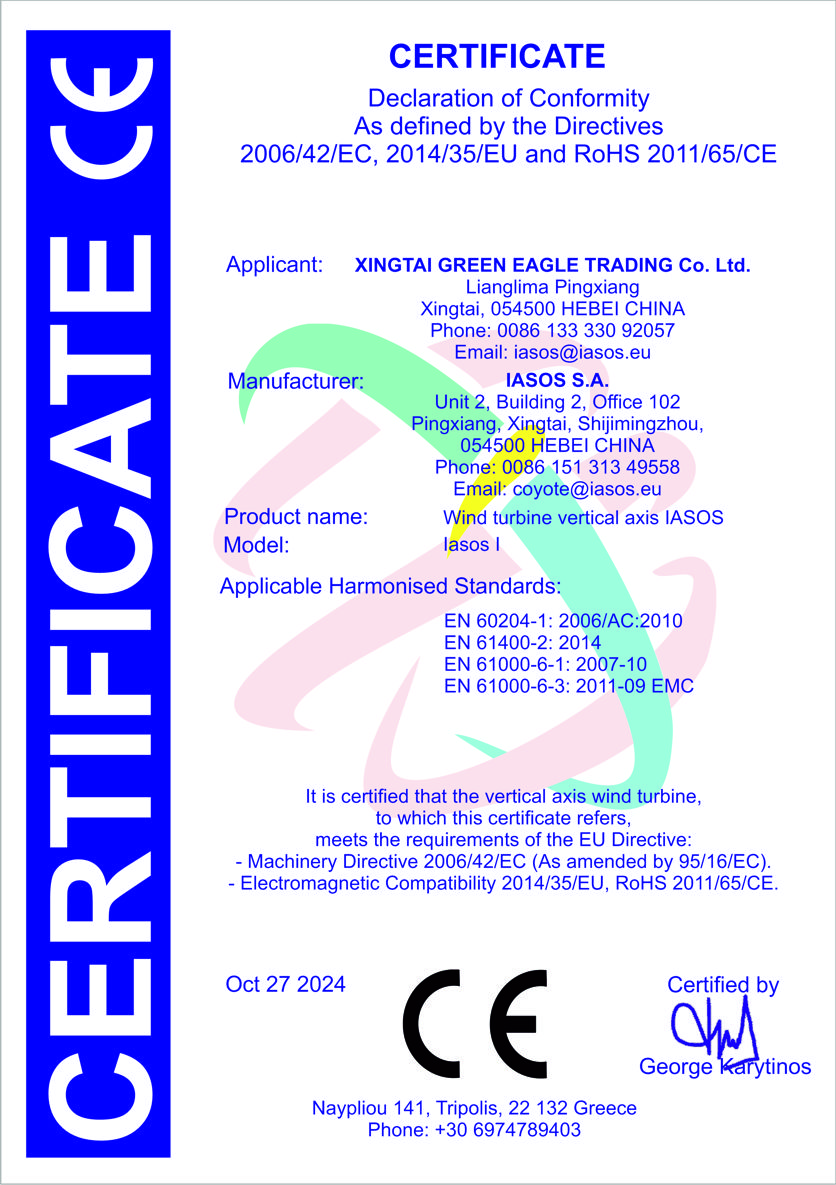

Declaration of conformity
Instructions for anchoring at the final installation point
Video for "wind rose"
Assembly and installation instructions
Video how can use the software
Uses of the wind turbine
Video for "Iasos I"
Connection to consumption and other energy sources
Video how to choose a model
Power data and charts
Video how to use
Equipment included in the wind turbine
Equipment NOT included in the wind turbine
Software to calculate all parameters of the wind turbine
First
Back
Wind Turbine Parts Catalog
Technical parameters - Specifications.
Wind turbine.
Model:
"Iasos I"

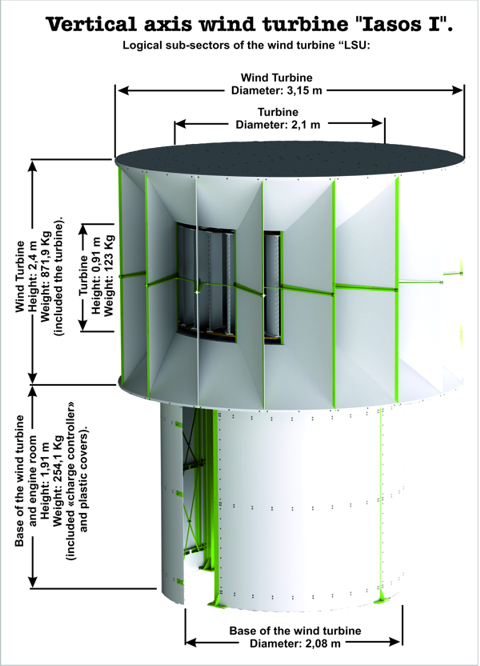

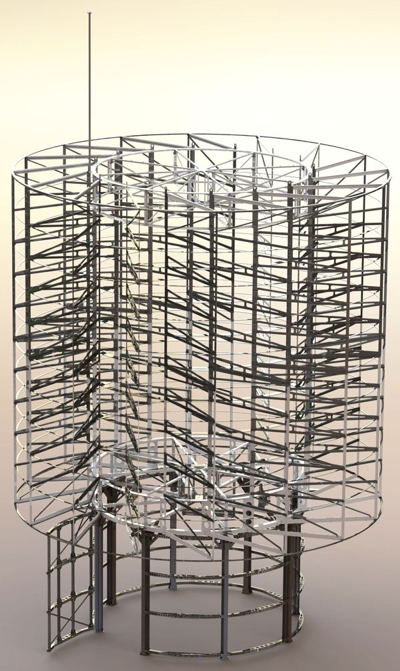

Individual wind turbine sectors
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Nominal power:
1 KVA
Size of the base of the wind turbine:
Diameter:
2,08 m
Height:
1,91 m
Weight:
254,1 Kg
Sizes of the wind turbine:
Diameter:
3,15 m
Height:
2,04 m
Weight:
871,9 Kg
Sizes of turbine:
Diameter:
2,1 m
Height:
0,91 m
Weight:
123,1 Kg
Sizes of the wind turbine as a whole:
Diameter:
3,15 m
Height:
3,95 m
Weight:
1.126 Kg

Surface, vertical projection of the wind turbine, into the wind:
(including diffusers, not including the base of the wind turbine)

6,426 m2
Wind speeds at which the wind turbine can generate electricity:
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
From:
0,9 m/s
To: (with full load)
11,9 m/s
To: (at 80% load or less)
14 m/s
Noise during operation:
0 db
Vibrations during operation:
Zero
Permissible operating temperatures:
From:
- 14 C0
To:
+ 48 C0
Permissible operating relative humidity:
92%
Aerodynamic factor: (depending on wind speed)
Minimum:
5,95
Maximum:
17,24
Safety factor:
5
Frame construction material:
Q235 JS,
DIN 1.0037
A36 ASTM
Cutting and processing method:
CNC Laser
Welding method:
Robotic welding with TIG
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Cleaning method before painting:
Phosphating
Dye method:
Electrostatic paint of three consecutive layers
Maximum wind load:
19.606 N
Maximum wind speed:
160 Km/h
Maximum snow load:
2 KN/m2
Maximum permissible weight on the roof:
230 Kg
Maximum permissible weight on the lower surface of the turbine chamber:
186 Kg
Number of wind turbine base pylons:
4
Total surface area of flanges in contact with the ground:
1.600 cm2
Standards under which operation was tested:
Electromagnetic compatibility, emissions:
EN 61000 - 6 - 3
Electromagnetic compatibility, immunity:
EN 61000 - 6 - 1
Transport box:
Box construction material:
Plywooden box
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Box dimensions:
1,22 * 2,44 * 0,7 m
Box volume:
2,08 m3
Total gross box weight, GET:
1.275 Kg
Plastic components.
Plastic parts manufacturing material:
PVC 1,7%, 6% UV
Cutting and processing method:
CNC Laser
Method of making turbine blades:
Extruder
Steel components.
Shaft construction material:
Cr42Mo4
DIN 1.7225
Fastener construction material (screws, nuts, etc.):
AISI 316 (SS)
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Turbine.
Number of turbine blades:
28
Total positive blades area:
8,092 m2
Total area of blades active in the wind:
4,046 m2
Surface, vertical projection of the turbine, into the wind:
1,911 m2
Maximum operational speed of rotation of the turbine:
48,5 rpm
Maximum permissible speed of rotation of the turbine:
100 rpm
Maximum turbine torque:
585 Nm
Turbine speed control techniques:
Dump load:
Yes
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Turbine stopping techniques: (braking)
Manual brake:
Yes
Manual electric brake:
Yes
Dump load:
Yes
Turbine rotation direction:
Clockwise
Turbine pulleys.
Construction material of the turbine pulleys:
Aluminum 6063 T6
Cutting and processing method:
CNC Laser
Welding method:
Welding with TIG
Dye method:
Anodizing
Generator.
Number of generators installed:
1

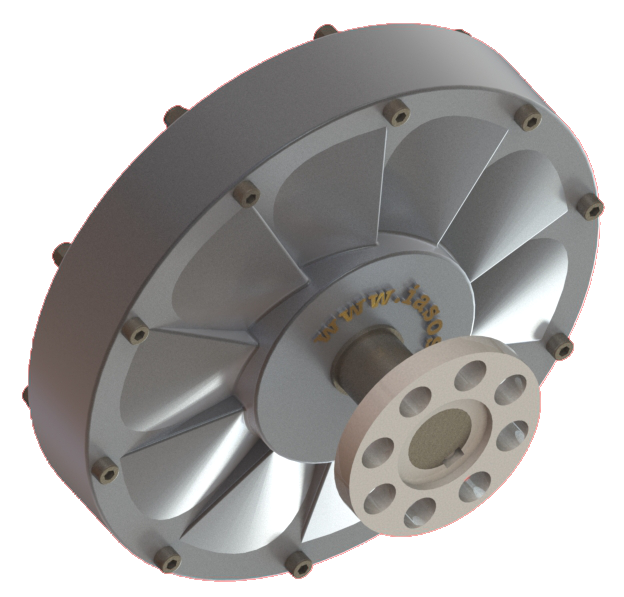

Installed generator model:
Ç8010
Type of generator installed:
Coreless permanent magnet generator
Rated generator power:
1 Kva
Rated output voltage of generator (phase voltage):
120 Acv
Generator.
Coreless generator for wind turbine, coreless generators prices
Rated rotation speed:
300 rpm
Generator power factor: (cosö)
0,9851
Maximum torque supplied by the generator:
41,92 Nm
Maximum generator efficiency:
95,41%
Minimum generator efficiency:
74,5 %
Connection of coils, type:
Y
Phases:
Three
Generator weight:
25 Kg
"Charger controller".
MPPT charger controller
Number of "charger controllers" installed:
1
Model of "charger controller":
H8520
Rated power of "charger controller":
2 Kw
Rated output voltage of "charger controller":
48 DCV
Types and number of inputs:
Three phase AC:
2
Battery charging methods:
Bulk:
Yes
Absorption:
Yes
Gear boxes for wind turbines
Buck:
Yes
Functions of "charger controller":
MPPT (Maximum Power Point Tracking)
Yes
MCU
Yes
DUMP LOAD
2 Kw
BOOST
Yes
BUCK
Yes
HYBRID SYSTEM
Yes

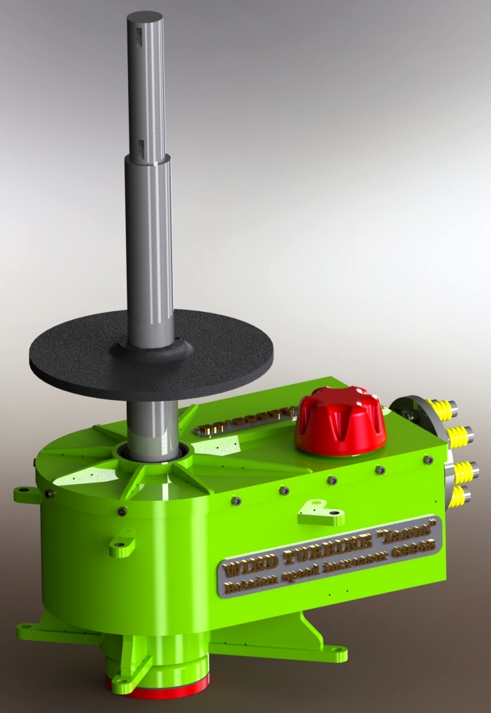

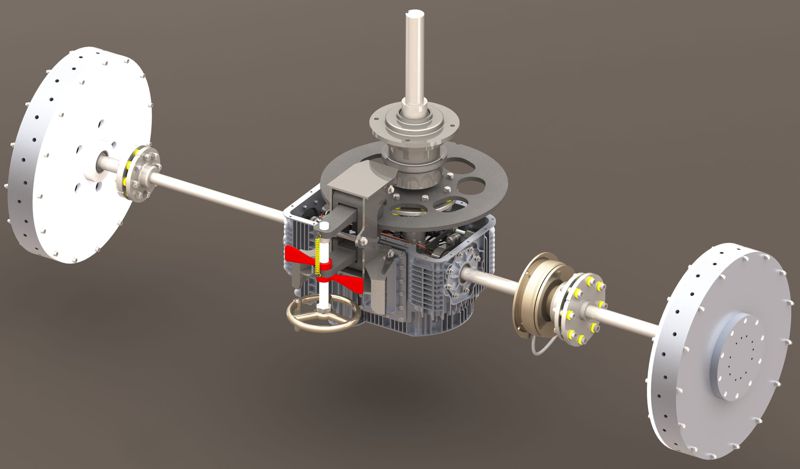

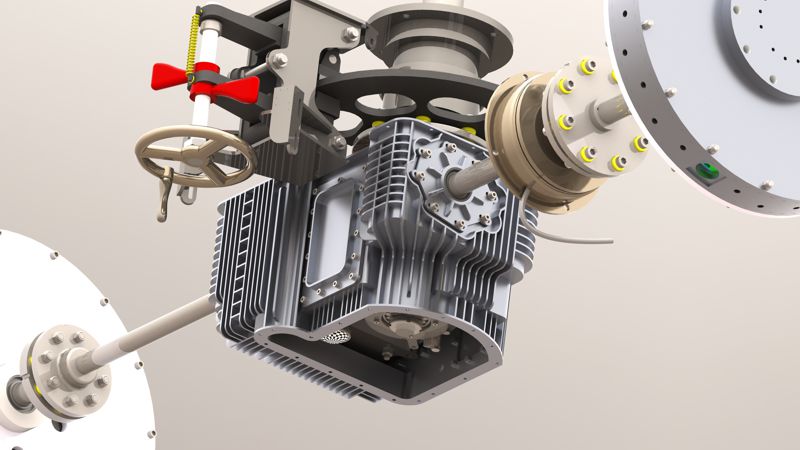

"Gear box".
Power transmission installed:
Gear box
Model:
G10065
Power transmission ratio:
1 X 6,5
Rated power:
5,2 Kw

Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
