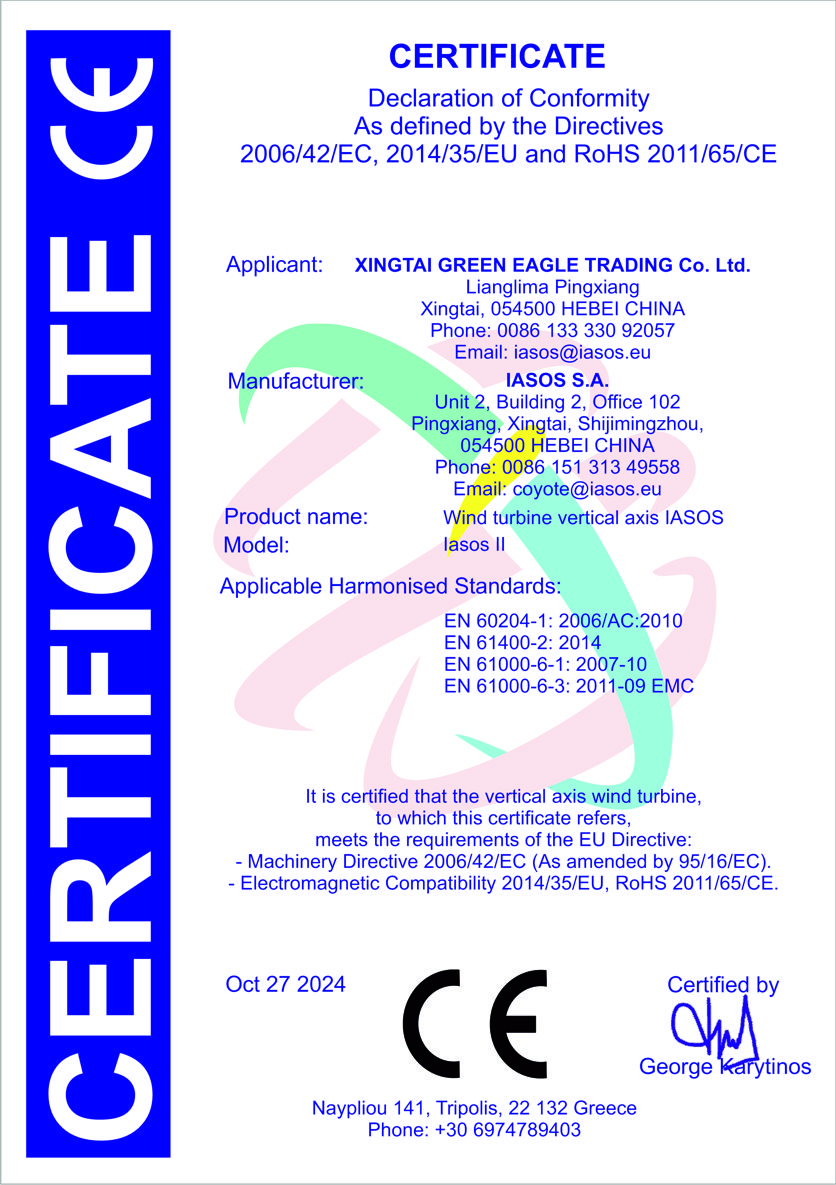

Declaration of conformity
Instructions for anchoring at the final installation point
Video for "wind rose"
Assembly and installation instructions
Video how can use the software
Uses of the wind turbine
Video for "Iasos I"
Connection to consumption and other energy sources
Video how to choose a model
Power data and charts
Video how to use
Equipment included in the wind turbine
Equipment NOT included in the wind turbine
Software to calculate all parameters of the wind turbine
First
Back
Wind Turbine Parts Catalog
Technical parameters - Specifications.
Wind turbine.
Model:
"Iasos II"

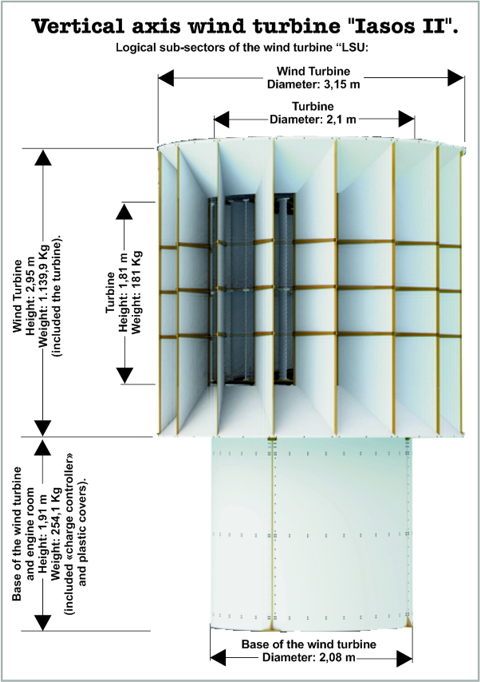

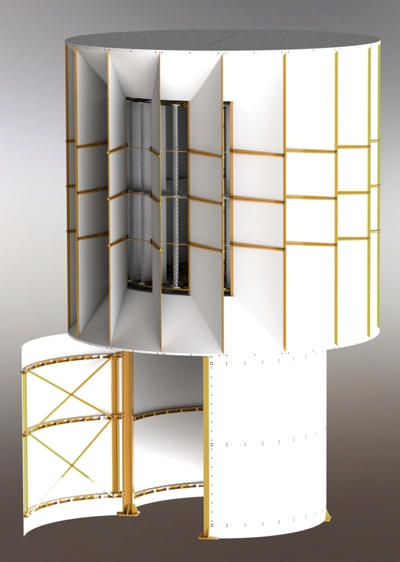

Individual wind turbine sectors
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Nominal power:
2 KVA

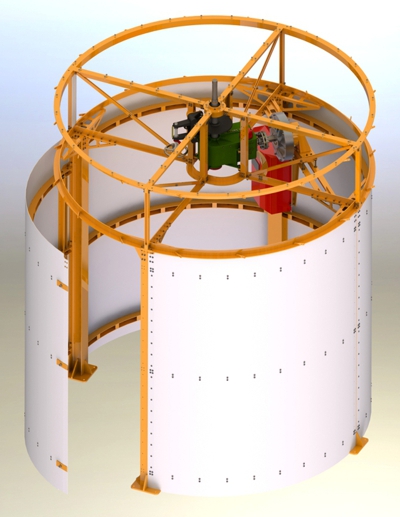

Size of the base of the wind turbine:
Diameter:
2,08 m
Height:
1,91 m
Weight:
254,1 Kg
Sizes of the wind turbine:
Diameter:
3,15 m
Height:
2,95 m
Weight:
1.139,9 Kg
Sizes of turbine:
Diameter:
2,1 m
Height:
1,825 m
Weight:
181 Kg
Sizes of the wind turbine as a whole:
Diameter:
3,15 m
Height:
4,86 m
Weight:
1.394 Kg
Surface, vertical projection of the wind turbine, into the wind: (including diffusers, not including the base of the wind turbine)
9,2925 m2
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Wind speeds at which the wind turbine can generate electricity:
From:
0,9 m/s
To: (with full load)
13,9 m/s
To: (at 80% load or less)
14 m/s
Noise during operation:
0 db
Vibrations during operation:
Zero
Permissible operating temperatures:
From:
- 14 C0
To:
+ 48 C0
Permissible operating relative humidity:
92%
Aerodynamic factor: (depending on wind speed)
Minimum:
5,78
Maximum:
19,07
Safety factor:
5
Frame construction material:
Q235 JS,
DIN 1.0037
A36 ASTM
Cutting and processing method:
CNC Laser
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Welding method:
MIG, TIG, Laser
Cleaning method before painting:
Phosphating
Dye method:
Electrostatic paint of
two consecutive layers
Maximum wind load:
22.551 N
Maximum wind speed:
160 Km/h
Maximum snow load:
2 KN/m2
Maximum permissible
weight on the roof:
190 Kg
Maximum permissible weight on the lower surface of the turbine chamber:
98 Kg
Number of wind turbine base pylons:
4
Total surface area of flanges in contact with the ground:
1.600 cm2
Standards under which operation was tested:
Electromagnetic compatibility, emissions:
EN 61000 - 6 - 3
Electromagnetic compatibility, immunity:
EN 61000 - 6 - 1
Transport boxes:
Boxes construction material:
Plywooden box
Total number of boxes:
Two
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Boxes total volume:
4,693 m3
Total gross box weight, GET:
1.492 Kg
Plastic components.
Plastic parts manufacturing material:
PVC 1,67 %, 6 % UV
Cutting and processing method:
CNC Laser
Method of making turbine blades:
Extruder
Steel components.
Shafts construction material:
20CrMoTi
20MnCr5 (1,7147)
Fastener construction material (screws, nuts, etc.):
AISI 304 (SS)

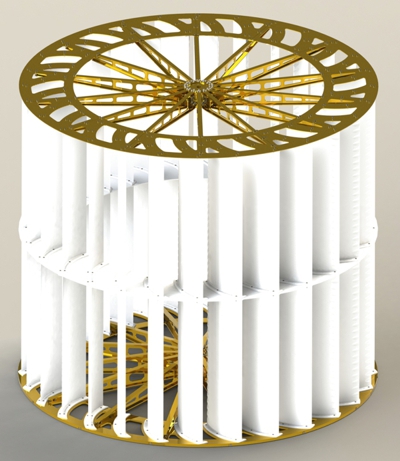

Turbine.
Number of turbine blades:
56
Total positive blades area:
16,184 m2
Total area of blades active in the wind:
8,092 m2
Surface, vertical projection of the turbine, into the wind:
3,832 m2
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Maximum operational speed of rotation of the turbine:
59,7 rpm
Maximum permissible speed of rotation of the turbine:
100 rpm
Maximum turbine torque:
1.280 Nm
Turbine speed control techniques:
Dump load:
Yes
Turbine stopping techniques: (braking)
Manual brake:
Yes
Manual electric brake:
Yes
Dump load:
Yes
Turbine rotation direction:
Clockwise
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines

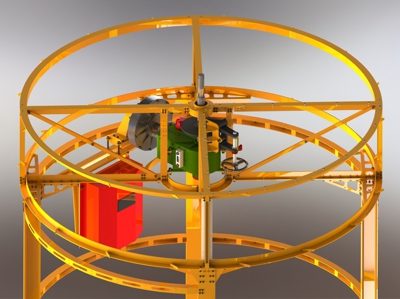

Turbine pulleys.
Construction material of the turbine pulleys:
Q235 JS,
DIN 1.0037
A36 ASTM
Cutting and processing method:
CNC Laser
Welding method:
MIG, TIG, Laser
Dye method:
Electrostatic paint two consecutive layers
Generator.
Number of generators installed:
1
Installed generator model:
Ç8020
Coreless generator for wind turbine, coreless generators prices
Type of generator installed:
Coreless permanent magnet generator
Rated generator power:
2 KVA
Rated output voltage of generator (phase voltage):
180 ACV
Rated rotation speed:
300 rpm
Generator power factor: (cosö)
0,9851
Maximum torque supplied by the generator:
74,8 Nm
Maximum generator efficiency:
94,9%
Minimum generator efficiency:
75,3 %
Connection of coils, type:
Y
MPPT charger controller
Phases:
Three
Generator weight:
31 Kg
"Charger controller".
Number of "charger controllers" installed:
1
Model of "charger controller":
H8520
Rated power of "charger controller":
2 Kw
Rated output voltage of "charger controller":
48 DCV
Types and number of inputs:
Three phase AC:
2
Gear boxes for wind turbines
Battery charging methods:
Bulk:
Yes
Absorption:
Yes
Buck:
Yes
Functions of "charger controller":
MPPT (Maximum Power Point Tracking)
Yes
MCU
Yes
DUMP LOAD
2 Kw
BOOST
Yes
BUCK
Yes
HYBRID SYSTEM
Yes

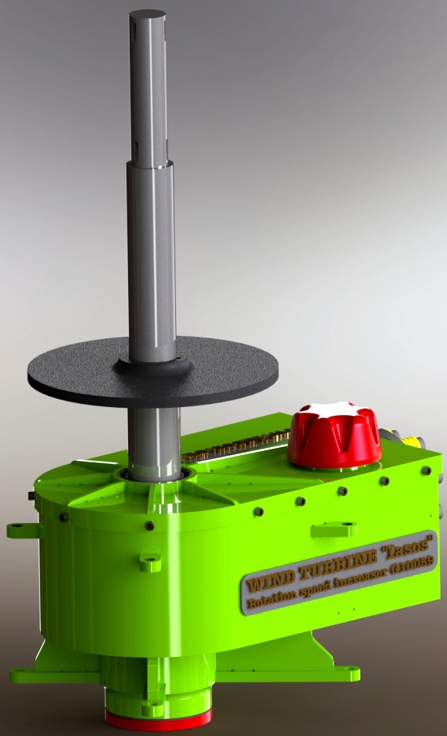

"Gear box".
Power transmission installed:
Gear box
Model:
G10059
Power transmission ratio:
1 X 5,9
Rated power:
9,3 Kw
