| Vertical
axis wind turbine:
"Iasos II". |
Nominal
power: 2 KVA |
| Download |
 |
||
Parts
list of wind turbine "Iasos II". |
|
Metallic
components (components Q235) |
|
Code |
Photo |
Pieces |
|

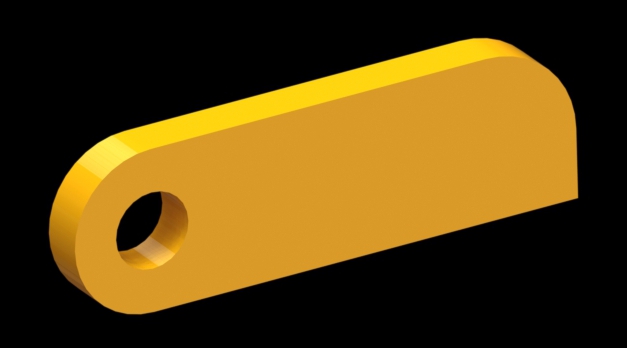

330 |
 |
2 |
|
339 |
 |
4 |
|

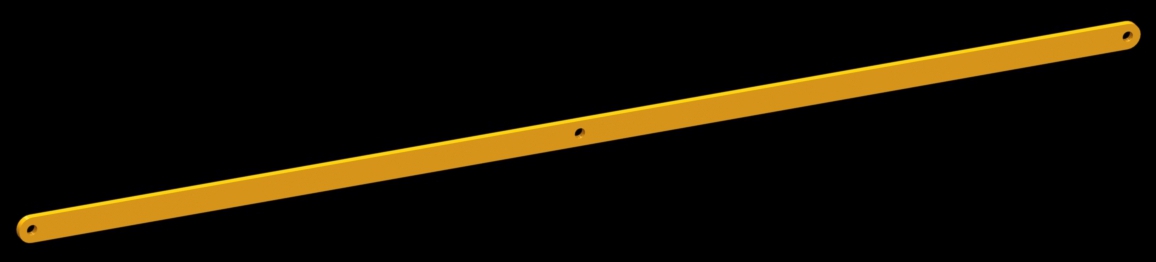

340 |
|
4 |
|
374 |
|
2 |
|
380 |
|
2 |
|
386 |
|
8 |
|
414 |
|
16 |
|

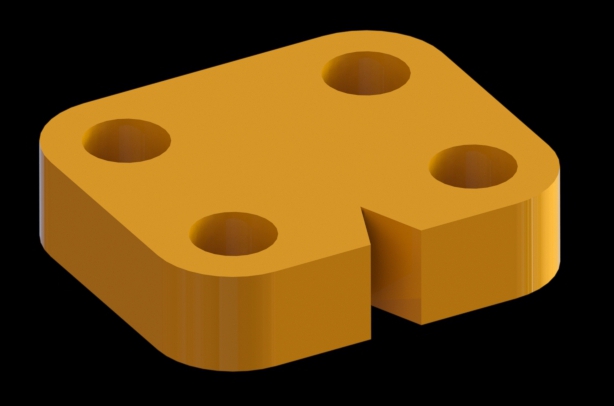

415 |
 |
6 |
|

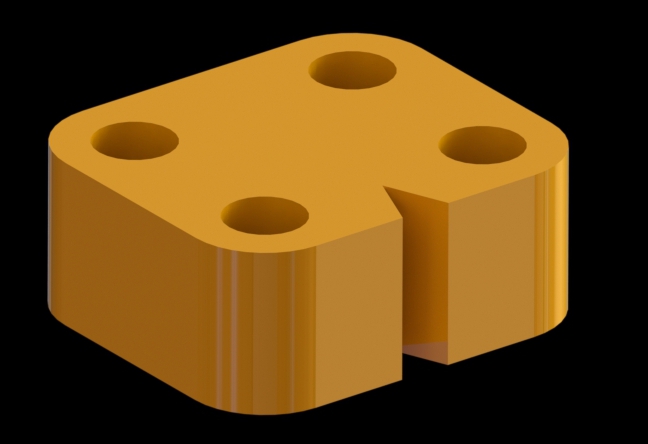

416 |
 |
10 |
|

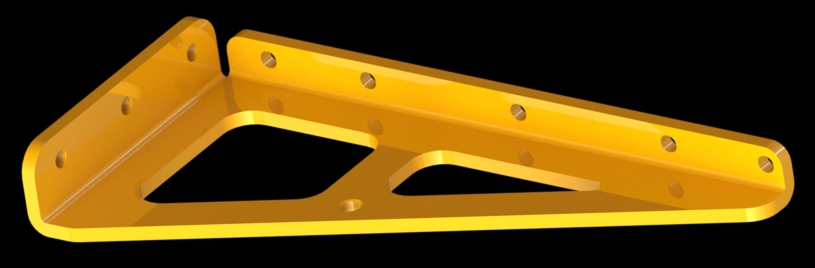

1023 |
 |
4 |
|

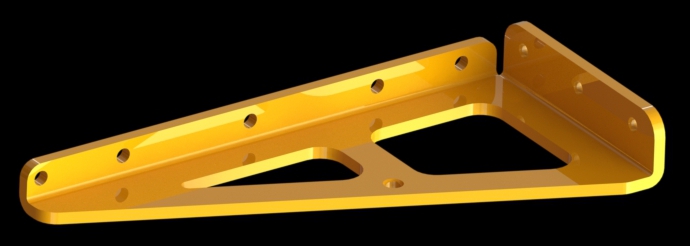

1024 |
 |
4 |
|
"Parts
A" (Aluminum) |
|
Code |
Photo |
Pieces |
|

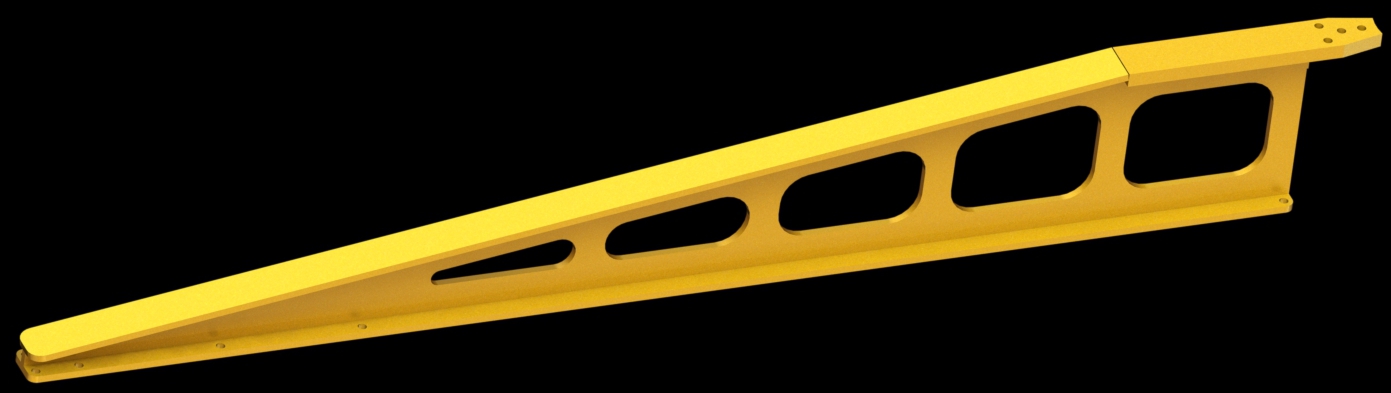

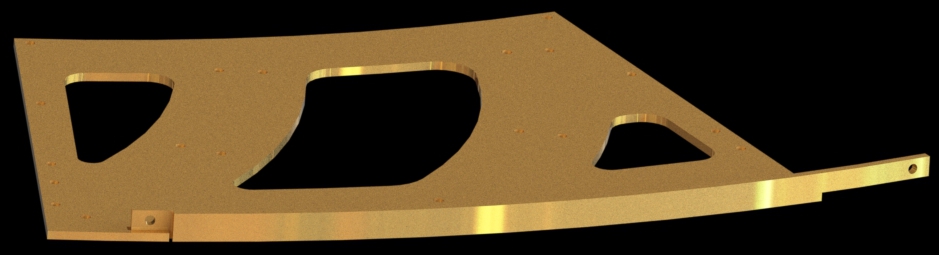

9601 |
 |
14 |
|

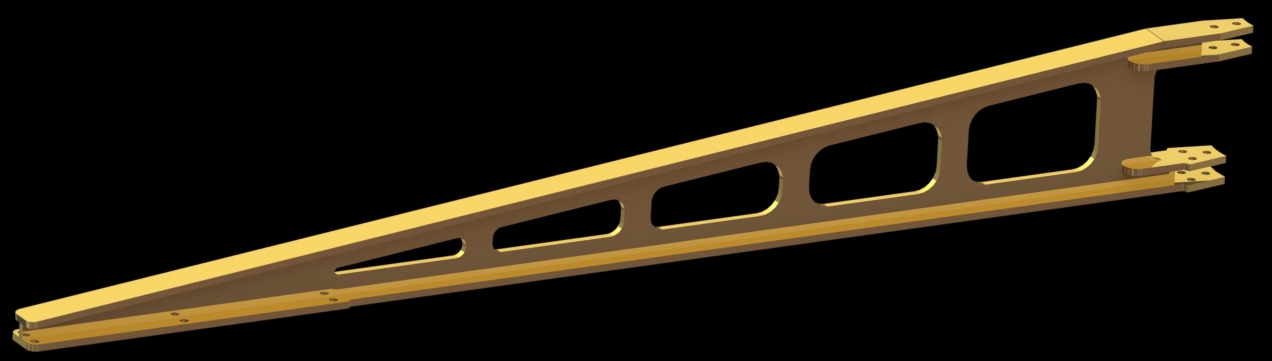

9602 |
 |
14 |
|
9603 |
 |
14 |
|

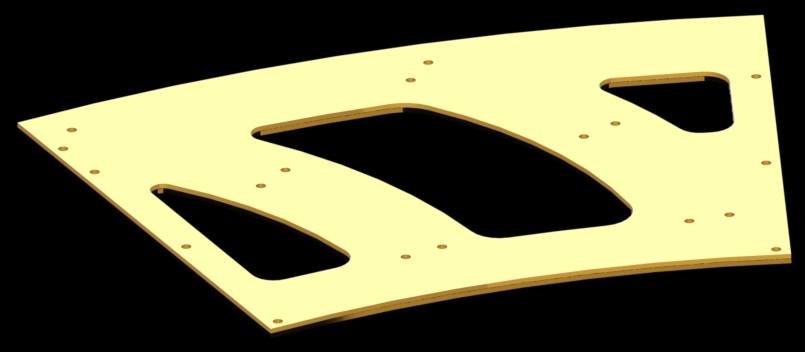

4010 |
 |
14 |
|
Aluminum
components (Turned) |
|
Code |
Photo |
Pieces |
|

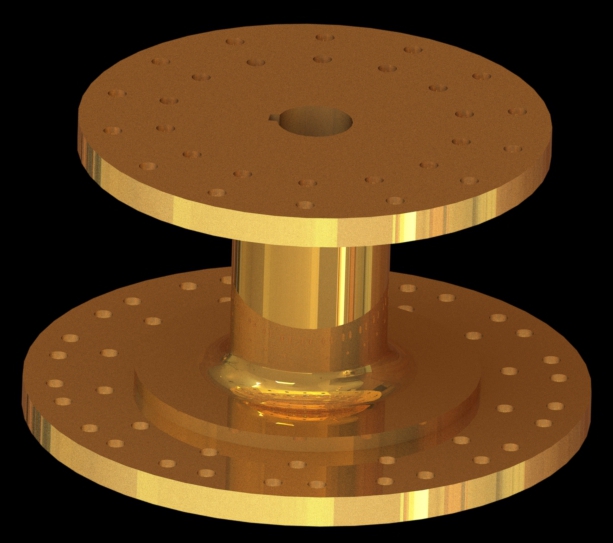

5010 |
 |
1 |
|
Metallic
"Parts
A" (Q235) |
| Code |
Photo |
Pieces |

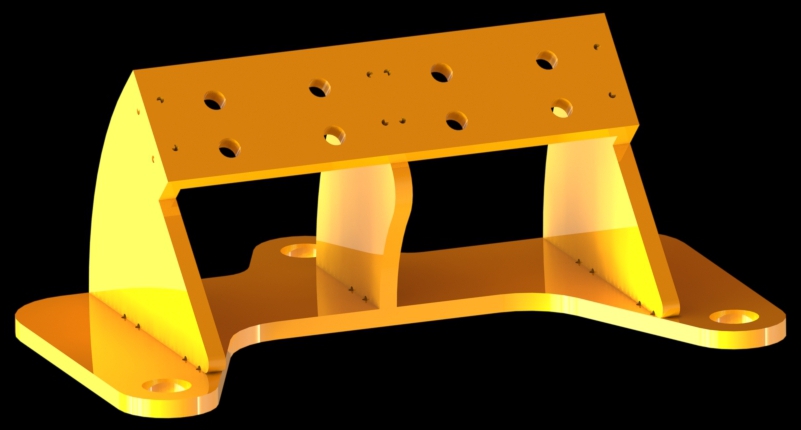

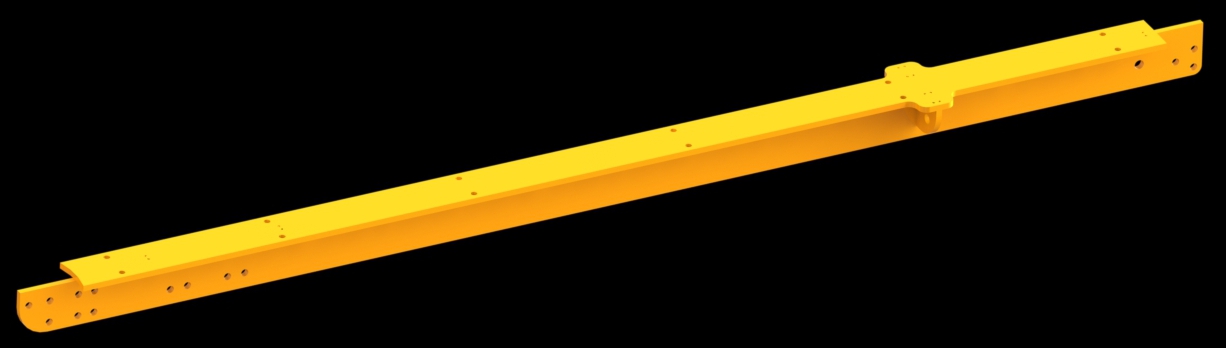

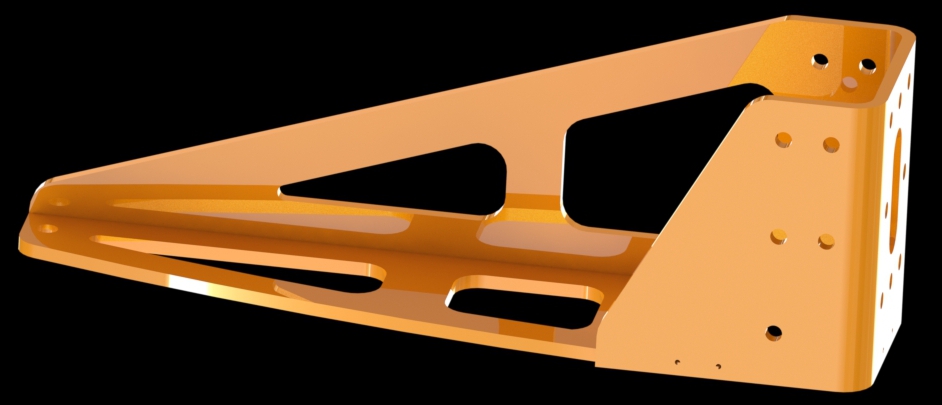

| 9801 |
 |
4 |

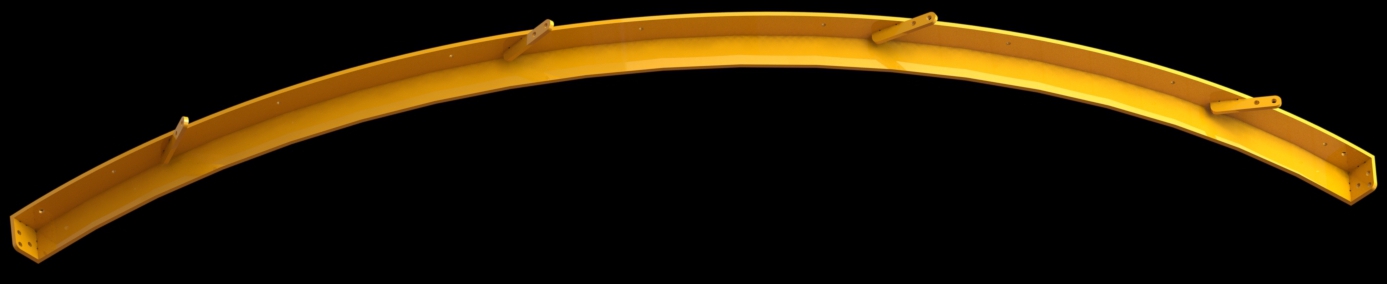

| 9802 |
 |
4 |

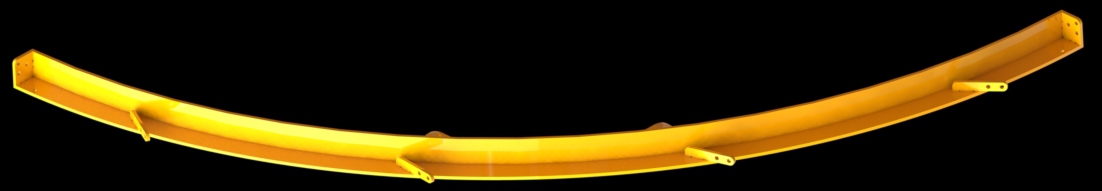

| 9804 |
 |
4 |

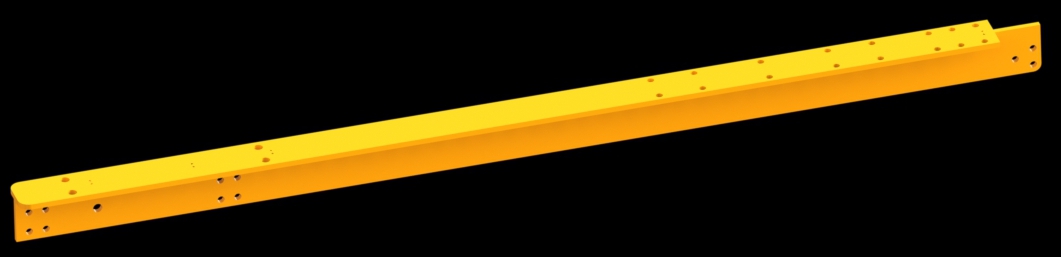

| 9805 |
 |
2 |

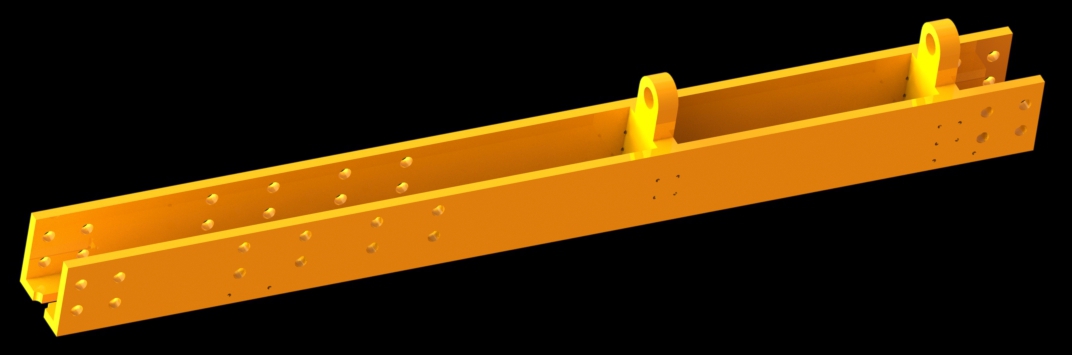

| 9806 |
 |
4 |

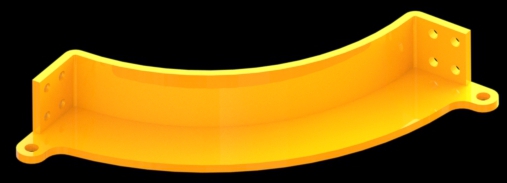

| 9807 |
 |
1 |

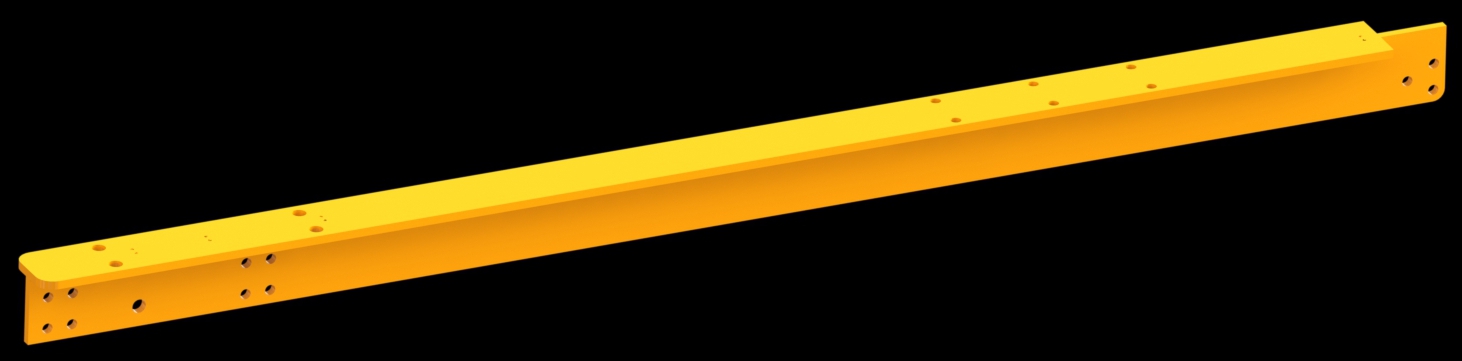

| 9809 |
 |
2 |

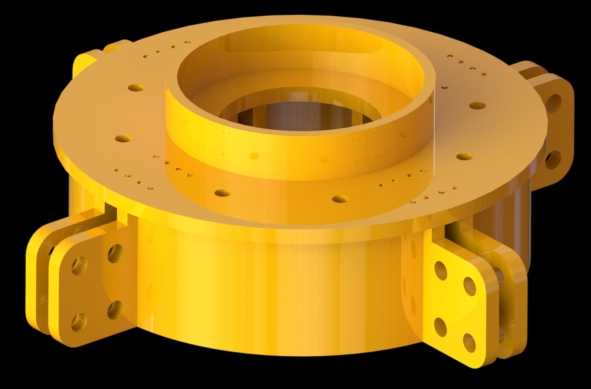

| 9810 |
 |
1 |
| 9811 |
 |
1 |

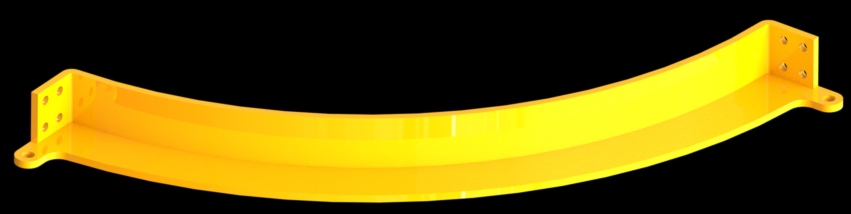

| 9812 |
 |
1 |

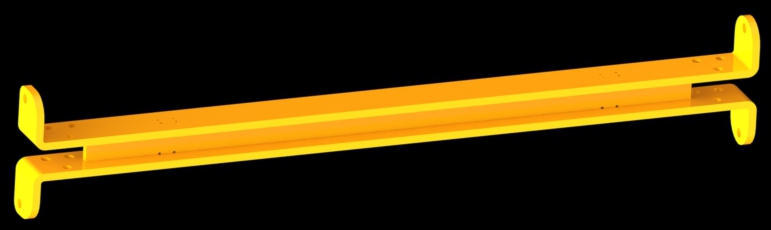

| 9813 |
 |
4 |

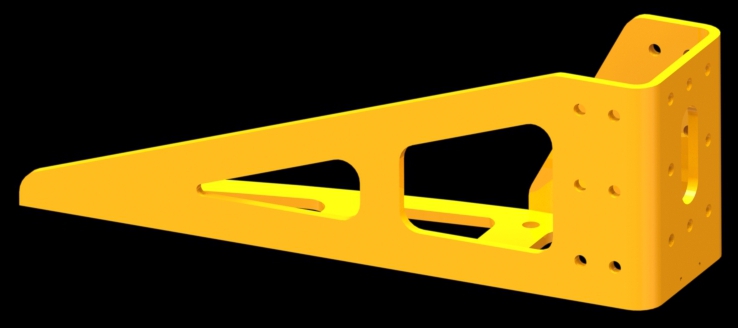

| 9814 |
 |
4 |
| 9815 |
 |
4 |
| 9816 |
 |
4 |

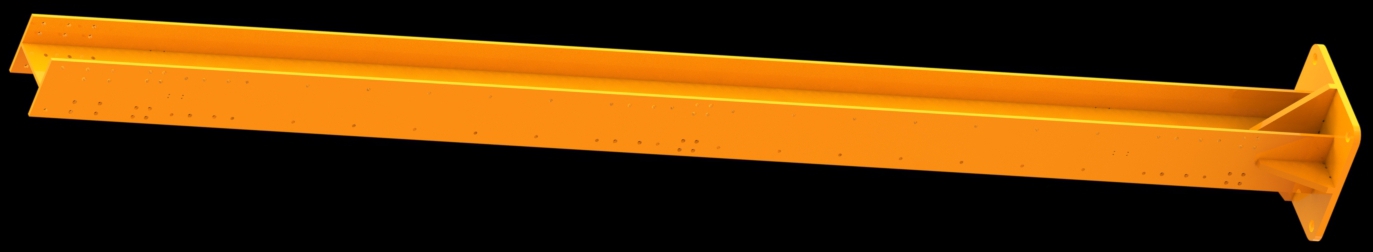

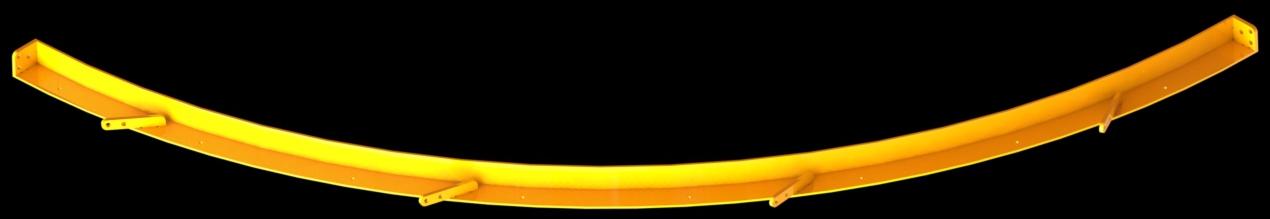

| 9817 |
 |
4 |

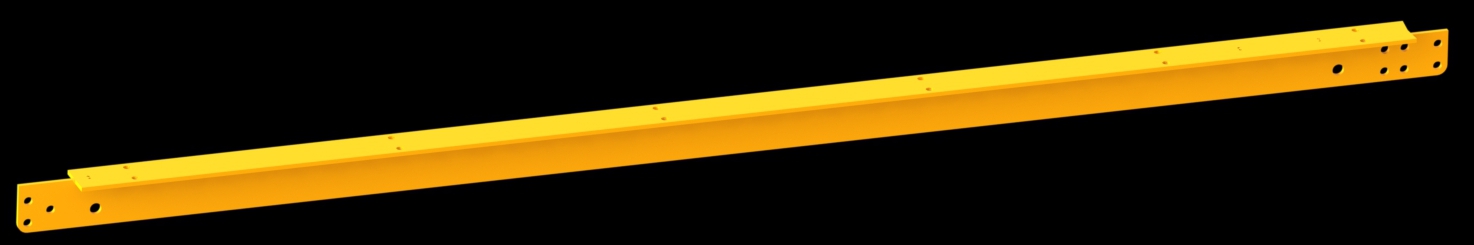

| 9818 |
 |
4 |

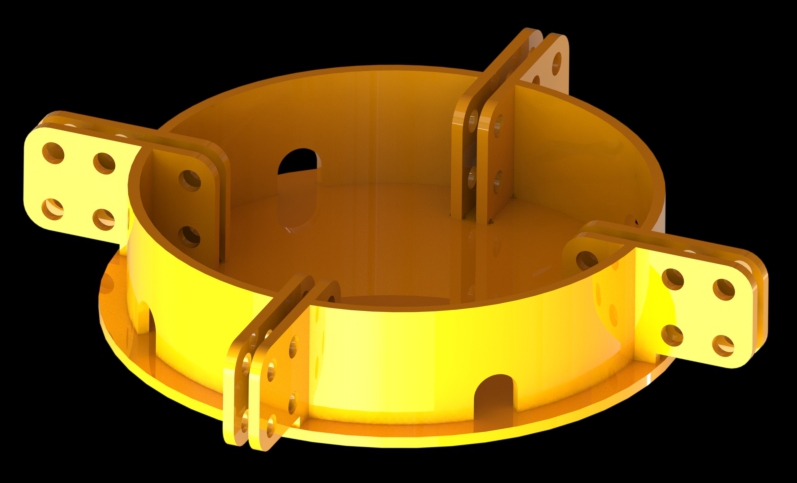

| 9819 |
 |
1 |
| 9820 |
 |
1 |

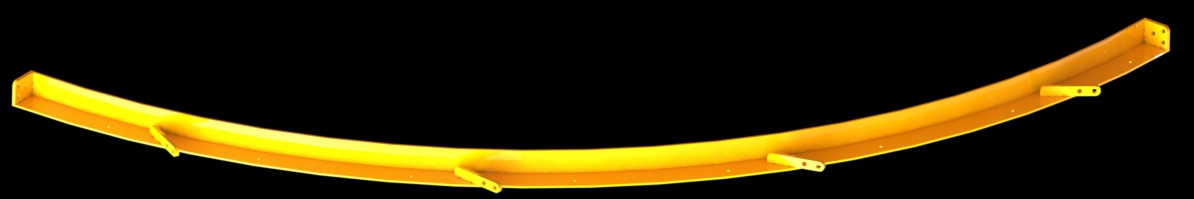

| 9821 |
 |
4 |

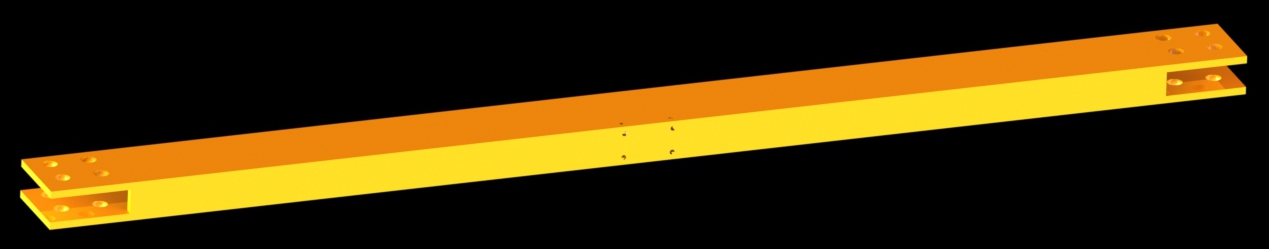

| 9822 |
 |
4 |

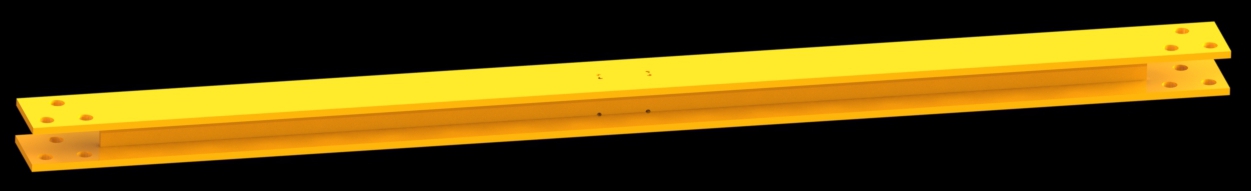

| 9823 |
 |
4 |

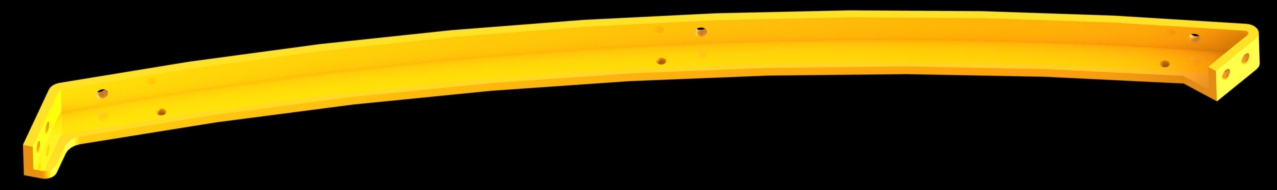

| 9824 |
 |
32 |

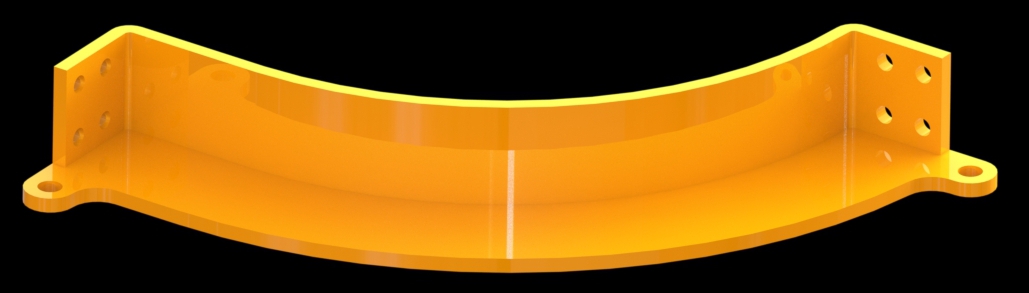

| 9825 |
 |
1 |
| 9826 |
|
1 |

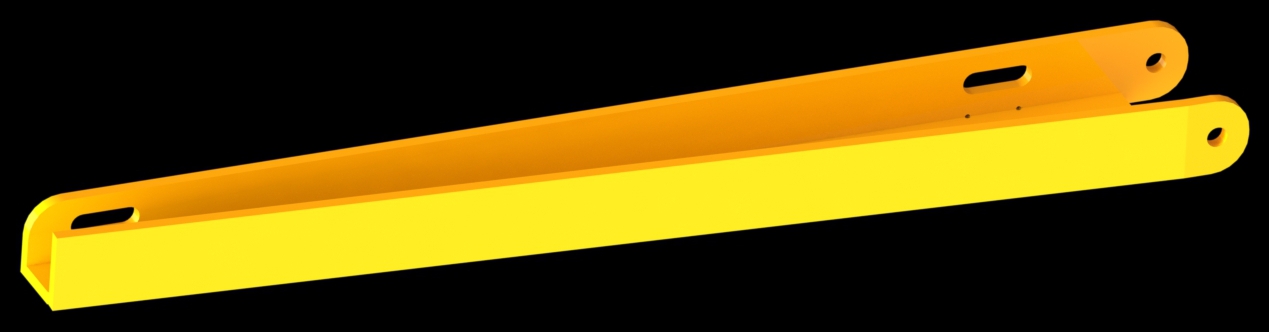

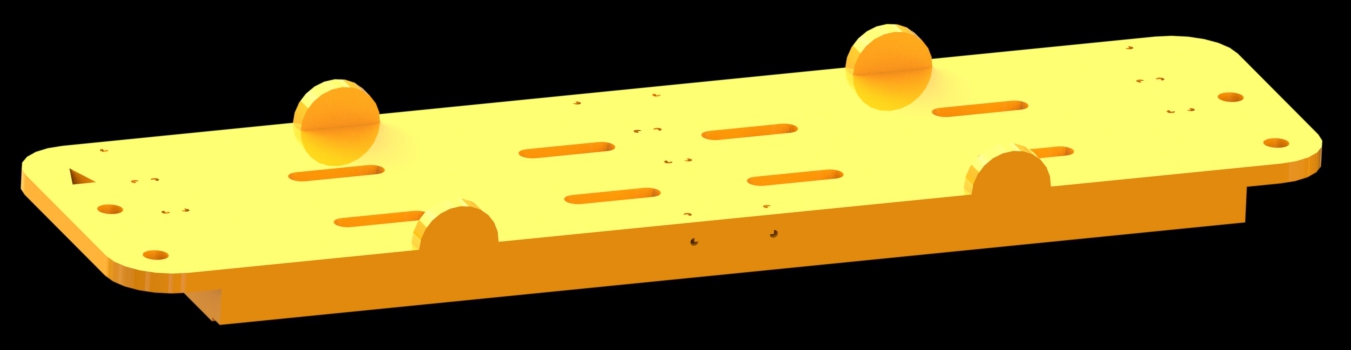

| 9829 |
 |
1 |

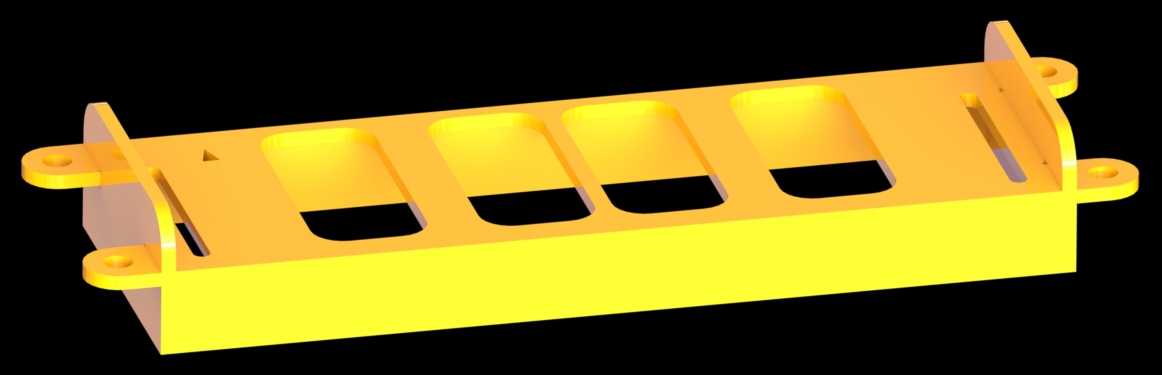

| 9830 |
 |
1 |

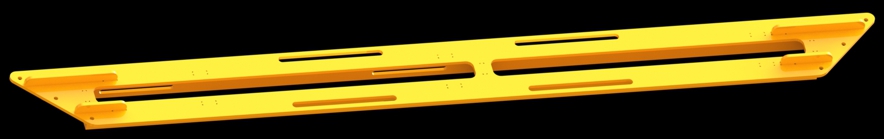

| 9831 |
 |
1 |

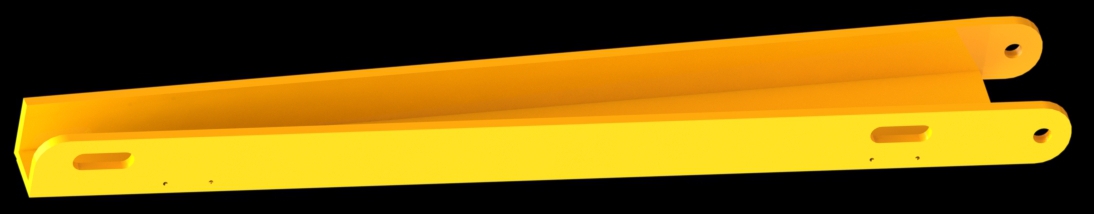

| 9832 |
 |
1 |
| 9833 |
 |
1 |

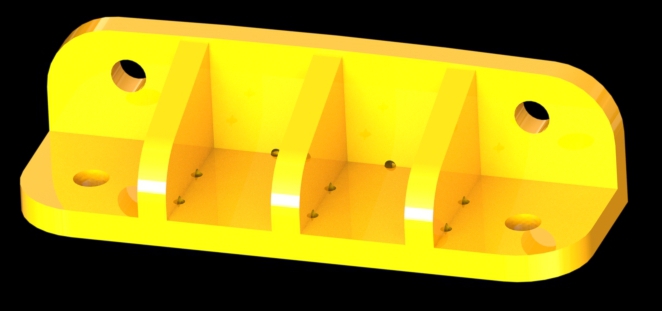

| 9834 |
 |
4 |

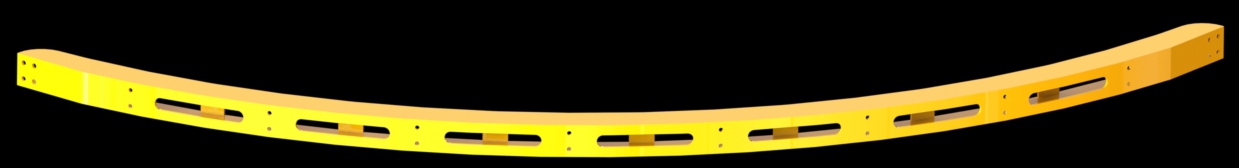

| 9835 |
 |
9 |

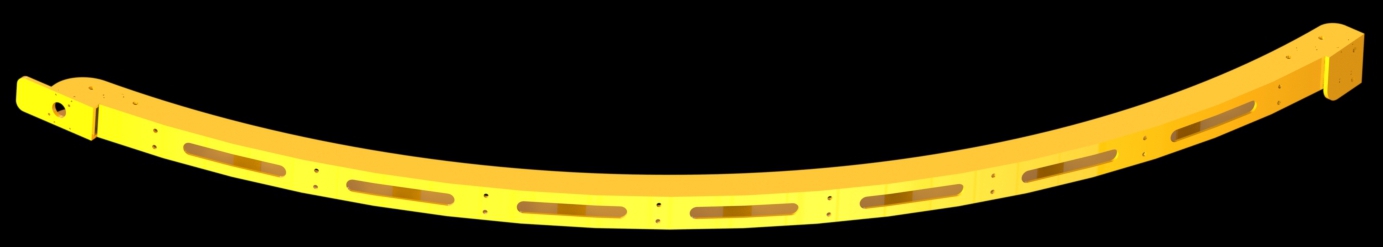

| 9836 |
 |
3 |
9837 |
 |
1 |

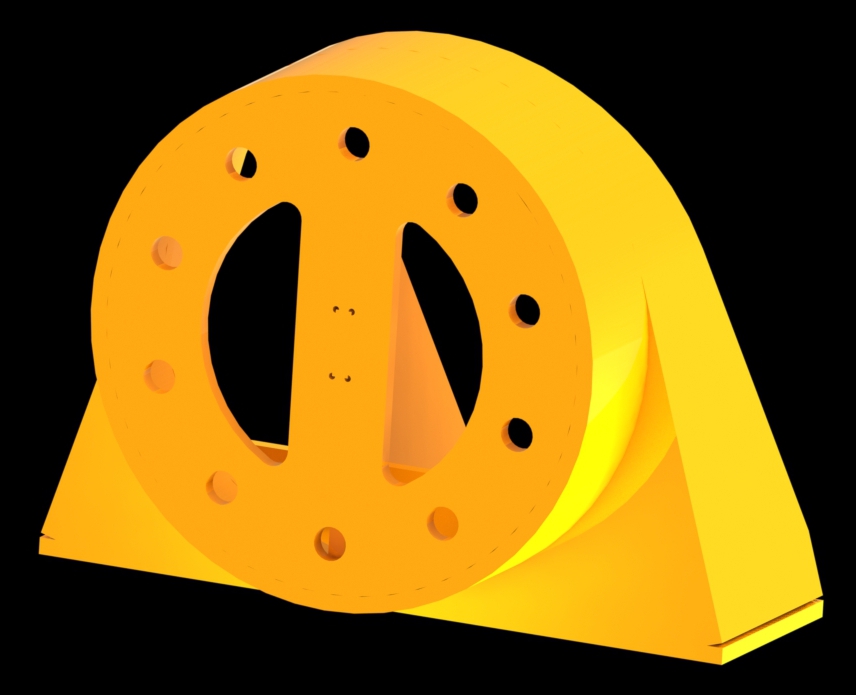

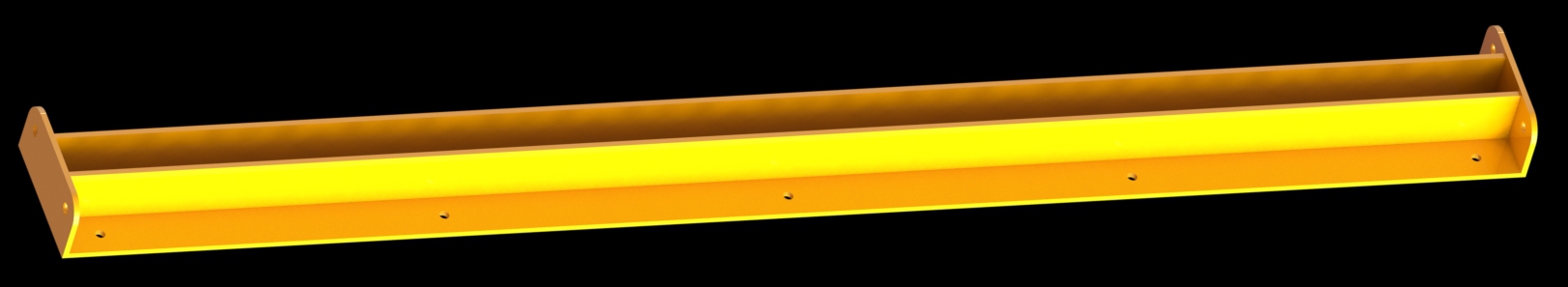

| 9838 |
 |
2 |

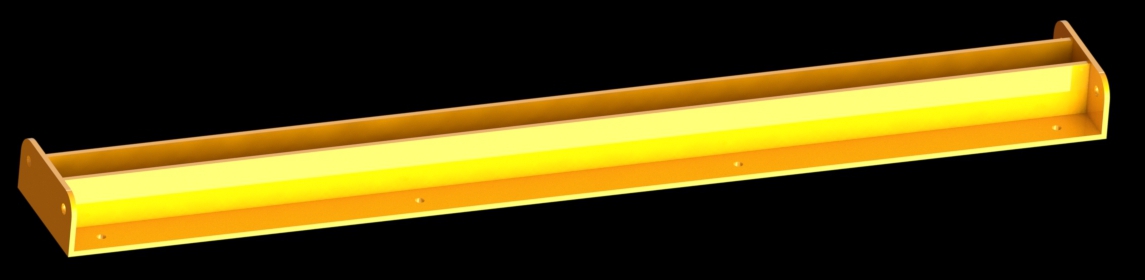

| 9839 |
 |
2 |

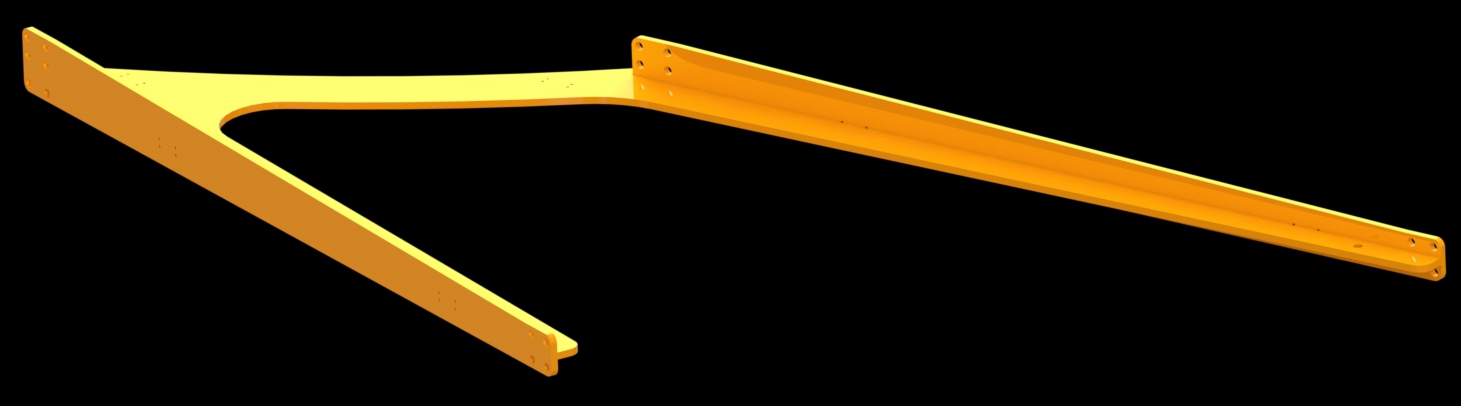

| 9840 |
 |
48 |

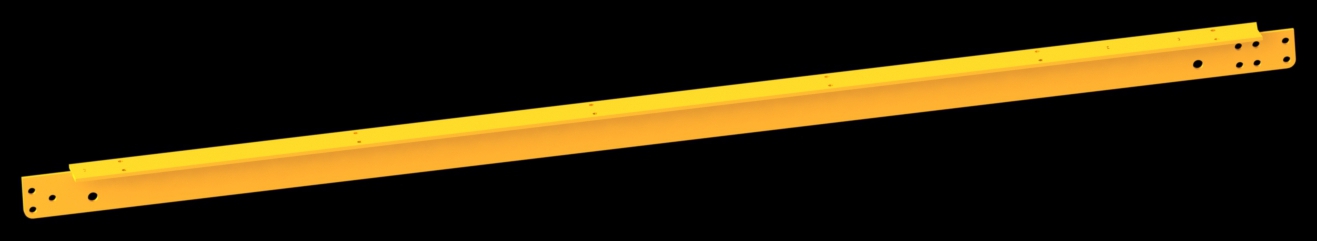

| 9841 |
 |
4 |

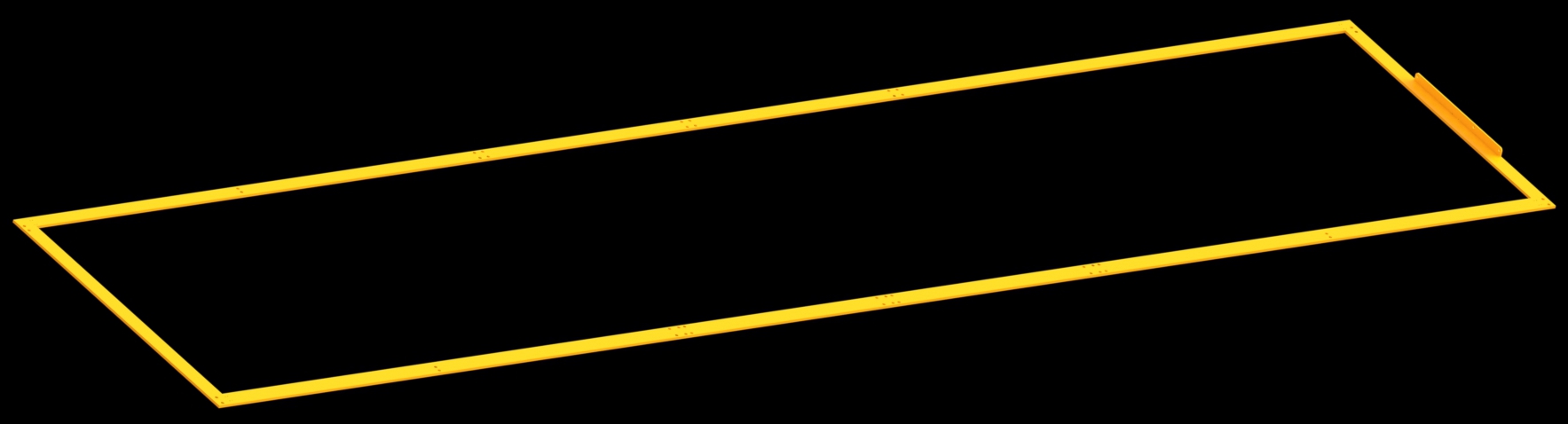

9842 |
 |
16 |
|

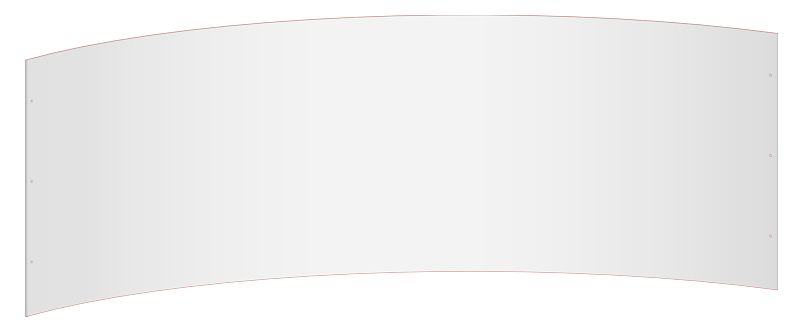

Plastic
"Parts
A" (PVC) |
| Code |
Photo |
Pieces |

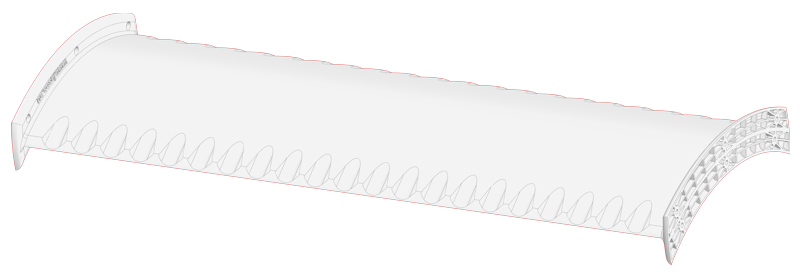

| 6010 |
 |
56 |

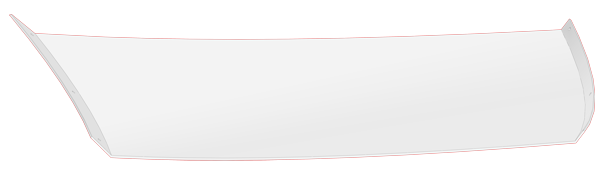

| 6510 |
 |
16 |

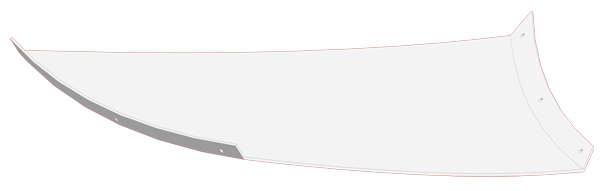

| 6511 |
 |
16 |

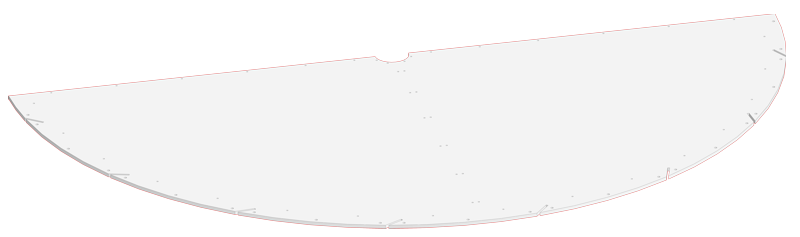

| 6810 |
 |
2 |

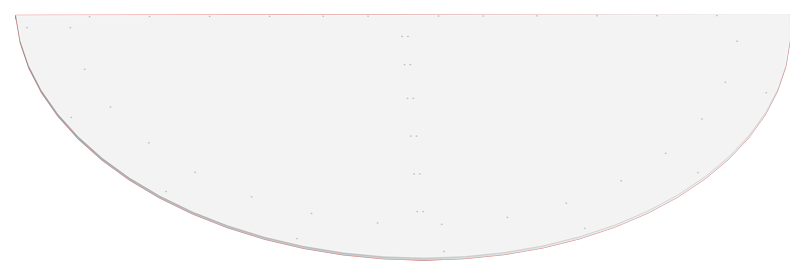

| 6811 |
 |
2 |
| 6812 |
 |
4 |
| 6813 |
 |
1 |
| 6814 |
 |
1 |

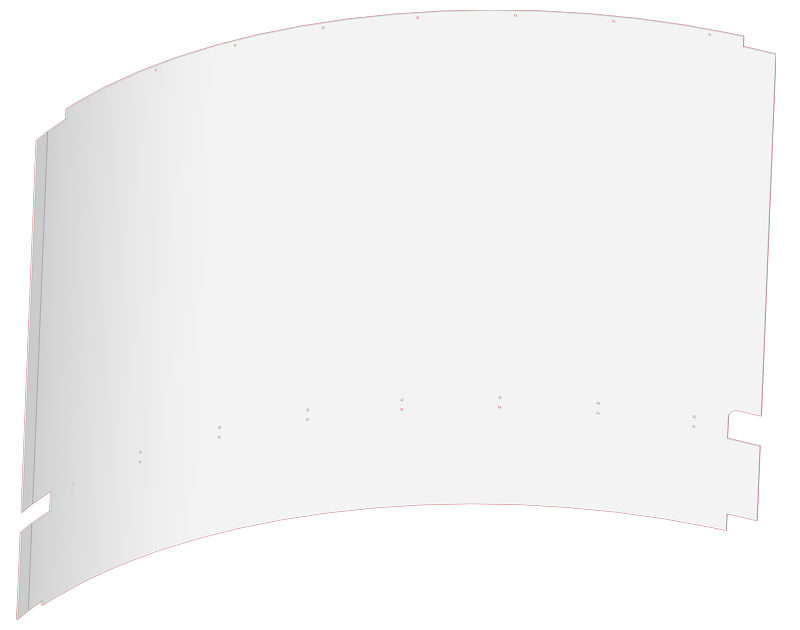

| 6818 |
 |
1 |

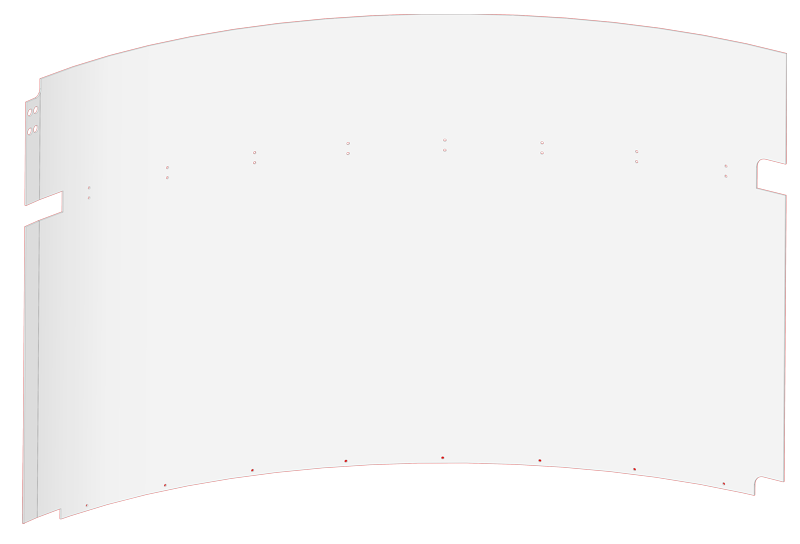

| 6819 |
 |
1 |

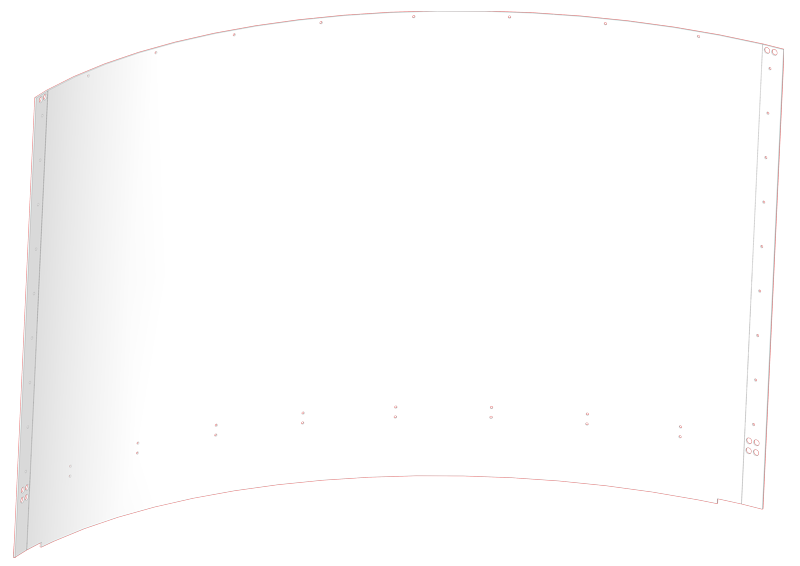

| 6820 |
 |
3 |

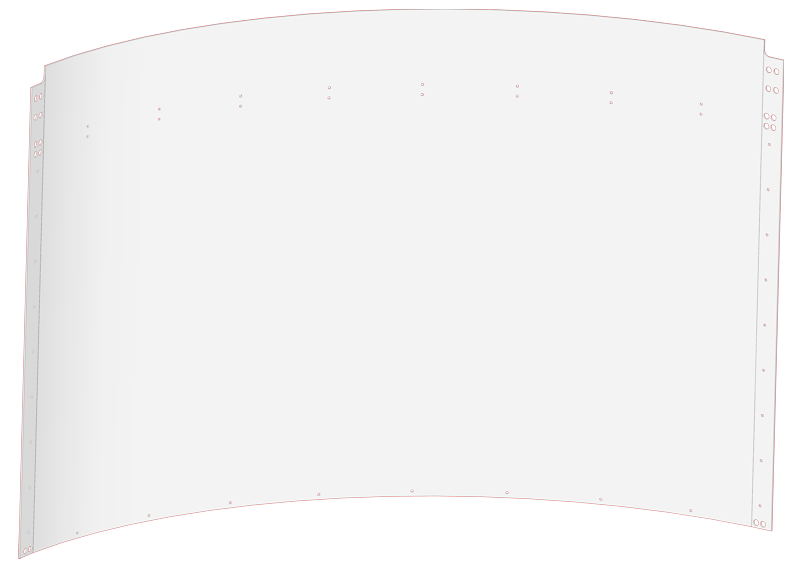

| 6821 |
 |
3 |

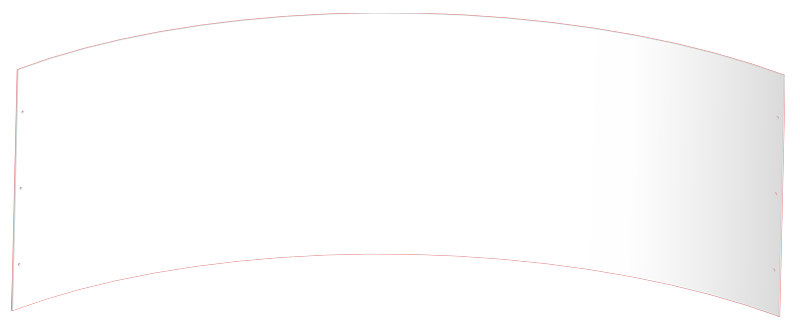

| 6824 |
 |
4 |

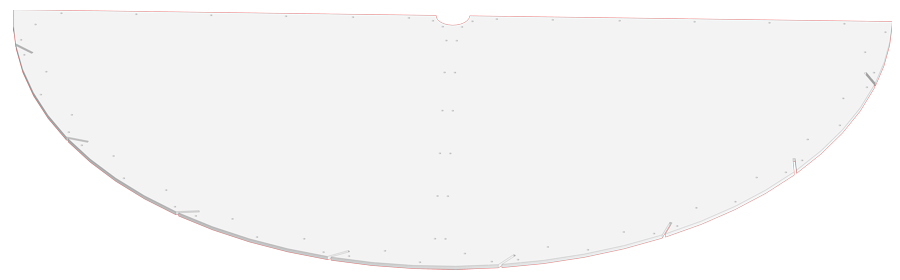

| 6825 |
 |
2 |
| 6826 |
 |
4 |

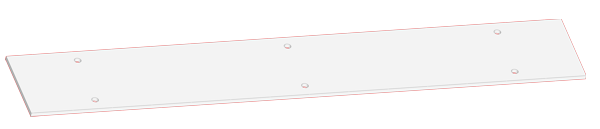

| 6830 |
 |
8 |

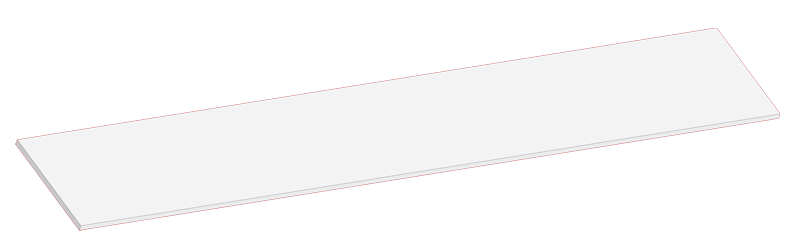

| 6831 |
 |
8 |
| 7011 |
 |
16 |
| 7012 |
|
16 |
|
Special
equipment "RParts" |
|
Code |
Photo |
Pieces |
|
H8020 |
 |
1 |
|
G10059 |
 |
1 |
|
G8520 |
 |
1 |
|
H7010 |
 |
1 |
|
H108 |
 |

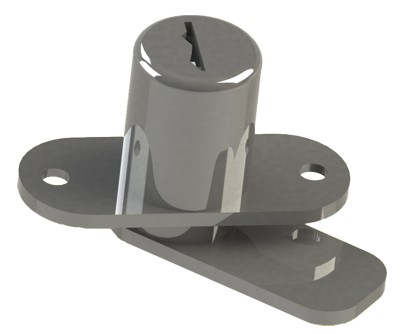

3 |
|

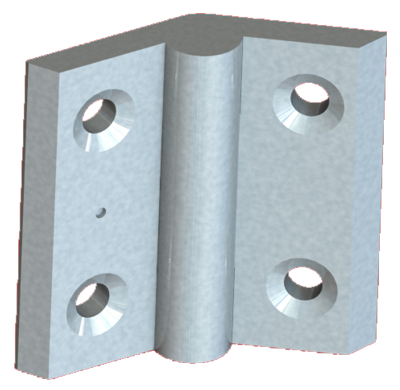

H410 |
 |
3 |
|

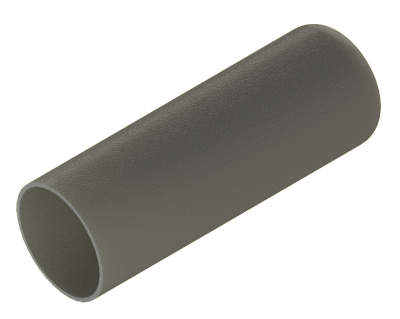

H5012 |
 |
1 |
|

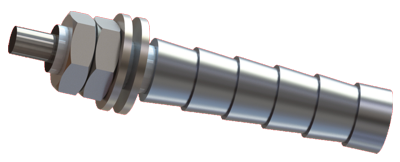

H3500 |
 |
16 |
|
Special
metallic components (Cr42Mo4) |
|
Code |
Description |
Photo |
Pieces |
|
2431 |

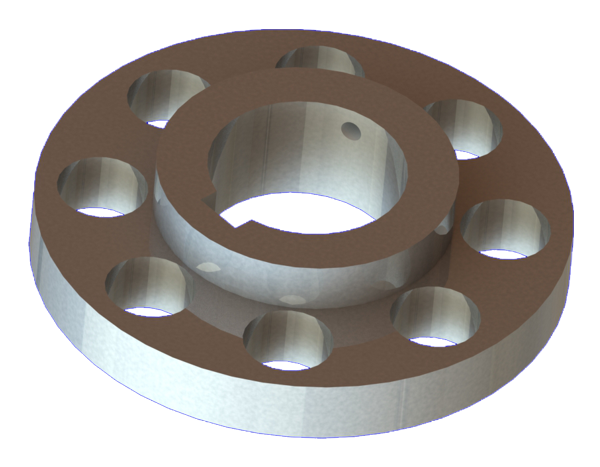

FLANGE
FOR GENERATOR |
 |
1 |
|
2415 |

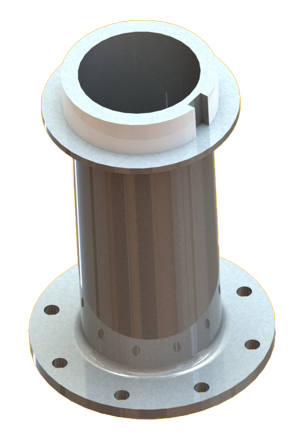

UP
SHAFT |
 |
1 |
|
2416 |

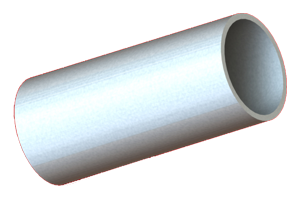

UP
SHAFT |
 |
1 |
|

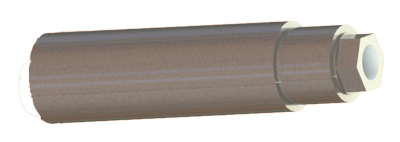

2417 |
UP
SHAFT |
 |
1 |
|
2418 |

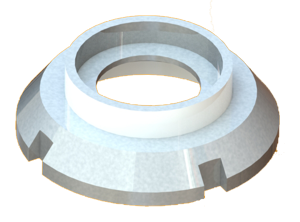

UP
SHAFT |
 |
1 |
|
2419 |

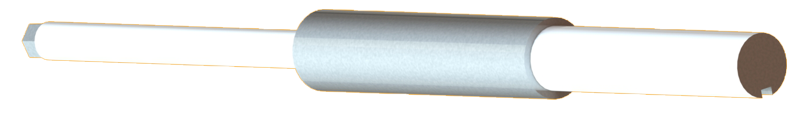

UP
SHAFT |
 |
1 |
|

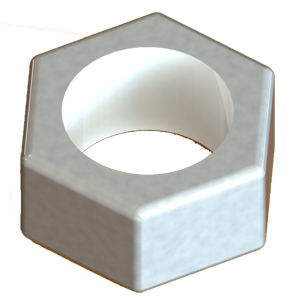

2420 |
UP
SHAFT |
 |
1 |
|

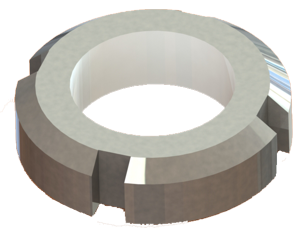

2421 |
UP
SHAFT |
 |
1 |
|
2510 |

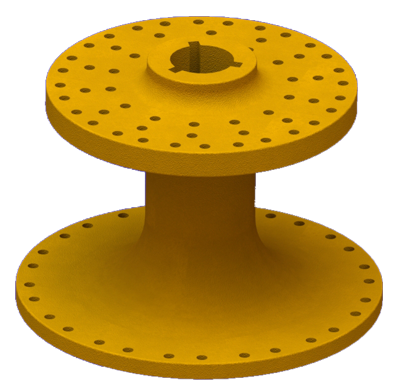

HUB
FOR DOWN PULLEY |
 |
1 |
|
Connectors
- Bolts Gear box parts are not included in this list. |
|
Code |
Specification |
Photo |
Pieces |
|
BO3806 |
M6
X 10 DIN 914 AISI 316 SS |
 |
2 |
|

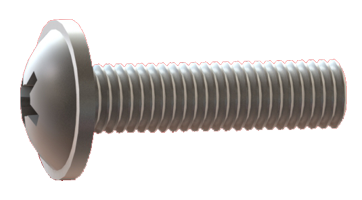

BO4049 |
M5
X 20 FLAT HEAD AISI 316 SS |
 |
408 |
|

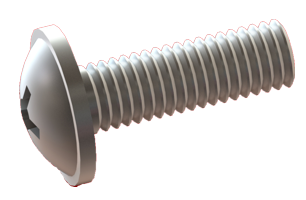

BO4052 |
M5
X 16 FLAT HEAD AISI 316 SS |
 |
348 |
|
BO4059 |
M5
X 25 FLAT HEAD AISI 316 SS |
 |

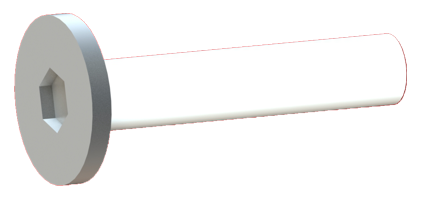

88 |
|

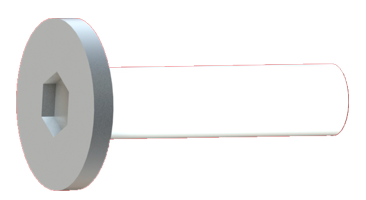

BO4061 |
M5
X 20 FLAT HEAD AISI 316 SS |
 |
14 |
|

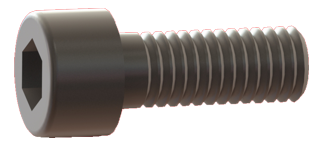

BO4062 |
M6
X 16 DIN 912 AISI 316 SS |
 |
332 |
|

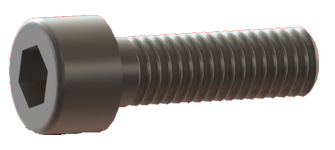

BO4063 |
M6
X 20 DIN 912 AISI 316 SS |
 |
554 |
|

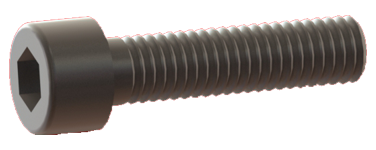

BO4064 |
M6
X 25 DIN 912 AISI 316 SS |
 |
902 |
|

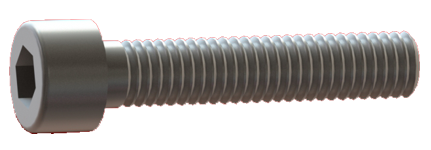

BO4065 |
M6
X 30 DIN 912 AISI 316 SS |
 |
94 |
|

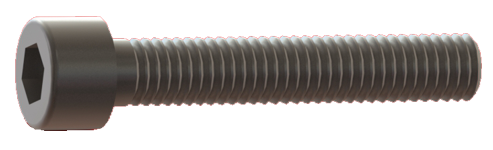

BO4066 |
M6
X 35 DIN 912 AISI 316 SS |
 |
84 |
|

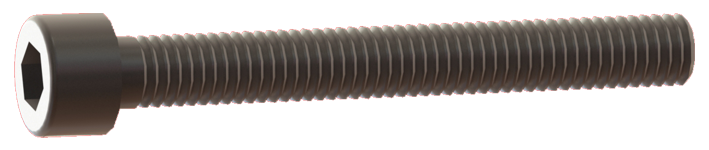

BO4069 |
M6
X 50 DIN 912 AISI 316 SS |
 |
16 |
|

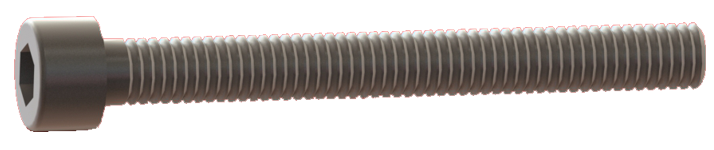

BO4070 |
M6
X 55 DIN 912 AISI 316 SS |
 |
12 |
|

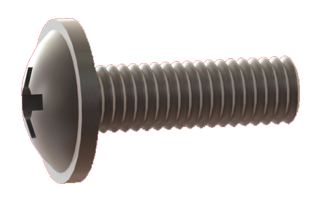

BO4075 |
M6
X 20 FLAT HEAD AISI 316 SS |
 |
48 |
|
BO4083 |
M8
X 20 DIN 912 AISI 316 SS |
 |
46 |
|

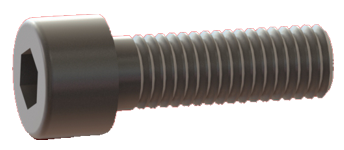

BO4084 |
M8
X 25 DIN 912 AISI 316 SS |
 |
52 |
|

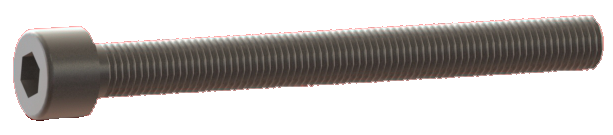

BO4095 |
M8
X 80 DIN 912 AISI 316 SS |
 |
2 |
|
BO4102 |
M10
X 20 DIN 912 AISI 316 SS |
 |
9 |
|

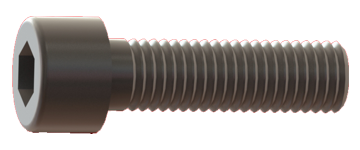

BO4113 |
M10
X 35 DIN 912 AISI 316 SS |
 |
8 |
|

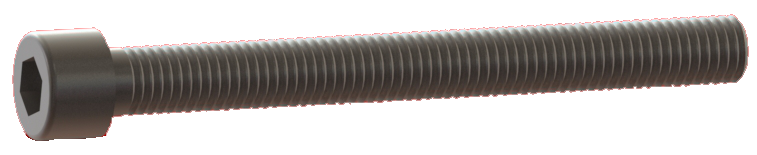

BO4120 |
M10
X 100 DIN 912 AISI 316 SS |
 |
4 |
|

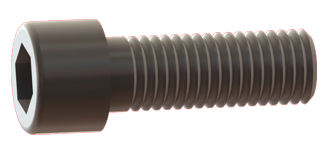

BO4127 |
M12
X 35 DIN 912 AISI 316 SS |
 |
3 |
|
BO4333 |
M6
X 20 CONICAL HEAD DIN 912 AISI 316 SS |
 |
20 |
|
Connectors
- Nuts Gear box parts are not included in this list. |
| Code |
Specification |
Photo |
Pieces |
| N5051 |

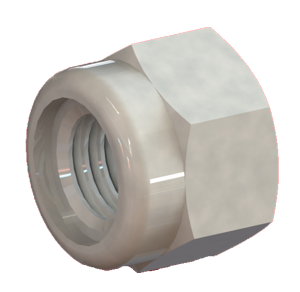

M5
SAFETY DIN EN ISO 7040 |
 |
762 |
| N5053 |
M5

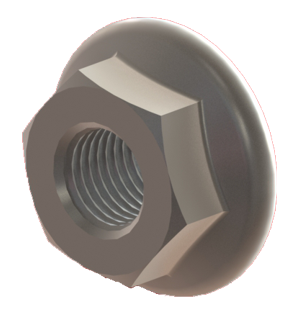

HEX TYPE 2 FLANGE |
 |
48 |
| N5060 |

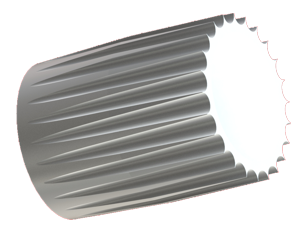

M5
X 10 INNER |
 |
48 |

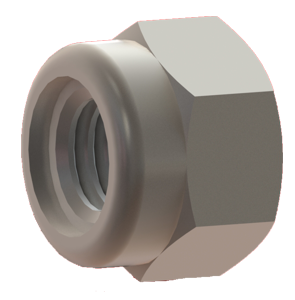

| N5061 |
M6
SAFETY DIN EN ISO 7040 |
 |
1.942 |
| N5081 |
M8
SAFETY DIN EN ISO 7040 |
|
108 |

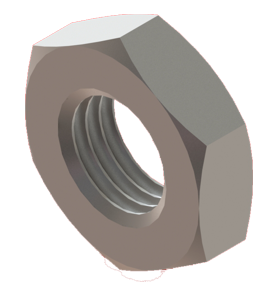

| N5101 |
M10
SAFETY DIN EN ISO 7040 |
|
8 |
| N5102 |
M10
HEX ISO 4035 |
 |
12 |
| N5121 |
M12
SAFETY DIN EN ISO 7040 |
|
3 |
| N6062 |
M6
HEX ISO 4035 |
|
72 |
|
Connectors
- Washers Gear box parts are not included in this list. |
| Code |
Specification |
Photo |
Pieces |
| W1304 |
M6
X 14 X 2 mm AISI 316 SS |
 |
24 |
| W5162 |
M8 X 20
X 2 mm AISI 316 SS |
|
10 |

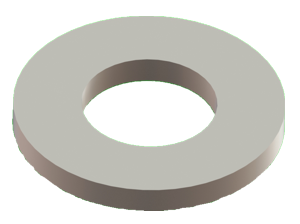

| W5222 |
M10 X 20
X 2 mm AISI 316 SS |
|
16 |
|
Connectors - Lip seals Gear box parts are not included in this list. |
| Code |
Specification |
Photo |
Pieces |

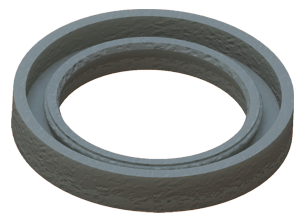

| SW1001 |
M30
X 45 X 7 mm |
 |
2 |
| SW1006 |
M45
X 75 X 12 mm |
|
1 |
|
Connectors
- Safety washers Gear box parts are not included in this list. |
| Code |
Specification |
Photo |
Pieces |
|

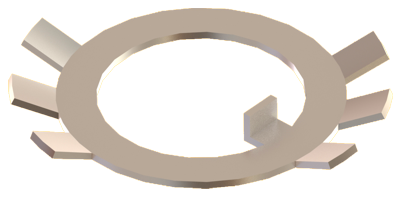

CW105 |
M24 FASTENER WASHER NWFRN |
 |
1 |
| CW106 |
M60 FASTENER WASHER NWFRN |
|
1 |
|
Pins
and shafts keys Gear box parts are not included in this list. |
| Code |
Specification |
Photo |
Pieces |
| PK102 |
SHAFT
KEY 6 X 25 X 10 |
 |
6 |
| PK201 |
RIVET
M3 X 5 |
 |
18 |

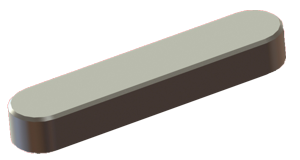

| PK308 |
SHAFT
KEY FOR GENERATOR FLANGE 12 X 56 X 8 |
 |
1 |

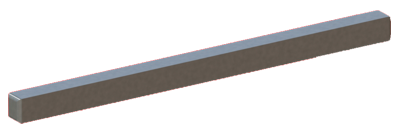

| PK381 |
SHAFT
KEY FOR UP SHAFT 5 X 6 X 100 |
 |
1 |
|
Bearings Gear box parts are not included in this list. |
| Code |
Specification |
Photo |
Pieces |

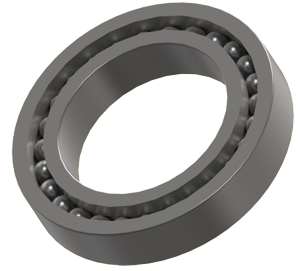

| B4502 |
DEEP GROOVE 30 X 47 X 9 (19 - 61906) (GB-276-94) |
 |
3 |
