Phone:+86 13333092057 Email: iasos@iasos.eu
Phone: +30 6999398373 Email: coyote@iasos.eu
Company
Products
Calculator
Sales
Photo Video
Publications
How to use
Contact us

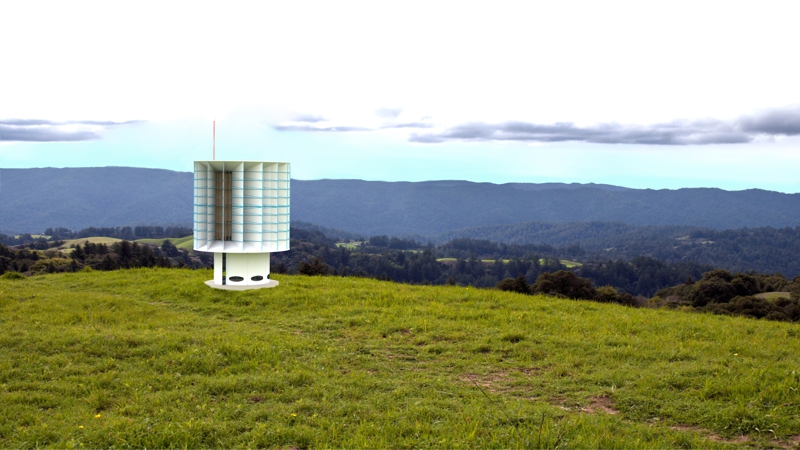

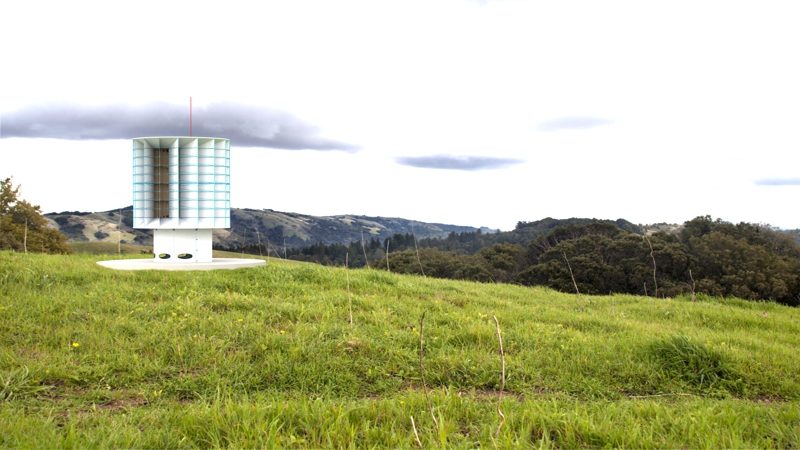

Vertical axis wind turbine: "Iasos III".
Nominal power: 4 KVA
How you can be co-producer.
Download
General instructions
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines

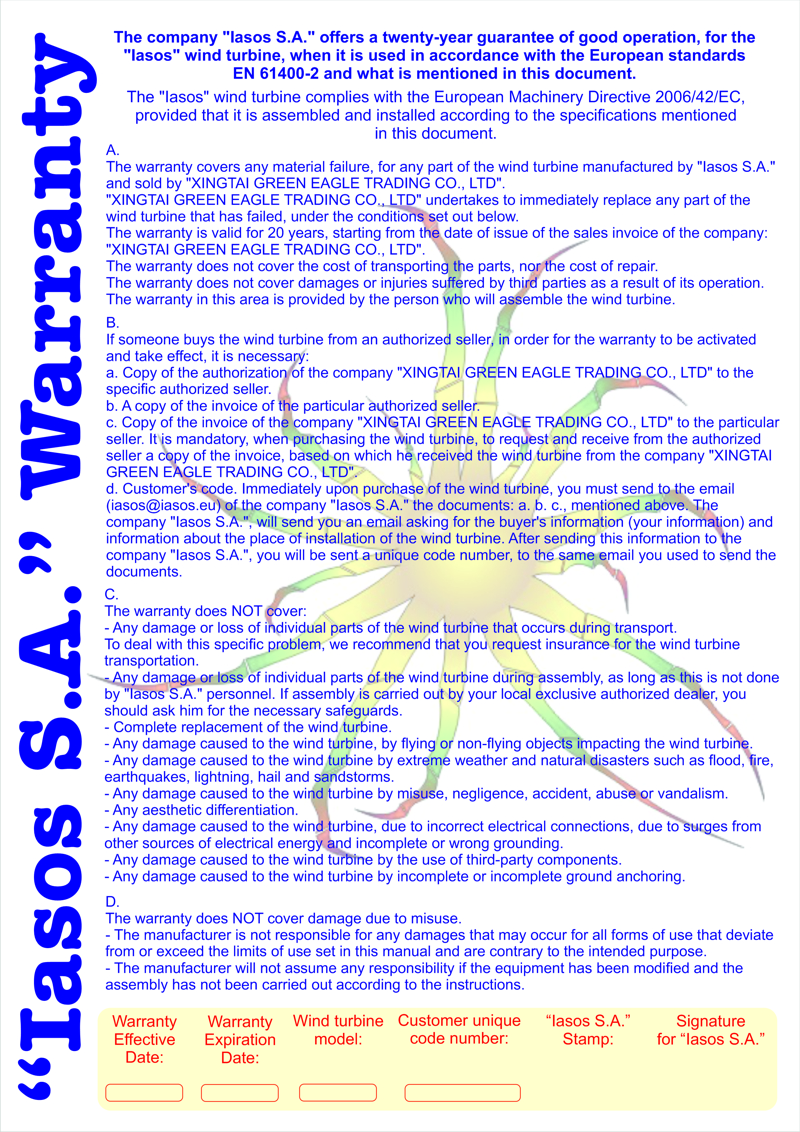

Warranty
Instructions for choosing the installation point

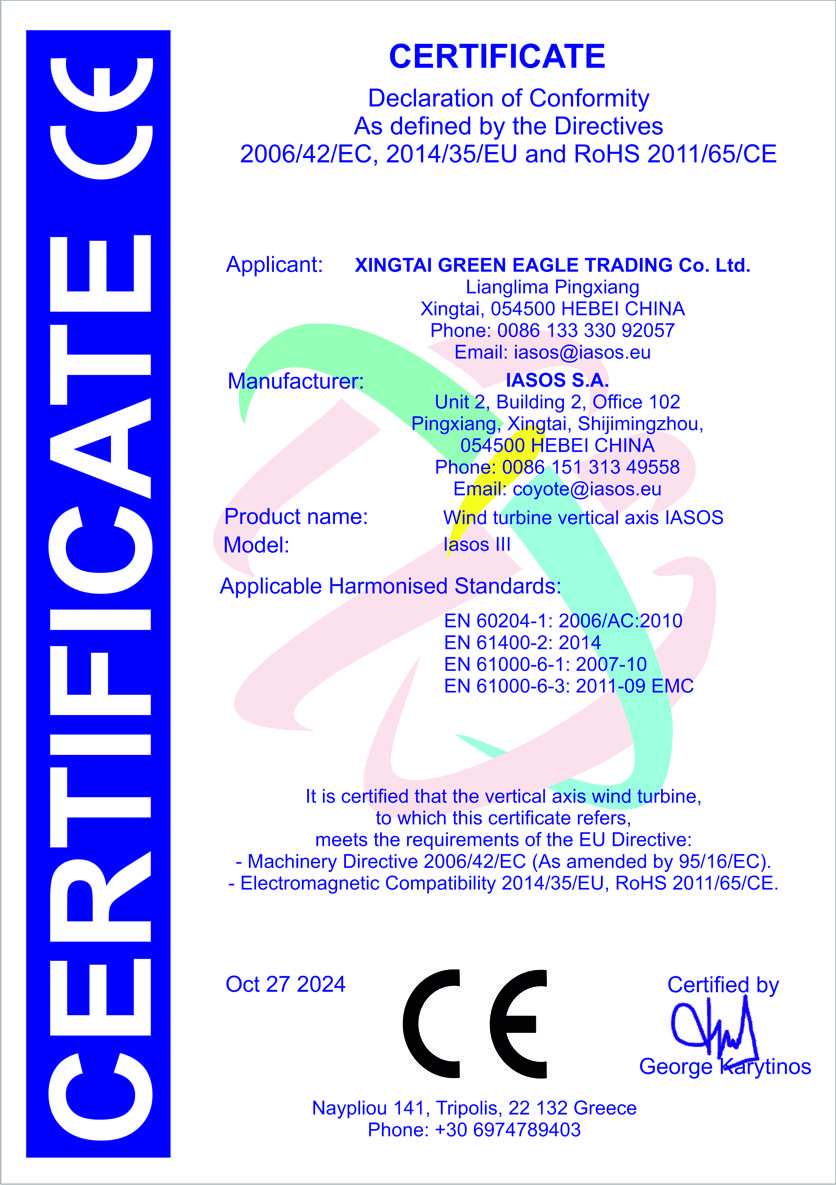

Declaration of conformity
Instructions for anchoring at the final installation point
Video for "wind rose"
Assembly and installation instructions
Video how can use the software
Uses of the wind turbine
Video for "Iasos I"
Connection to consumption and other energy sources
Video how to choose a model
Power data and charts
Video how to use
Equipment included in the wind turbine
Equipment NOT included in the wind turbine
Software to calculate all parameters of the wind turbine
First
Back
Wind Turbine Parts Catalog

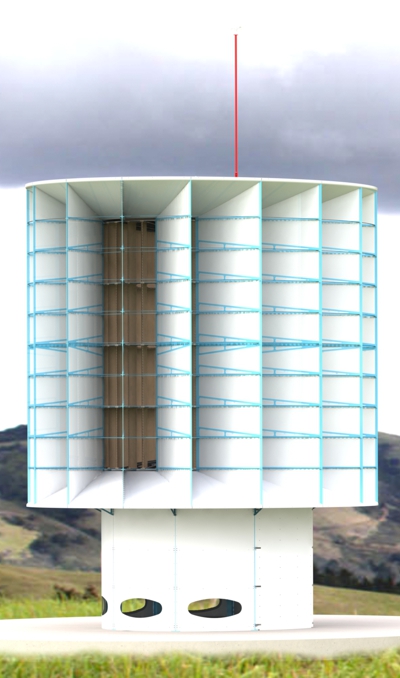

Technical parameters - Specifications.
Wind turbine.
Model:
"Iasos III"

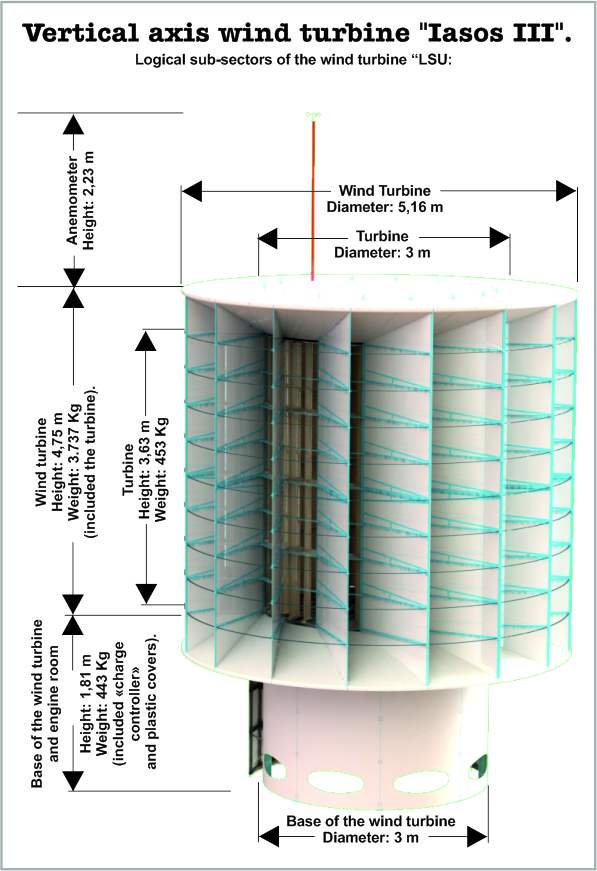

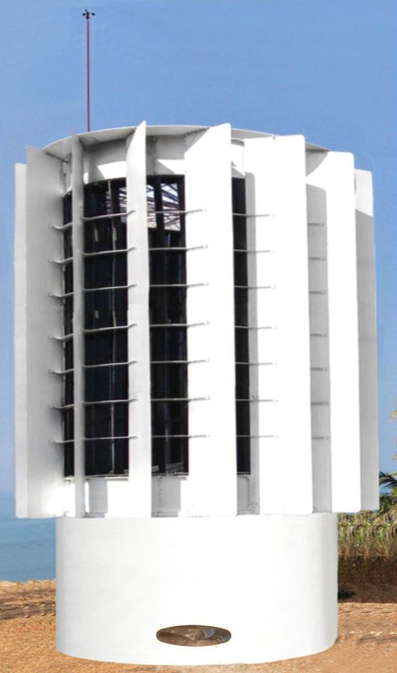

Individual wind turbine sectors
Wind turbine with low wind speed, Vertical axis wind turbines
Nominal power:
4 KVA
Size of the base of the wind turbine:
Diameter:
3,0 m
Height:
1,81 m
Weight:
443,0 Kg
Sizes of the wind turbine:
Diameter:
5,16 m
Height:
4,75 m
Weight:
3.737 Kg
Sizes of turbine:
Diameter:
3,0 m
Height:
3,634 m
Weight:
453,0 Kg
Sizes of the wind turbine as a whole:
Diameter:
5,16 m
Height:
6,56 m
Weight:
4.180 Kg
Surface, vertical projection of the wind turbine, into the wind: (including diffusers, not including the base of the wind turbine)
24,51 m2
Wind speeds at which the wind turbine can generate electricity:
From:
0,9 m/s
Wind turbine with low wind speed, Vertical axis wind turbines
To: (with full load)
10,8 m/s
To: (at 80% load or less)
11 m/s
Noise during operation:
0 db
Vibrations during operation:
Zero
Permissible operating temperatures:
From:
- 14 C0
To:
+ 48 C0
Permissible operating relative humidity:
92%
Aerodynamic factor: (depending on wind speed)
Minimum:
8,56
Maximum:
25,65
Safety factor:
5
Frame construction material:
Q235 JS,
DIN 1.0037
A36 ASTM
Cutting and processing method:
CNC Laser
Welding method:
Robotic welding with TIG
Cleaning method before painting:
Phosphating
Dye method:
Electrostatic paint of three consecutive layers
Maximum wind load:
50,898 N
Maximum wind speed:
160 Km/h
Maximum snow load:
2 KN/m2
Maximum permissible weight on the roof:
256 Kg
Maximum permissible weight on the lower surface of the turbine chamber:
231 Kg
Number of wind turbine base pylons:
8
Total surface area of flanges in contact with the ground:
1.352 cm2
Wind turbine with low wind speed, Vertical axis wind turbines
Standards under which operation was tested:
Electromagnetic compatibility, emissions:
EN 61000 - 6 - 3
Electromagnetic compatibility, immunity:
EN 61000 - 6 - 1
Box for trasportation:
An entire container size 20 ft is used for transportation.
Plastic components.
Plastic parts manufacturing material:
PVC 1,7%, 6% UV
Cutting and processing method:
CNC Laser
Method of making turbine blades:
Extruder
Steel components.
Shafts construction material:
Cr42Mo4
DIN 1.7225
Fastener construction material (screws, nuts, etc.):
AISI 316 (SS)
Turbine.
Number of turbine blades:
136
Total positive blades area:
42,432 m2
Total area of blades active in the wind:
31,204 m2
Surface, vertical projection of the turbine, into the wind:
10,902 m2
Maximum operational speed of rotation of the turbine:
22,15 rpm
Maximum permissible speed of rotation of the turbine:
100 rpm
Maximum turbine torque:
5.955 Nm
Wind turbine with low wind speed, Vertical axis wind turbines
Turbine speed control techniques:
Dump load:
Yes
Turbine stopping techniques: (braking)
Manual brake:
Yes
Manual electric brake:
Yes
Dump load:
Yes
Turbine rotation direction:
Clockwise
Blades material:
Fiberglass
Turbine pulleys.
Construction material of the turbine pulleys:
Aluminum 6063 T6
Cutting and processing method:
CNC Laser
Welding method:
Welding with TIG
Dye method:
Anodizing
Generators.
Number of generators installed:
2
Installed generator model:
Ç8020
Type of generator installed:
Coreless permanent magnet generator
Coreless generator for wind turbine, coreless generators prices
Rated generator power:
2 KVA
Rated output voltage of generator (phase voltage):
180 ACV
Rated rotation speed:
300 rpm
Generator power factor: (cosö)
0,9851
Maximum torque supplied by the generator:
74,8 Nm
Maximum generator efficiency:
94,9%
Minimum generator efficiency:
75,3 %
Connection of coils, type:
Y
Phases:
Three
Master controller for wind turbine, coreless generators prices
Generator weight:
45 Kg
"Master controller".
The "Master controller" automatically checks and adjusts all the operating parameters of the wind turbine, except those that concern the two generators individually. Includes:
1. Digital anemometer.
2. Automatic power source selection switch.
MPPT charger controller
3. Digital displays of all operating parameters.
4. Digital regulators of the operating parameters of the wind turbine.
5. "Extra load" function.
"Charger controller".
Number of "charger controllers" installed:
2
Model of "charger controller":
H8520
Rated power of "charger controller":
4 Kw
Rated output voltage of "charger controller":
48 DCV
Gear boxes for wind turbines
Types and number of inputs:
Three phase AC:
2
Battery charging methods:
Bulk:
Yes
Absorption:
Yes
Buck:
Yes
Functions of "charger controller":
Wind turbine with low wind speed, Vertical axis wind turbines
MPPT (Maximum Power Point Tracking)
Yes
MCU
Yes
DUMP LOAD
2 Kw
BOOST
Yes
BUCK
Yes
HYBRID SYSTEM
Yes
"Gear box".
Power transmission installed:
Gear box
Model:
G10148
Power transmission ratio:
1 X 14,8
Rated power:
45 Kw

Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
