Vertical axis wind turbine: "Iasos III".

Nominal power: 4 KVA

Download		General instructions
Warranty		Instructions for choosing the installation point
Declaration of conformity		Instructions for anchoring at the final installation point
Video for "wind rose"		Assembly and installation instructions
Video how can use the software		Uses of the wind turbine
Video for "Iasos I"		Connection to consumption and other energy sources
Video how to choose a model		Power data and charts
Video how to use		Equipment included in the wind turbine
		Equipment NOT included in the wind turbine
		Software to calculate all parameters of the wind turbine
First	Back	Wind Turbine Parts Catalog

Power data and charts.

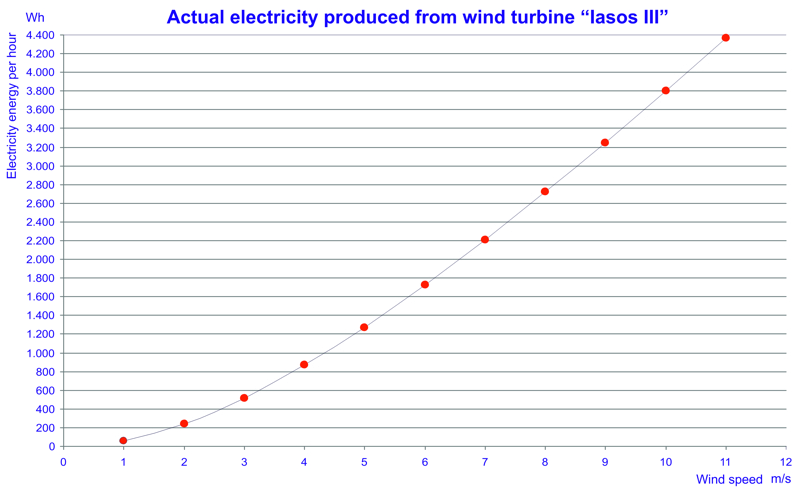

Actual electricity produced "Iasos III"
Wind: m/s	1	2	3	4	5	6	7	8	9	10	11
Per hour: Wh	59,2	236,8	513,1	868,3	1.272,8	1.726,7	2.210,1	2.723,2	3.246,1	3.798,7	4.370,9

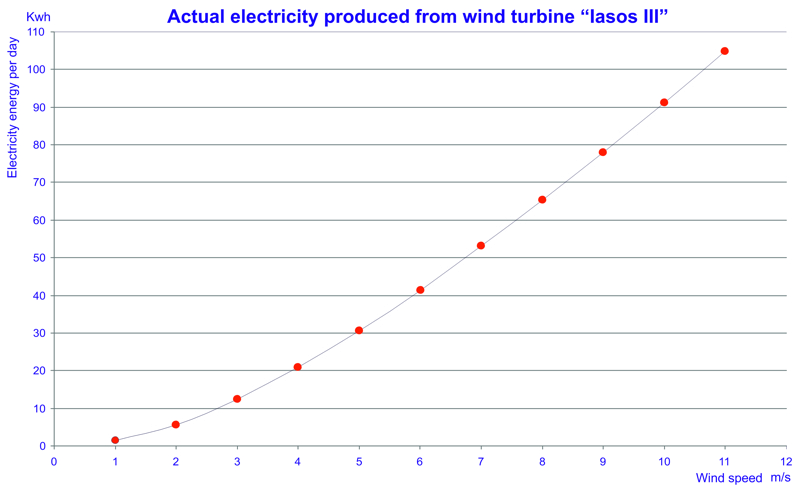

Per day: Kwh	1,42	5,68	12,31	20,84	30,55	41,44	53,04	65,36	77,91	91,17	104,90
Per month: Kwh	43,22	172,86	374,54	633,83	929,14	1.260,47	1.613,40	1.987,94	2.369,68	2.773,03	3.190,78
Per year: Kwh	518,6	2.074,4	4.494,5	7.606,1	11.149,7	15.125,6	19.360,8	23.855,2	28.436,1	33.276,3	38.289,4

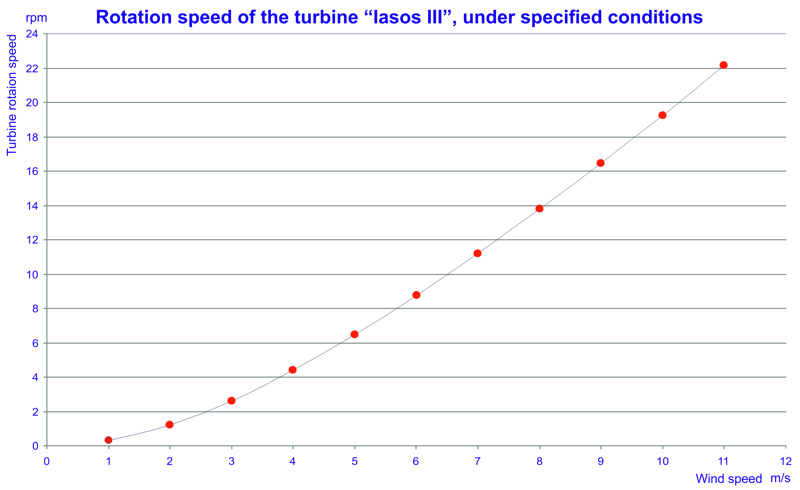

Average rotational speed of the turbine, under the specified conditions:
rpm	0,30	1,2	2,60	4,40	6,45	8,75	11,20	13,80	16,45	19,25	22,15
Nominal turbine torque, with the specific wind speed:
Nm	48,83	187,61	436,84	787,13	1.234,34	1.777,78	2.418,74	3.159,31	4.001,44	4.946,33	5.994,06

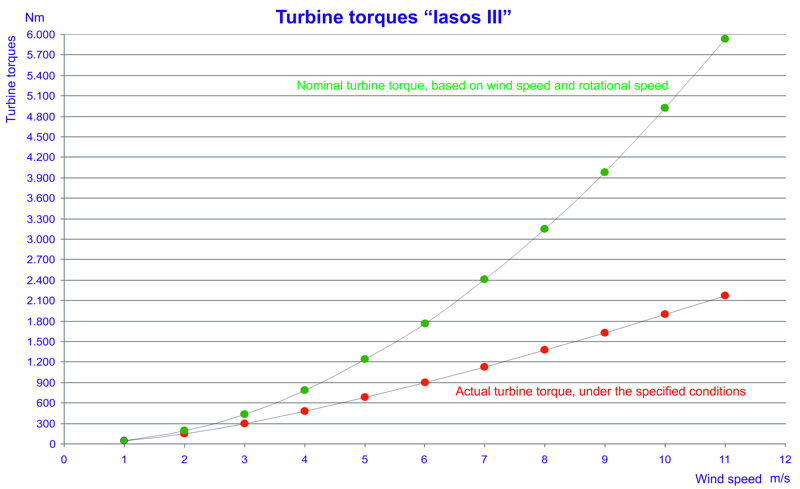

Nominal turbine torque, based on wind speed and rotational speed:
Nm	46,70	191,80	437,03	781,05	1.238,57	1.763,08	2.407,10	3.146,83	3.979,48	4.917,56	5.926,66
Actual turbine torque, under the specified conditions:
Nm	41,06	146,58	295,68	473,48	676,85	892,71	1.123,85	1.370,36	1.630,64	1.897,53	2.174,82

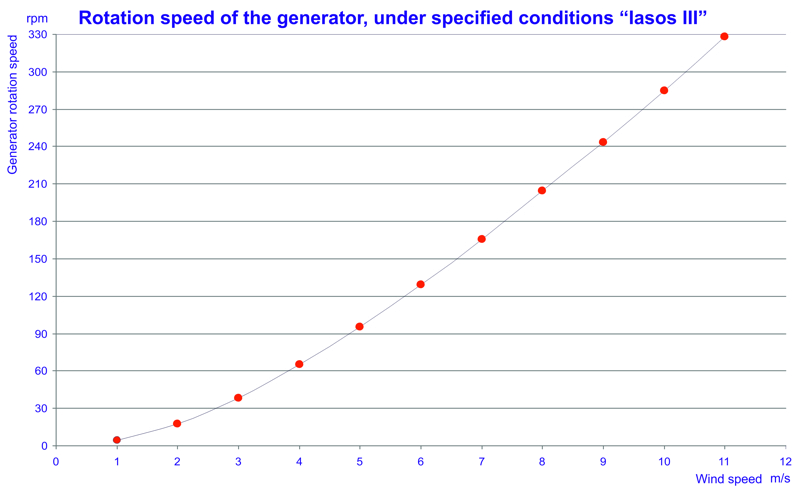

Average rotation speed of the generator, under the specified conditions:
rpm	4,44	17,76	38,49	65,12	95,46	129,50	165,76	204,24	243,46	284,90	327,82

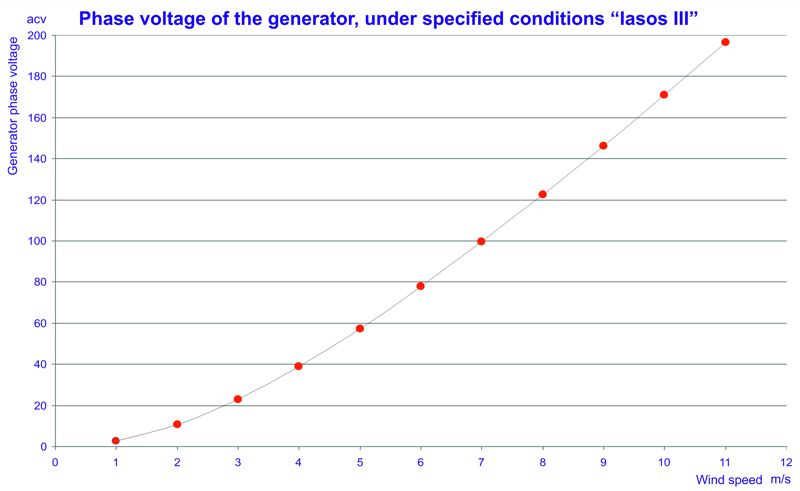

Phase voltage of the generator, under the specified conditions:
acv	2,66	10,66	23,09	39,07	57,28	77,70	99,46	122,54	146,08	170,94	196,69

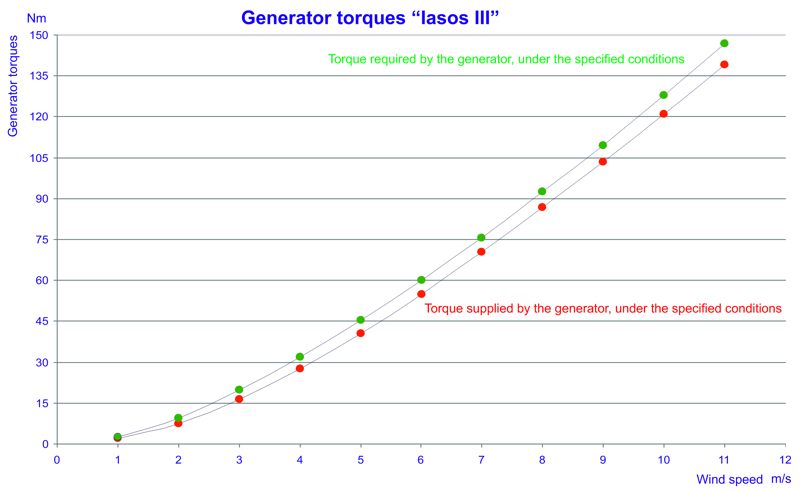

Torque supplied by the generator, under the specified conditions:
Nm	1,89	7,54	16,34	27,65	40,54	54,99	70,39	86,73	103,38	120,98	139,20
Torque required by the generator, under the specified conditions:
Nm	2,49	9,59	19,78	31,98	45,29	59,97	75,63	92,4	109,62	127,87	146,78

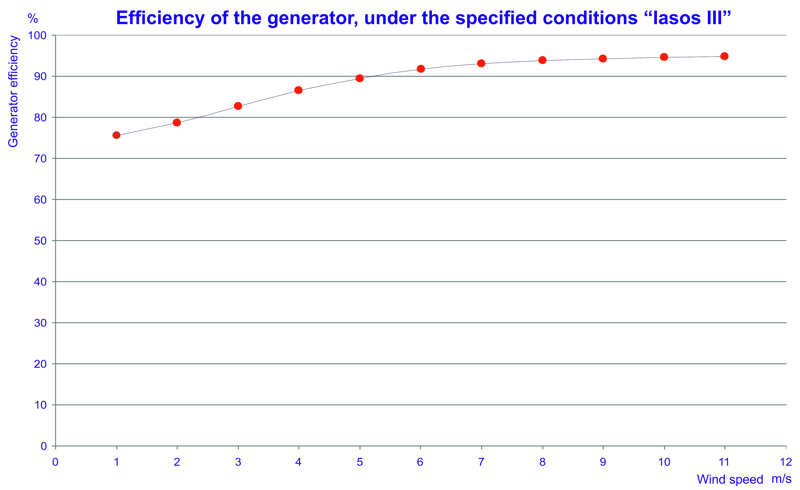

Efficiency of the generator, under the specified conditions:
%	75,62	78,68	82,62	86,46	89,50	91,69	93,06	93,86	94,31	94,61	94,84

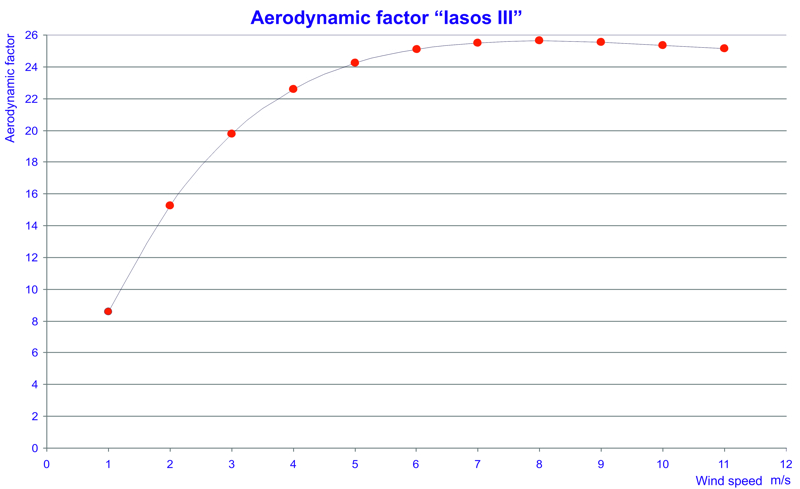

Aerodynamic factor:
%	8,56	15,27	19,78	22,61	24,26	25,12	25,49	25,65	25,56	25,37	25,14
Ideal power transmission ratio:
1 Χ	4	7,0	9,2	10,0	12,0	12,9	13,8	14,6	15,6	16,9	17,0
Actual power transmission ratio:
1 Χ	14,8	14,8	14,8	14,8	14,8	14,8	14,8	14,8	14,8	14,8	14,8
