Vertical axis wind turbine: "Iasos III".
Nominal power: 4 KVA
Download
General instructions
Wind turbine, wind generator, wind mill, Wind power, Green energy, Wind turbine with some wind, Vertical axis wind turbines
Warranty
Instructions for choosing the installation point
Declaration of conformity
Instructions for anchoring at the final installation point
Video for "wind rose"
Assembly and installation instructions
Video how can use the software
Uses of the wind turbine
Video for "Iasos I"
Connection to consumption and other energy sources
Video how to choose a model
Power data and charts
Video how to use
Equipment included in the wind turbine
Equipment NOT included in the wind turbine
Software to calculate all parameters of the wind turbine
First
Back
Wind Turbine Parts Catalog
Equipment included in the wind turbine
Generator "H8020".
Nominal power: 2 KVA
2 pieces
Coreless generator for wind turbines
Generator specifications:
Type:
Coreless, axial with permanent magnets
Rated rotation speed:
300 rpm
Rated output voltage:
180 acv
Type coil connection:
Y
Coils per phase:
15
Phases:
Three
Pair of magnets:
20
Shell construction material:
Aluminum
Shaft diameter:
45 mm
Weight:
45 Kg

Master Controller
Master controller for wind turbines

Charger Controller "H8520"
Nominal power: 4 KW
MPPT charger controller
The "charger controller" is used to convert the electric current produced by the generator into an electric current suitable for charging the batteries. The buyer should make all the necessary settings on the "charger controller" so that its operation is efficient, depending on the available batteries.
This "charger controller" has the following technical characteristics:
- It has an electronic PWM device to protect the wind turbine from over speed, over voltage and over power.
- It has the ability to automatically calculate the maximum capacity of the batteries and automatically calculate the charging rate and maximum charging current.
- It is equipped, in addition to the automatic, digitally adjustable, electric braking system and with an autonomous braking system, activated by the user with a switch.
- It has integrated BOOST and DUCK technology. The generator installed in the wind turbine has a variable output voltage, depending on the intensity of the wind. When the wind is not strong and the generator voltage is lower than the battery voltage, the "charger controller" automatically increases the voltage to be suitable for charging the batteries (BOOST configuration). Accordingly, when the wind is strong and the voltage of the generator is higher than the voltage of the batteries, then again automatically the "charger controller" lowers the voltage so that it is suitable for charging the batteries (BUCK configuration).
- It has integrated MCT and MPPT technologies.
When the wind speed is low and therefore the rotational speed of the wind turbine is low, then if the generator is subjected to a heavy load, the rotational speed of the turbine will decrease even more, with negative consequences on the overall efficiency of the system. To avoid this problem, the "charger controller" is equipped with two special electronic devices. One monitors the maximum current power (max current tracking - MCT) and the other the instantaneous power (max power point tracking - MPPT). Thus, by having these two pieces of information, it can automatically adjust the amount of load that the generator can be loaded with, without disturbing the overall efficiency of the system.
- Ability to connect to a computer. The serial port enables the interface with a computer, not only for data transfer and analysis, but also for setting the operating parameters.

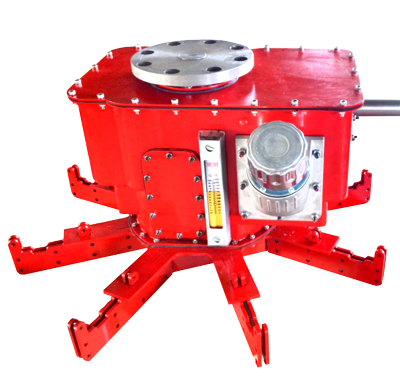

Gear box "G10148"
Nominal power: 45 KW
gear box for wind turbines, Speed booster
The gear box is used to increase the rotation speed of the generator.
The gearbox has an oil temperature indicator and an oil level indicator.
The gearbox housing as well as the special oil filling stage are designed to act as a cooling device.
The gearbox can be removed and reassembled on the wind turbine in a simple process.
The gear box is designed in such a way that it can accept the shock of a violent braking by the electric brake .

Manual safety brake.
Model: "H7010"
Manual safety break for wind turbines
The manual safety brake stops the turbine shaft. It works by manually rotating an endless shaft which tightens the two calipers that fit into the brake disc

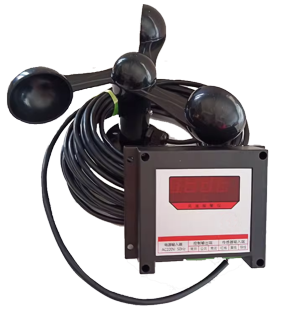

Digital anemometer.
Model: "H8008"
Digital anemometer for wind turbines

Automatic change-over transfer switch.
Model: "H8021"
Used so that the user can freely choose each time the source of electricity. Wind turbine or grid.
AUTOMATIC CHANGE OVER TRANSFER SWITCH 60A 4P,
