| Vertical
axis wind turbine:
"Iasos IIIa". |
Nominal
power: 7 KVA |
| Download |
 |
||
|
Power
data and charts. |

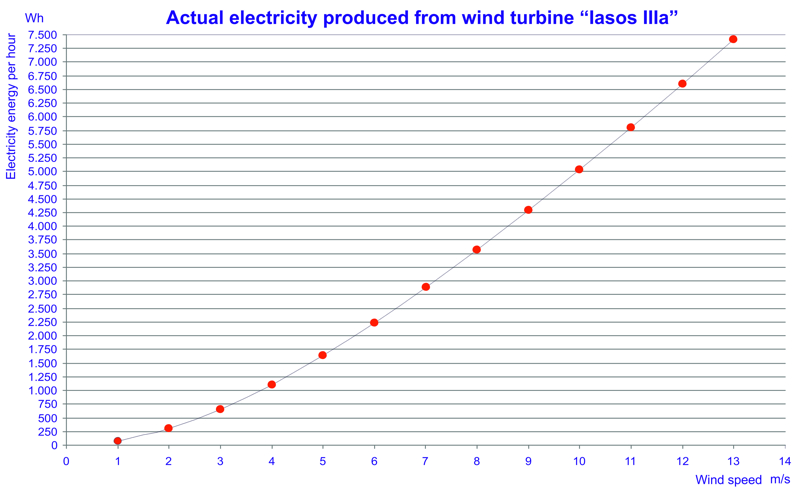

| Actual
electricity produced "Iasos IIIa" |
|||||||||||||
|
Wind:
m/s |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
| Per
hour: Wh |
69,42 |
305,43 |
652,52 |
1.096,78 |
1.638,23 |
2.235,22 |
2.887,73 |
3.568,02 |
4.289,95 |
5.039,65 |
5.803,23 |
6.594,58 |
7.413,70 |

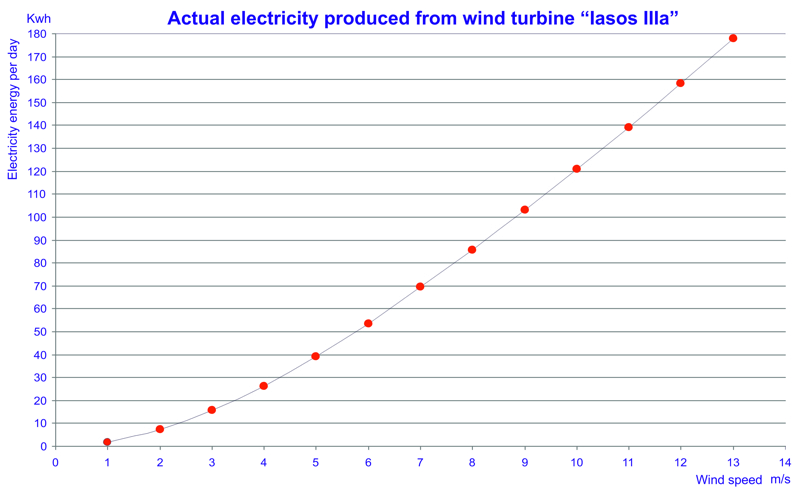

| Per
day: Kwh |
1,67 |
7,33 |
15,66 |
26,32 |
39,32 |
53,65 |
69,71 |
85,63 |
102,96 |
120,95 |
139,28 |
158,27 |
177,93 |
| Per
month: Kwh |
50,67 |
222,97 |
476,34 |
800,65 |
1.195,91 |
1.631,71 |
2.108,05 |
2.604,65 |
3.131,66 |
3.678,94 |
4.236,36 |
4.814,05 |
5.412,00 |
| Per
year: Kwh |
608,09 |
2.675,6 |
5.716,1 |
9.607,8 |
14.350,9 |
19.580,5 |
25.296,5 |
31.255,8 |
35.580,0 |
44.147,3 |
50.836,3 |
57.768,5 |
64.944,1 |

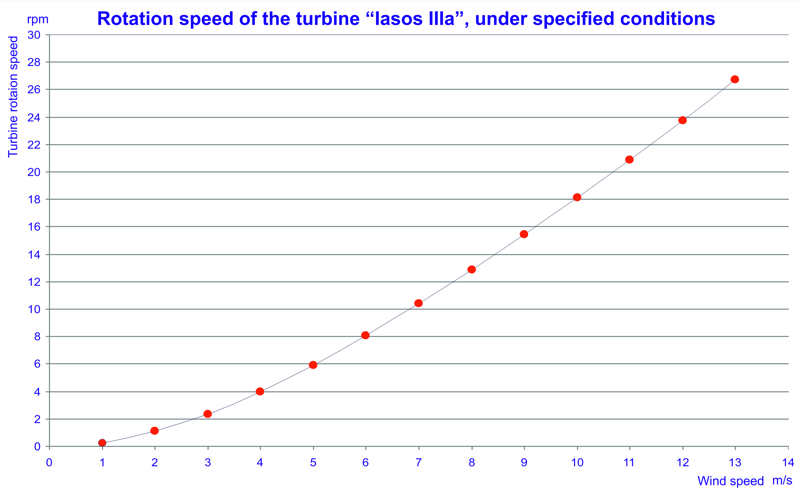

| Average rotational speed of the turbine, under the specified conditions: |
|||||||||||||
| rpm |
0,25 |
1,10 |
2,35 |
3,95 |
5,90 |
8,05 |
10,40 |
12,85 |
15,45 |
18,15 |
20,90 |
23,75 |
26,70 |

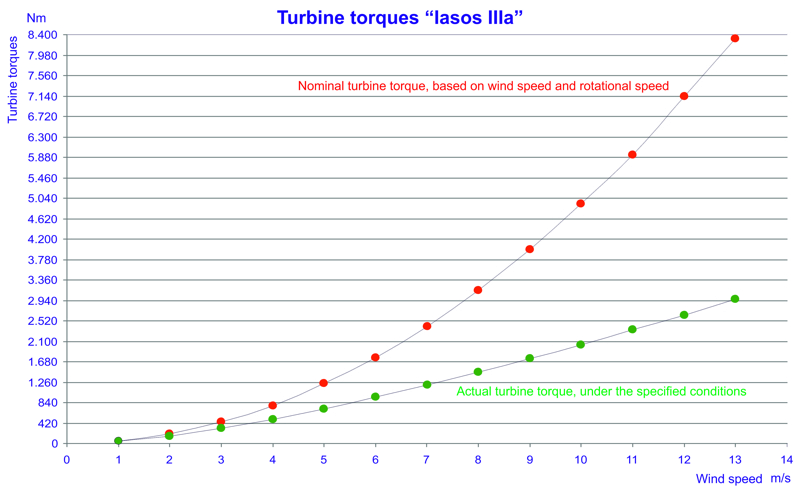

| Nominal turbine torque, with the specific wind speed: |
|||||||||||||
| Nm |
48,83 |
189,61 |
436,84 |
787,13 |
1.234,34 |
1.777,78 |
2.418,74 |
3.159,31 |
4.001,44 |
4.946,33 |
5.994,06 |
7.143,52 |
8.392,60 |
| Nominal turbine torque, based on wind speed and rotational speed: |
|||||||||||||
| Nm |
46,70 |
191,80 |
437,03 |
781,05 |
1.239,57 |
1.763,08 |
2.407,10 |
3.146,83 |
3.979,48 |
4.917,56 |
5.926,66 |
7.124,76 |
8.318,46 |
| Actual turbine torque, under the specified conditions: |
|||||||||||||
| Nm |
41,97 |
143,93 |
307,37 |
499,98 |
715,25 |
949,91 |
1.197,59 |
1.468,17 |
1.743,99 |
2.032,14 |
2.336,89 |
2.642,79 |
2.964,23 |

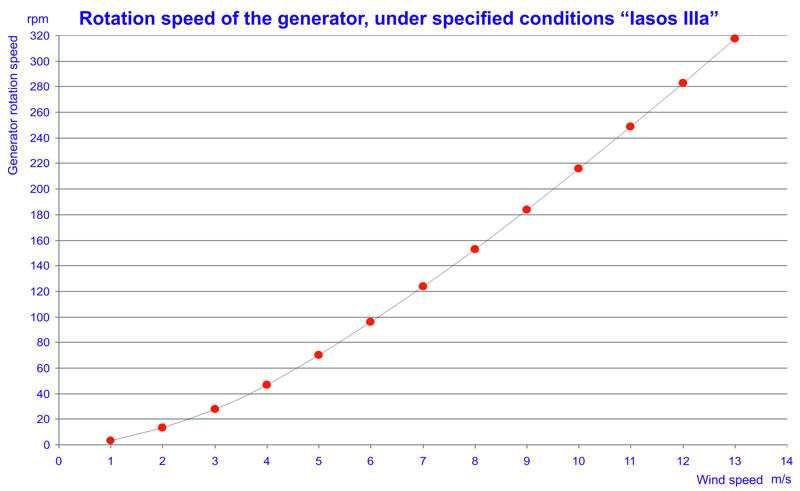

| Average rotation speed of the generator, under the specified conditions: |
|||||||||||||
| rpm |
2,98 |
13,09 |
27,97 |
47,00 |
70,21 |
95,79 |
123,76 |
152,92 |
183,86 |
215,99 |
248,71 |
282,63 |
317,73 |

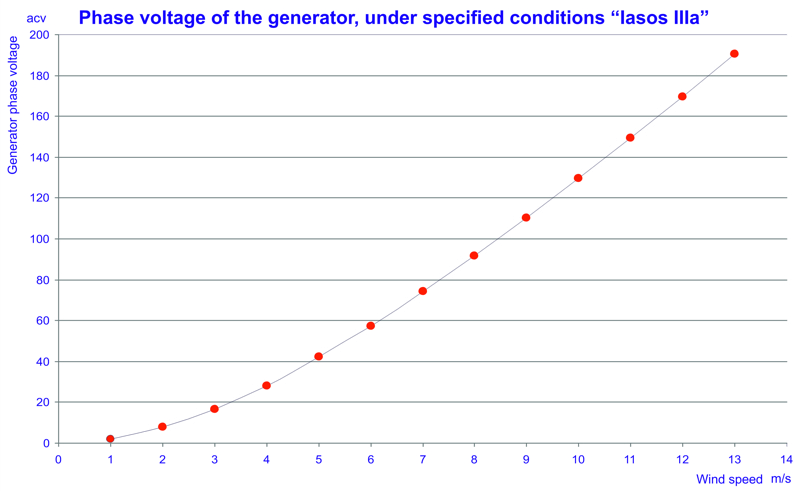

| Phase voltage of the generator, under the specified conditions: |
|||||||||||||
| acv |
1,79 |
7,85 |
16,78 |
28,20 |
42,13 |
57,48 |
74,26 |
91,75 |
110,31 |
129,59 |
149,23 |
169,58 |
190,64 |

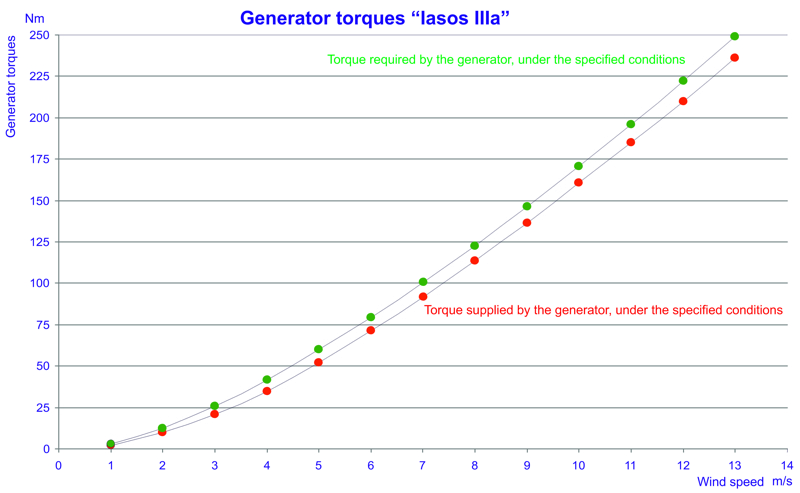

| Torque supplied by the generator, under the specified conditions: |
|||||||||||||
| Nm |
2,21 |
9,73 |
20,78 |
34,93 |
52,17 |
71,19 |
91,97 |
113,63 |
136,62 |
160,50 |
184,82 |
210,02 |
236,11 |
| Torque required by the generator, under the specified conditions: |
|||||||||||||
| Nm |
2,94 |
12,53 |
25,74 |
41,59 |
59,93 |
79,51 |
100,62 |
122,63 |
146,12 |
170,70 |
195,87 |
222,02 |
249,08 |

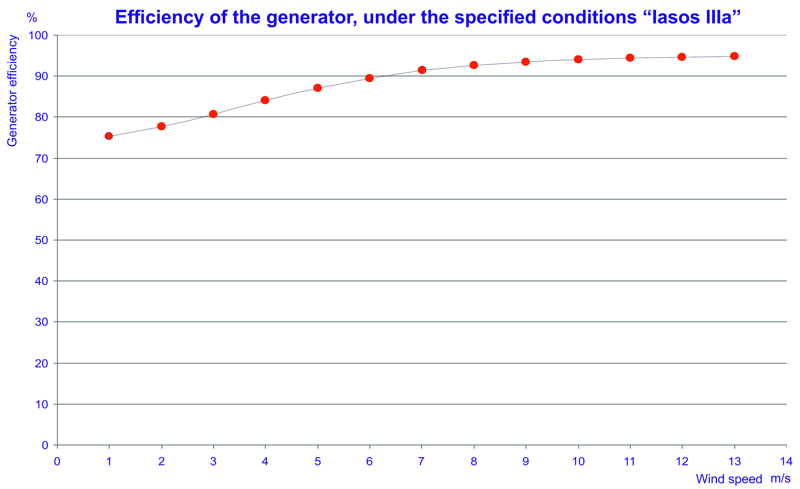

| Efficiency of the generator, under the specified conditions: |
|||||||||||||
| % |
75,26 |
77,66 |
80,74 |
83,98 |
87,06 |
89,53 |
91,4 |
92,66 |
93.5 |
94,02 |
94,36 |
94,6 |
94,79 |

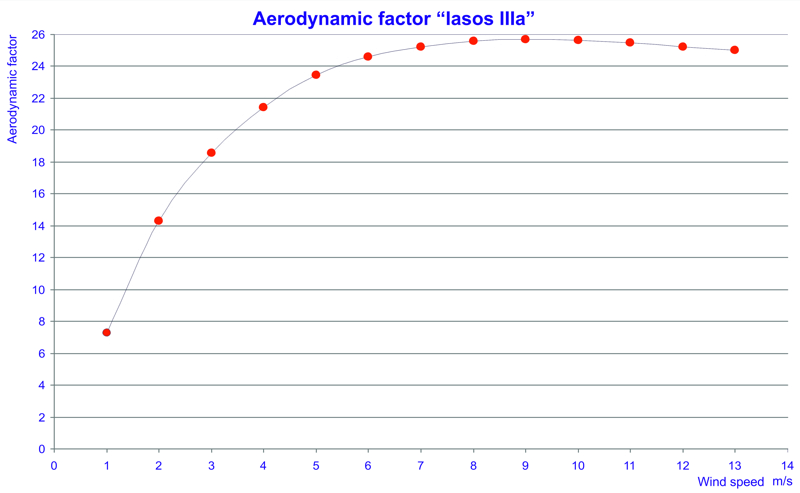

| Aerodynamic factor: |
|||||||||||||
| % |
7,29 |
14,32 |
18,58 |
21,43 |
23,45 |
24,59 |
25,22 |
25,59 |
25,67 |
25,62 |
25,49 |
25,23 |
25,02 |
| Ideal power transmission ratio: |
|||||||||||||
| 1
× |
3,4 |
5,0 |
7,0 |
8,1 |
8,9 |
9,0 |
9,7 |
11,0 |
12,1 |
12,0 |
13,0 |
13,8 |
14,4 |
| Actual power transmission ratio: |
|||||||||||||
| 1
× |
11,9 |
11,9 |
11,9 |
11,9 |
11,9 |
11,9 |
11,9 |
11,9 |
11,9 |
11,9 |
11,9 |
11,9 |
11,9 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
